Brand: Hubbell
HBL25W47AWC

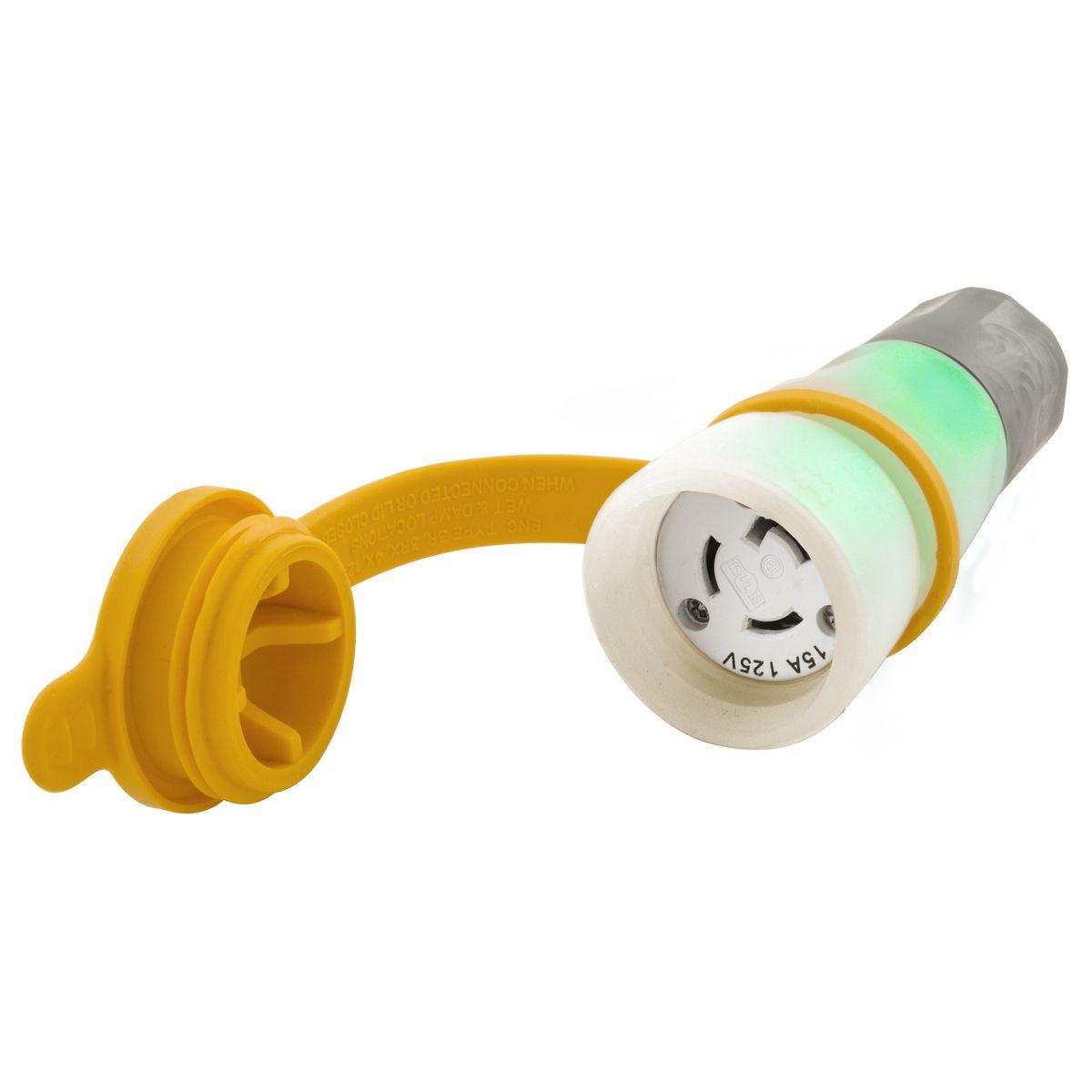

Hubbell HBL25W47AWC Locking Connector
Part Number # HBL25W47AWC
SKU # 2368784
$69.57 / Each
Typical price:$89.85 / Each
Hubbell HBL25W47AWC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL25W47AWC |
| SKU #: | 2368784 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.3 to 0.655, 0.3 to 0.655 in |
| Dimensions: | 1.76 in L x 1.76 in W x 4.03 in H |
| Enclosure: | IP20 |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Grounding Heavy Duty Insulated Watertight |
| Color: | Clear |
| Country of origin: | US |
| Material: | Elastomer |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585580647 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.57 / Each
Typical price:$89.85 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Elastogrip Locking Connector, Female Grounding Heavy Duty Insulated Watertight, 125 V AC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Elastomer, Clear, 1.76 in L x 1.76 in W x 4.03 in H
HBL25W47AWC Item Features
- Power indicating LED also confirms wiring condition of the device
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
HBL25W47AWC Standards
UL 498|CSA C22.2 File No. 42|Federal Specification No. WC596|CSA C22.2 File No. 0.17|UL 94-HB Flammability RatingSKU #2368784Part Number #HBL25W47AWCUNSPSC39121421UPC00783585580647
