Part Number # HBL2600
SKU # 2346766
Image Disclaimers Message
HBL2600

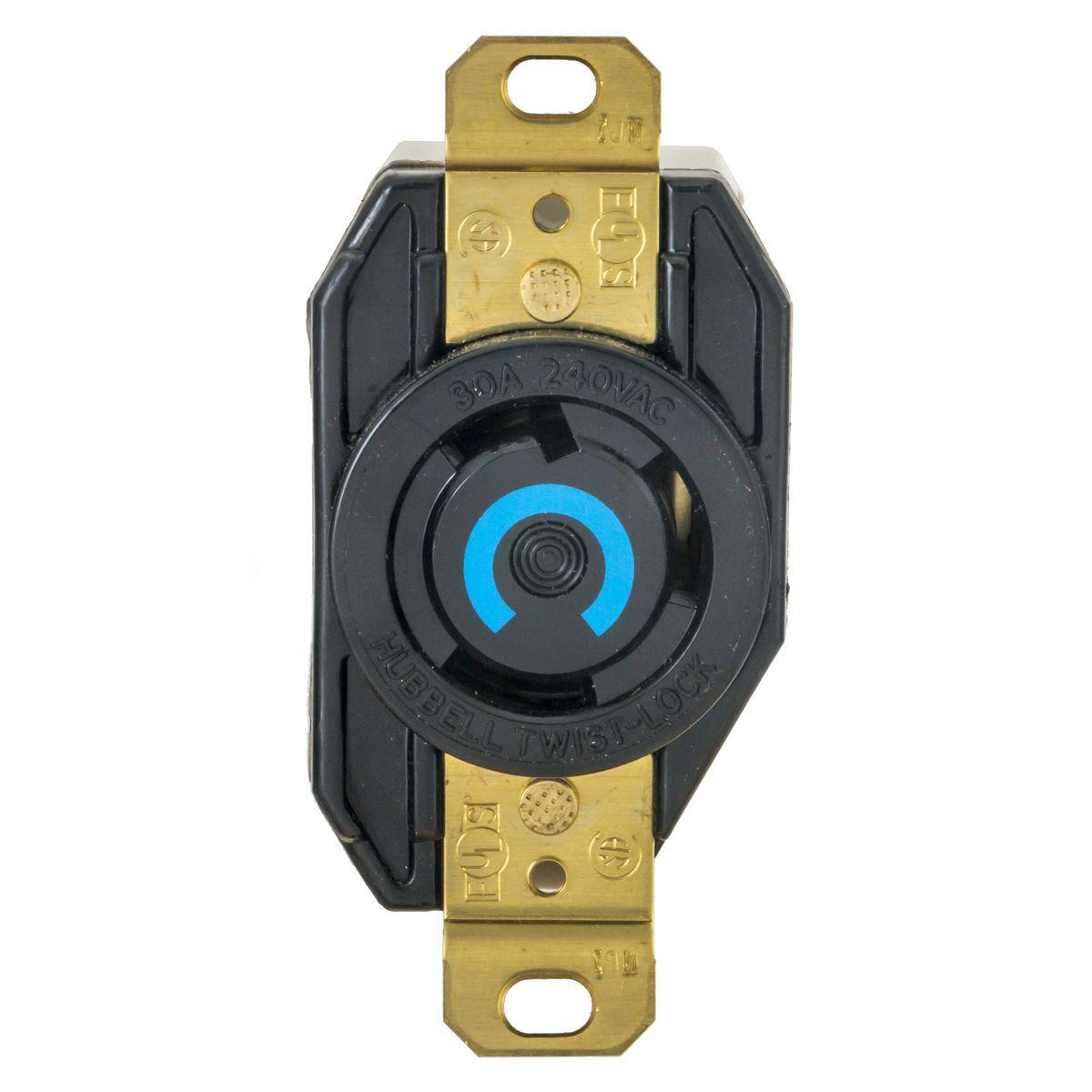

Hubbell HBL2600 Locking Flush Receptacle
Part Number # HBL2600
SKU # 2346766
$52.43 / Each
Typical price:$67.75 / Each
Hubbell HBL2600 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2600 |
| SKU #: | 2346766 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 1.31 in H |
| Enclosure: | IP20 |
| NEMA Rating: | L25-30R, NEMA L25-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Line to Neutral Standard, 1-Phase Grounding Line to Neutral Standard Screw Mount |
| Color: | Black |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585580319 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.43 / Each
Typical price:$67.75 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Flush Receptacle, 1-Phase Grounding Line to Neutral Standard Screw Mount, 240 V AC, 30 A, 2 Pole, 3 Wires, L25-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Black, 1.31 in H
HBL2600 Application
Indoor ApplicationsHBL2600 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2600 Standards
UL 498|CSA C22.2 No. 42|Federal Specification W-C-596|NEMA WD1/WD5SKU #2346766Part Number #HBL2600UNSPSC39121406UPC00783585580319
