Part Number # HBL2610
SKU # 125419
Image Disclaimers Message
Brand: Hubbell
HBL2610

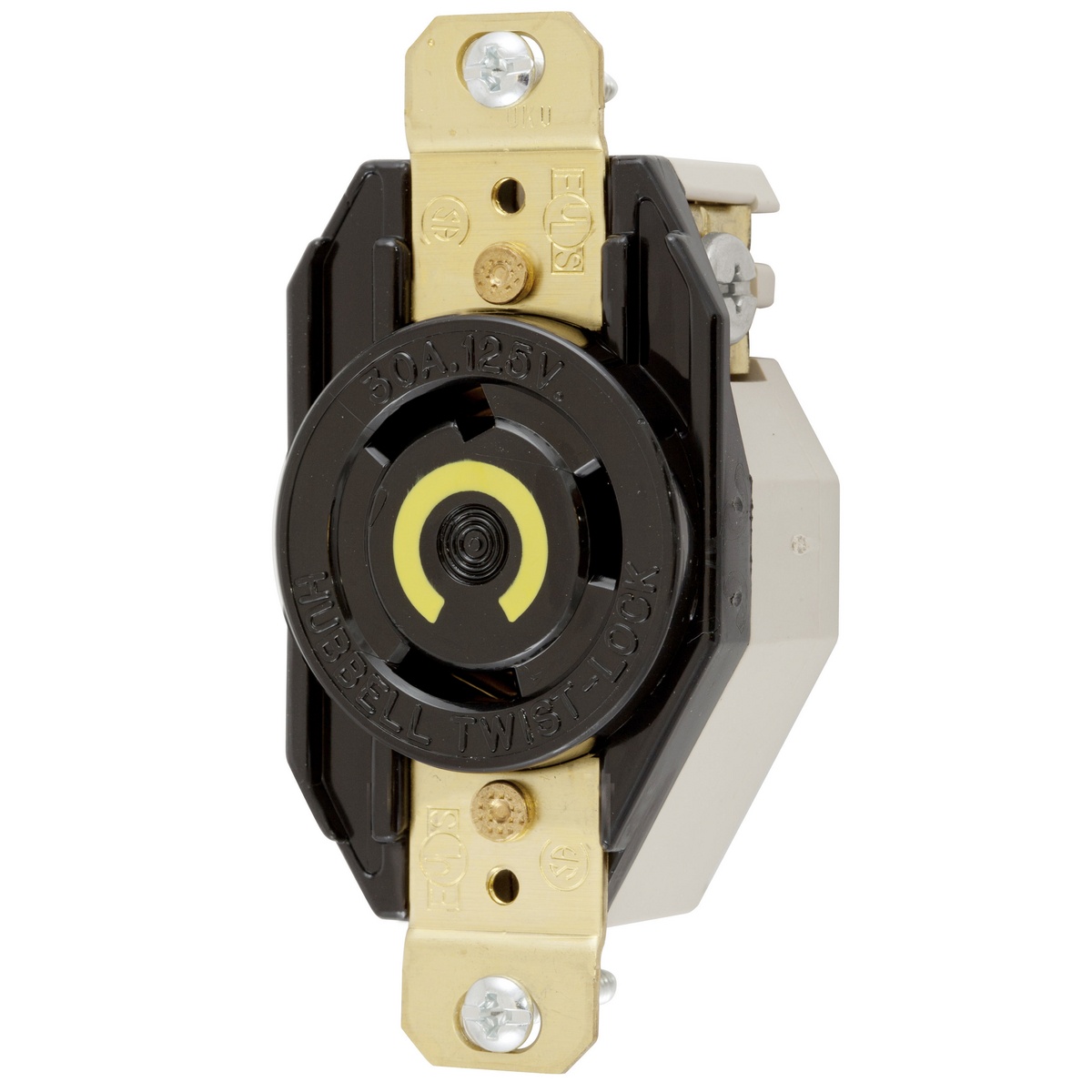

Hubbell HBL2610 Locking Receptacle
Part Number # HBL2610
SKU # 125419
$47.36 / Each
Typical price:$61.20 / Each
Hubbell HBL2610 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2610 |
| SKU #: | 125419 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.28 in H x 1.7 in W x 1.23 in D, 3.28 x 1.7 x 1.31 in |
| Enclosure: | NEMA 4X/12/IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | L5-30R, NEMA L5-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, Flush Mount Grounding Heavy Duty Single |
| Color: | Black |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585235929 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.36 / Each
Typical price:$61.20 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Receptacle, 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.31 in
HBL2610 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2610 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #125419Part Number #HBL2610UNSPSC39121406UPC00783585235929
