Part Number # HBL2611S
SKU # 2222093
Image Disclaimers Message
HBL2611S

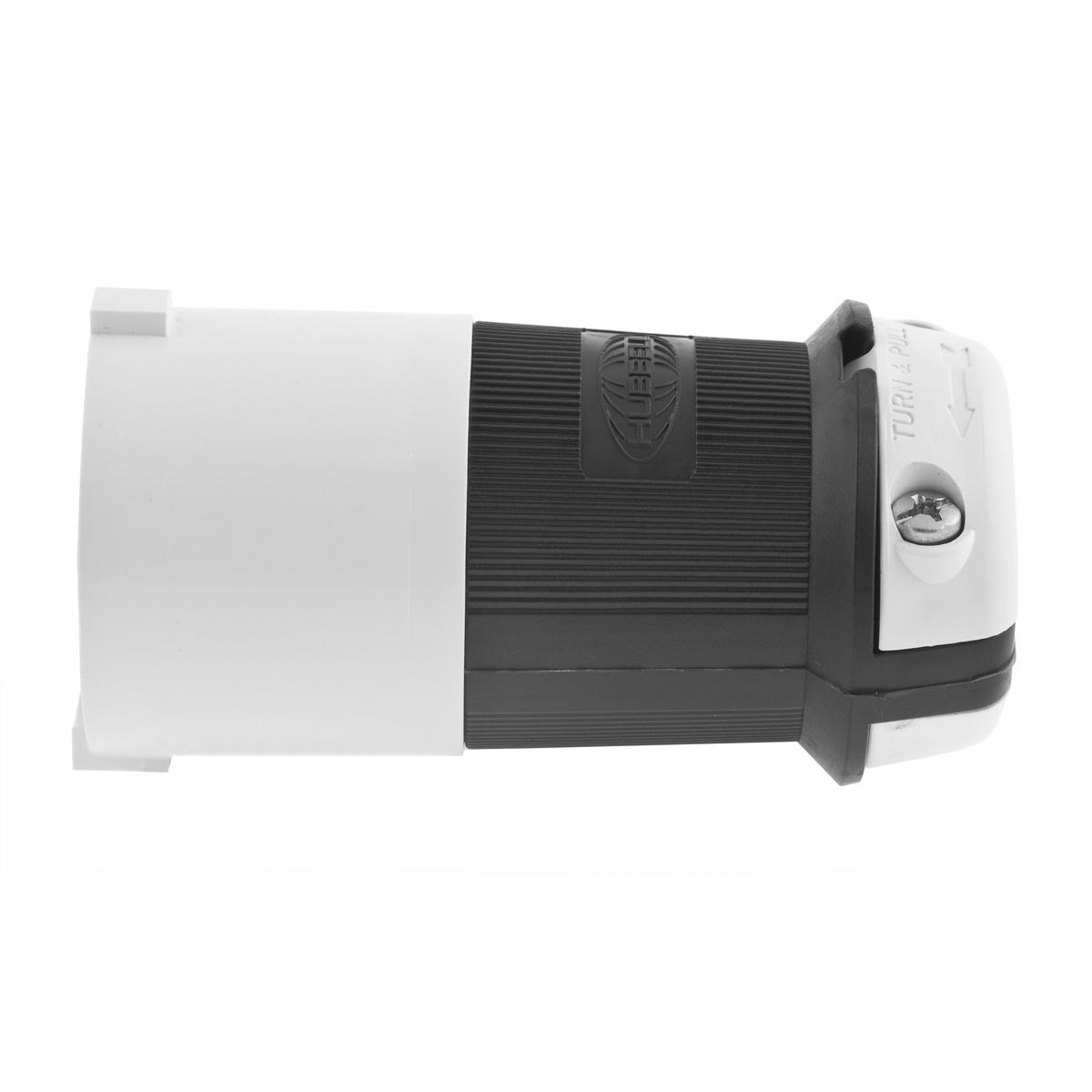

Hubbell HBL2611S Locking Plug
Part Number # HBL2611S
SKU # 2222093
$46.00 / Each
Typical price:$59.45 / Each
Hubbell HBL2611S Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2611S |
| SKU #: | 2222093 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.36 to 0.93, 0.36 to 0.93 in |
| Dimensions: | 2.26 in Dia x 4.21 in L, 2.26 x 2.26 x 4.21 in |
| Enclosure: | IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | L5-30P, NEMA L5-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Standard, 1-Phase Grounding Male Standard Cord Mount |
| Color: | Black/White |
| Country of origin: | US |
| Material: | Brass/Clear Polycarbonate/Composite/Nylon/Polybutylene Terephthalate, Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585234304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.00 / Each
Typical price:$59.45 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.26 x 2.26 x 4.21 in
HBL2611S Application
Dry Locations, Power Connection and Indoor ApplicationsHBL2611S Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2611S Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94HB Flammability Rating|Federal Specification W-C-596SKU #2222093Part Number #HBL2611SUNSPSC39121402UPC00783585234304
