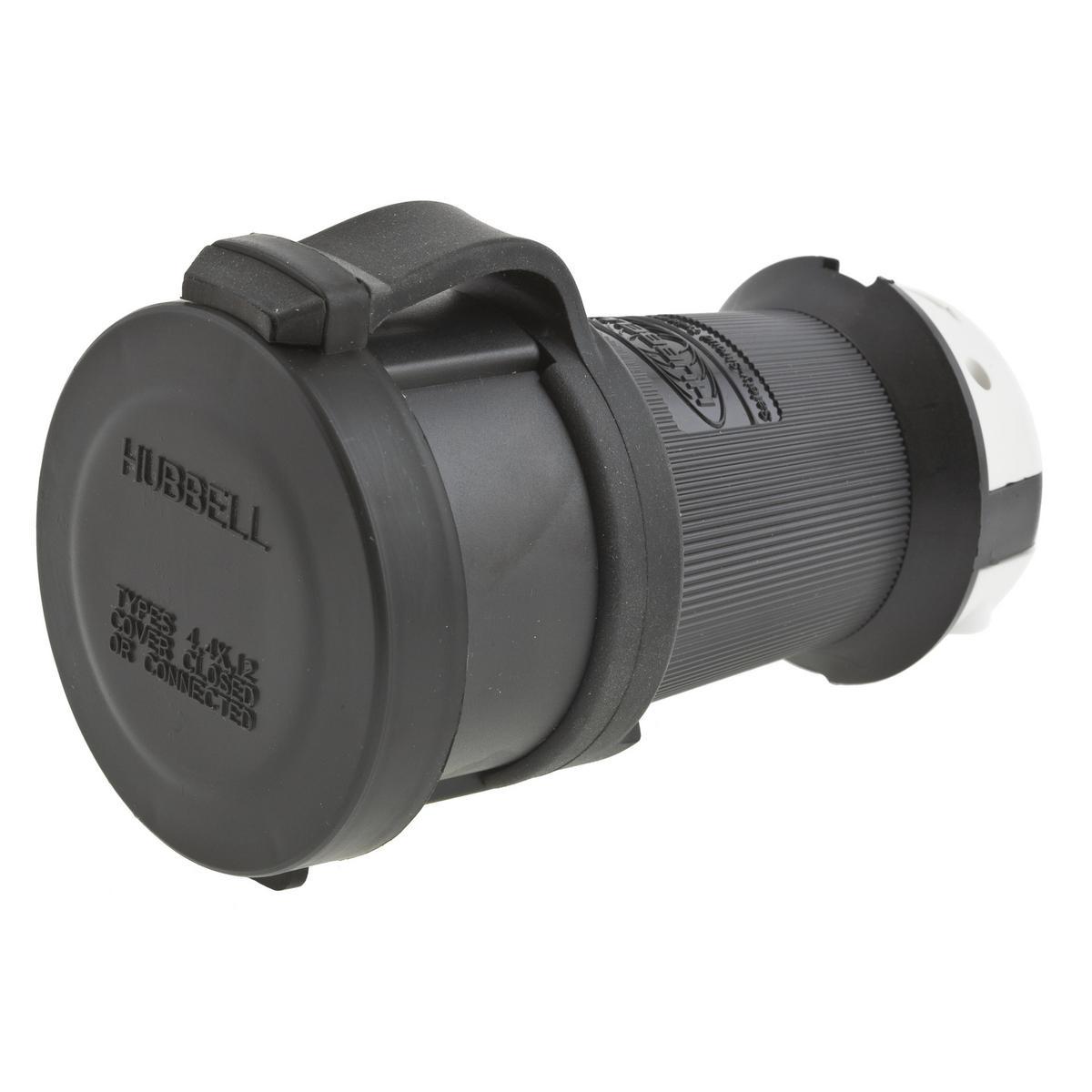

Hubbell HBL2613SW Locking Connector
Image Disclaimers Message
Hubbell HBL2613SW Locking Connector
Hubbell HBL2613SW Locking Connector
Part #:HBL2613SW
SKU #: 214835
Key Features
Part #:HBL2613SW
SKU #: 214835
Brand: Hubbell
Amperage Rating: 30, 30 A
Cord Diameter: 0.36 to 0.93, 0.36 to 0.93 in
Dimensions: 2.57 x 2.57 x 4.4 in, 4.4 in L x 2.75 in W
Enclosure: IP66
NEMA Rating: 4/4X/12/L5-30R, NEMA 4/4X/12/L5-30R
- https://youtu.be/1DnPJu3QNw0
Hubbell HBL2613SW Locking Connector
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Heavy Duty Grounding Cord Mount Watertight, 125 VAC, 30 A, 2 Pole, 3 Wires, 4/4X/12/L5-30R NEMA Rating, Commercial/Industrial Grade, IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.57 x 2.57 x 4.4 in
Additional Description: HUBW-HBL2613SW LKG WT S/SHRD CONN, 30A 125V, L5-30R
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Black PBT housing, White PBT clamps.
