Part Number # HBL2615SW
SKU # 214918
HBL2615SW
Hubbell HBL2615SW Locking Flanged Inlet
Part Number # HBL2615SW
SKU # 214918
Hubbell HBL2615SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2615SW |
| SKU #: | 214918 |
| Dimensions: | 3.75 x 3.75 x 2.27 in |
| NEMA Rating: | L5-30P/WD1/WD5 |
| Type: | 1-Phase Grounding Standard Single Shrouded Watertight Screw Mount |
| UNSPSC: | 39121406 |
| UPC: | 00783585231648 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

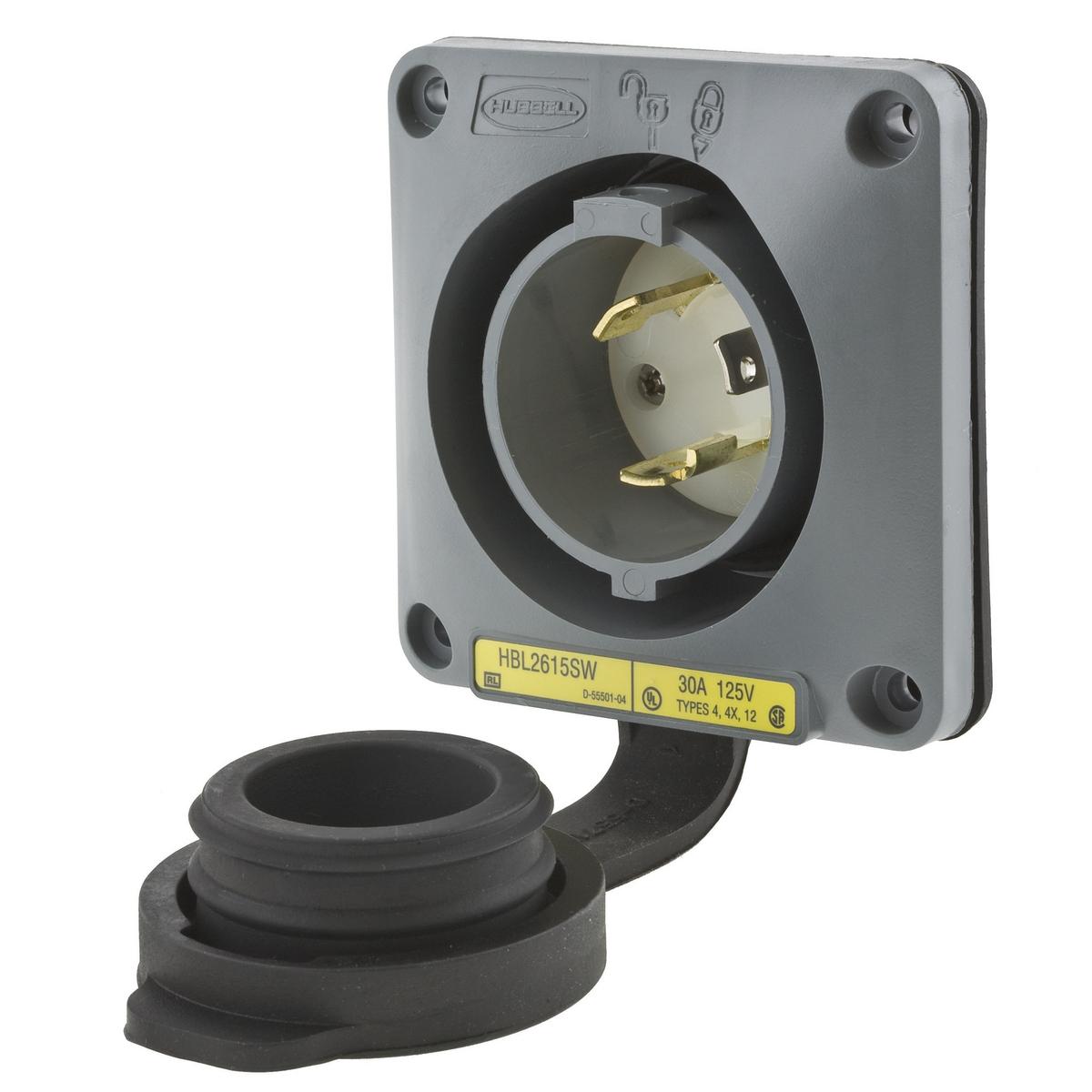

Hubbell HBL2615SW Locking Flanged Inlet
Brand: Hubbell
Part Number: HBL2615SW
Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Flanged Inlet, 1-Phase Grounding Standard Single Shrouded Watertight Screw Mount, 125 VAC, 30 A, 2 Pole, 3 Wires, L5-30P/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray, 3.75 x 3.75 x 2.27 in
Additional Description: HUBW-HBL2615SW LKG WT S/SHRD FLG-INLT, 30A 125V, L5-30P
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray.
HBL2615SW Application
Extra Heavy Duty Industrial ApplicationsHBL2615SW Item Features
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
- Catalogue number and color-coded voltage rating are easily visible even when in use
- https://youtu.be/1DnPJu3QNw0
HBL2615SW Standards
NEMA WD1/WD5|CSA C22.2 No. 42/0.17|Federal Specification W-C-596|UL94 V-0 Flammability Rating|RoHS Compliant|CSA 22.2 No. 0.6|UL 498SKU #214918Part Number #HBL2615SWUNSPSC39121406UPC00783585231648
Image provided may only be a representation of final product and may include optional equipment
