Part Number # HBL2620SW
SKU # 2268316
HBL2620SW

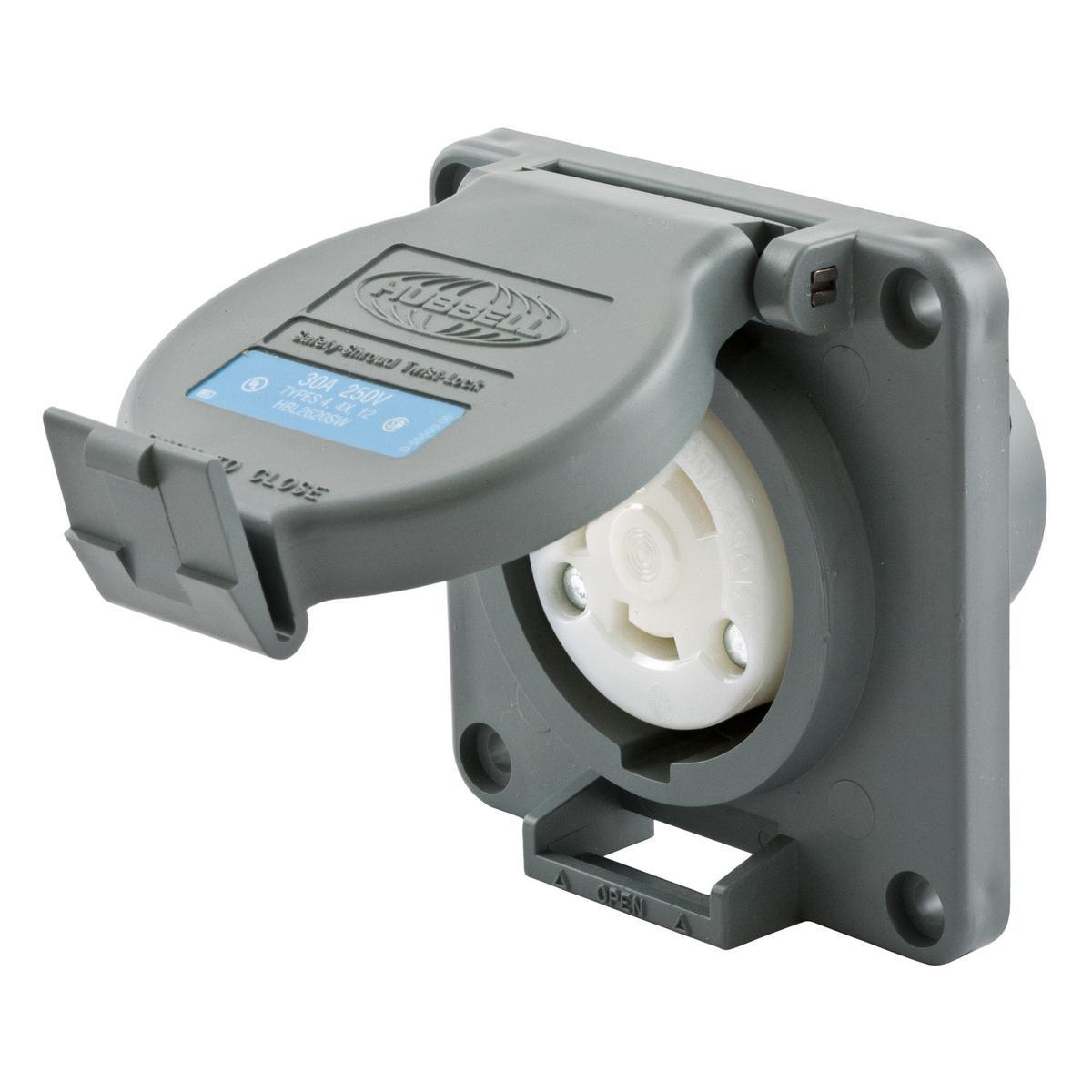

Hubbell HBL2620SW Locking Receptacle
Part Number # HBL2620SW
SKU # 2268316
Hubbell HBL2620SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2620SW |
| SKU #: | 2268316 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.75 in L x 3.75 in W x 2.69 in D, 3.75 x 3.75 x 2.69 in |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | L6-30R, NEMA L6-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Heavy Duty Watertight Single Screw Mount, Grounding Heavy Duty Safety Shroud Watertight Single |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Valox, Valox™ |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585231662 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2620SW Locking Receptacle
Brand: Hubbell
Part Number: HBL2620SW
Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Receptacle, 1-Phase Grounding Heavy Duty Watertight Single Screw Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Valox , Gray/White, 3.75 x 3.75 x 2.69 in
Additional Description: HUBW-HBL2620SW LKG WT S/SHRD RCPT, 30A 250V, L6-30R,GY
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30R, Screw Terminal, PBT housing and flange, Gray
HBL2620SW Includes
Locking CoverHBL2620SW Item Features
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2620SW Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #2268316Part Number #HBL2620SWUNSPSC39121406UPC00783585231662
Image provided may only be a representation of final product and may include optional equipment
