Part Number # HBL2621SW
SKU # 2159761
Image Disclaimers Message
HBL2621SW

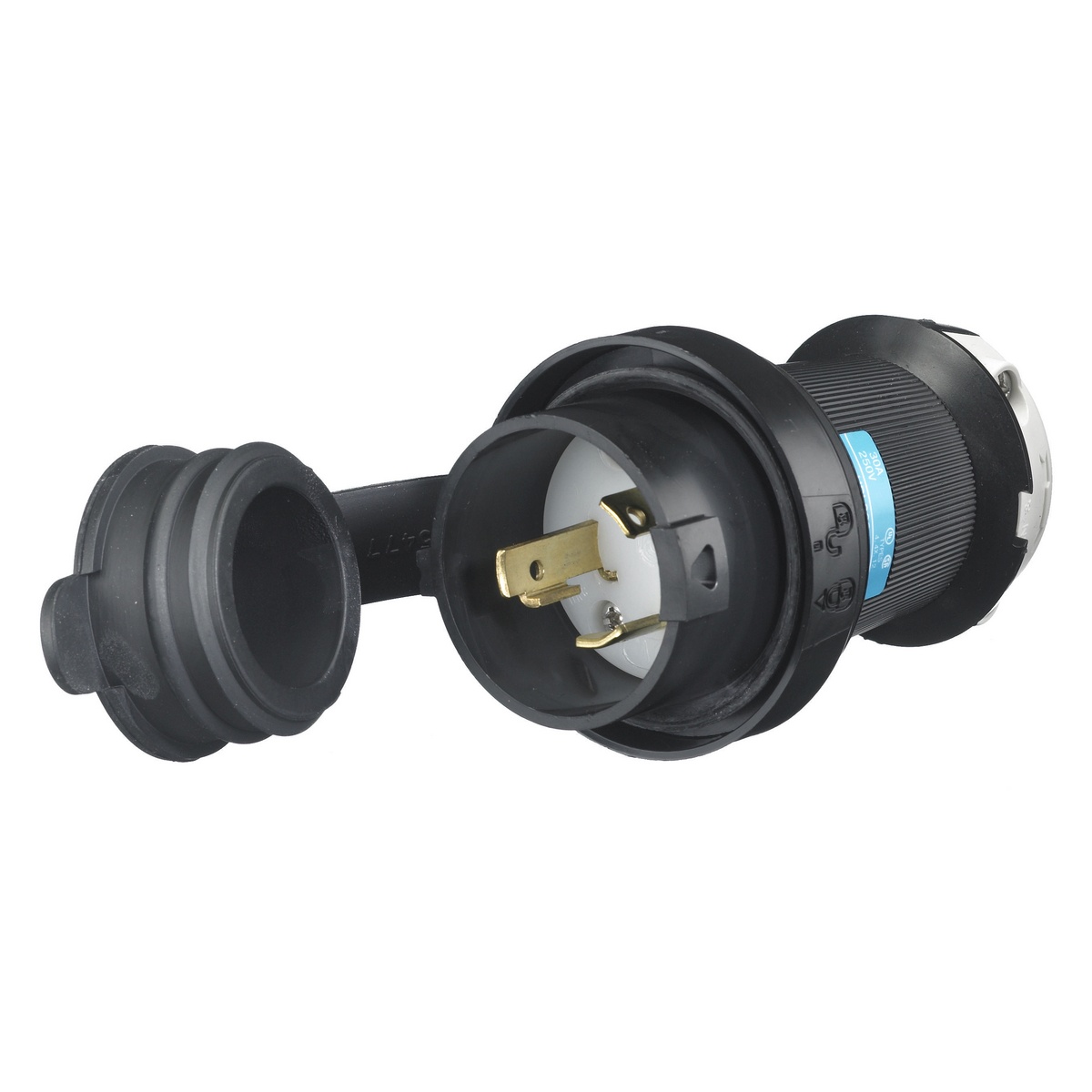

Hubbell HBL2621SW Locking Plug
Part Number # HBL2621SW
SKU # 2159761
$150.00 / Each
Typical price:$194.00 / Each
Hubbell HBL2621SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2621SW |
| SKU #: | 2159761 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.36 to 0.93, 0.36 to 0.93 in |
| Dimensions: | 2.77 x 2.77 x 4.4 in, 2.94 in Dia x 4.4 in L |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | L6-30P, NEMA L6-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Watertight Cord Mount, Grounding Safety Shroud Watertight |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585231686 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$150.00 / Each
Typical price:$194.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Plug, 1-Phase Grounding Watertight Cord Mount, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.77 x 2.77 x 4.4 in
HBL2621SW Application
Power Connection ApplicationsHBL2621SW Item Features
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2621SW Standards
UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS CompliantSKU #2159761Part Number #HBL2621SWUNSPSC39121402UPC00783585231686
