Part Number # HBL2640
SKU # 135800
Image Disclaimers Message
Brand: Hubbell
HBL2640

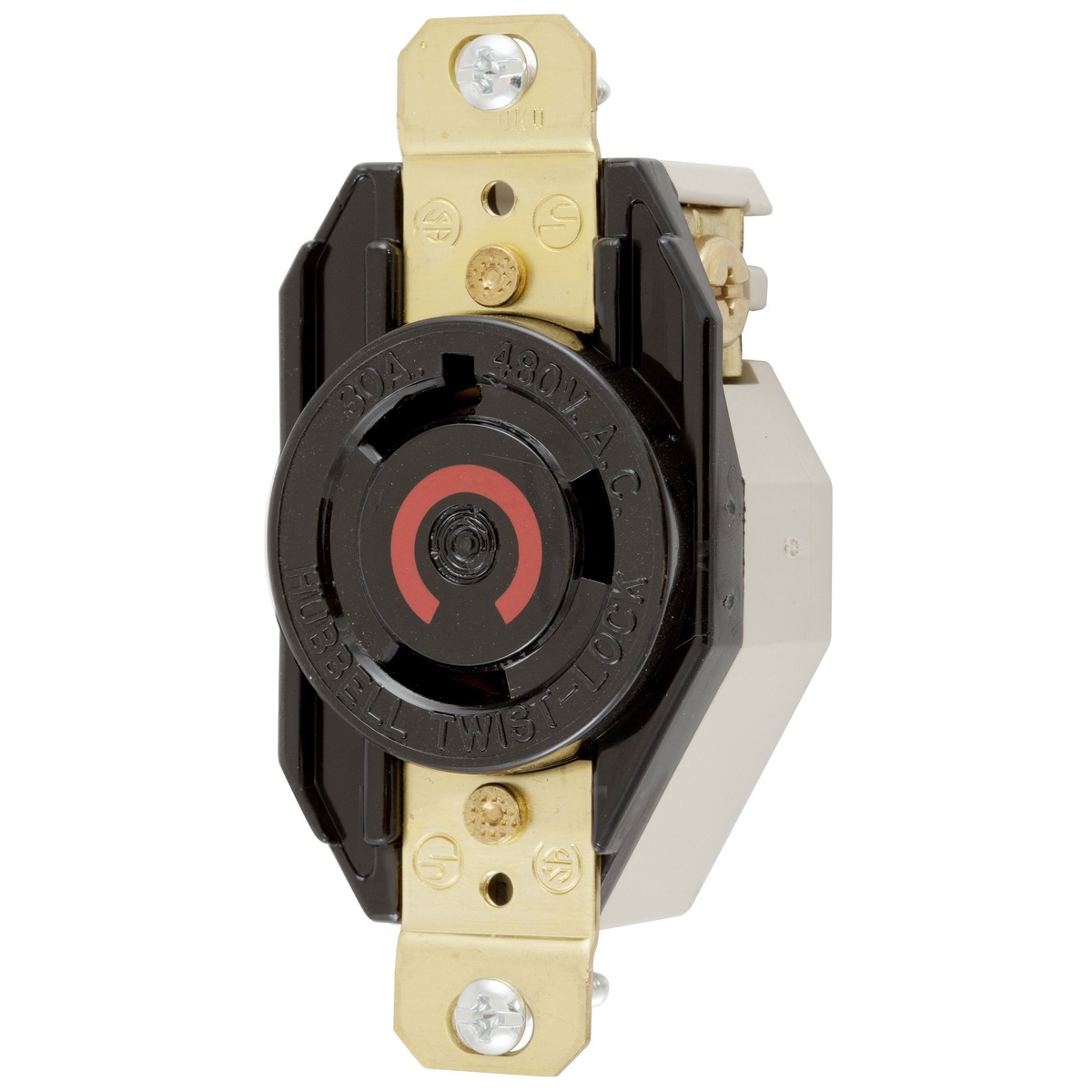

Hubbell HBL2640 Locking Receptacle
Part Number # HBL2640
SKU # 135800
$52.43 / Each
Typical price:$80.00 / Each
Hubbell HBL2640 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2640 |
| SKU #: | 135800 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.28 in H x 1.7 in W x 1.23 in D, 3.28 x 1.7 x 1.31 in |
| Horsepower: | 5, 5 hp |
| NEMA Rating: | L8-30R, NEMA L8-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Heavy Duty Single Screw Mount, Grounding Heavy Duty Single |
| Color: | Black |
| Country of origin: | PR |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585236063 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.43 / Each
Typical price:$80.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Heavy Duty Single Screw Mount, 480 V AC, 30 A, 5 hp, 2 Pole, 3 Wires, L8-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.31 in
HBL2640 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2640 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #135800Part Number #HBL2640UNSPSC39121406UPC00783585236063
