Part Number # HBL26418
SKU # 18570
Image Disclaimers Message
Brand: Hubbell
HBL26418

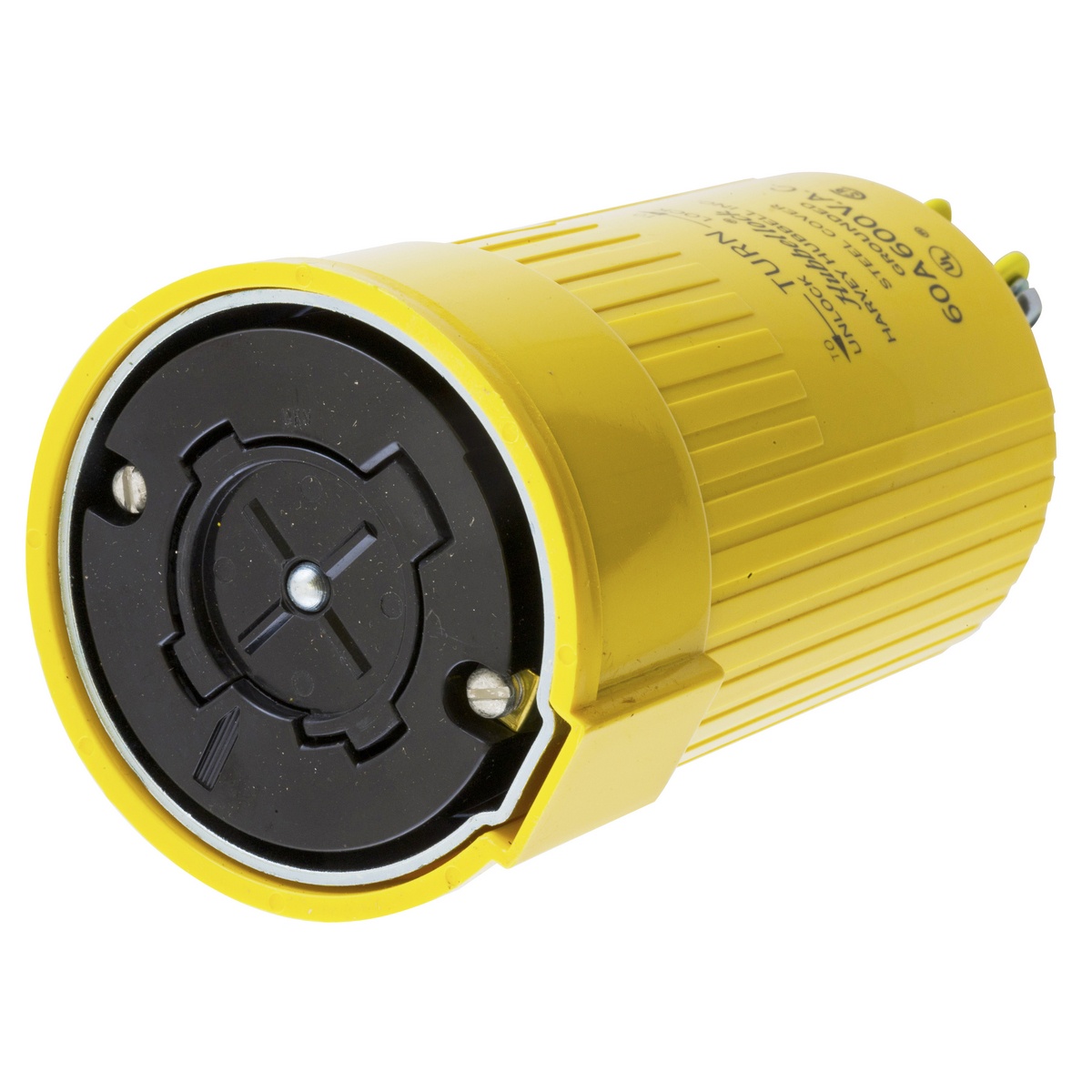

Hubbell HBL26418 Female Connector
Part Number # HBL26418
SKU # 18570
$752.86 / Each
Typical price:$973.00 / Each
Hubbell HBL26418 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL26418 |
| SKU #: | 18570 |
| Amperage Rating: | 60 A |
| Cord Diameter: | 0.92 to 1.45, 0.92 to 1.45 in |
| Dimensions: | 3.19 x 1.09 x 5.44 in, 5.44 in L x 3.19 in W |
| Enclosure: | IP30 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Heavy Duty Isolated Grounding Standard Sized, Heavy Duty Isolated Grounding Standard Sized Cord Mount |
| Color: | Yellow |
| Country of origin: | US |
| Material: | Steel |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585017310 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$752.86 / Each
Typical price:$973.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Hubbellock Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount, 600 V AC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP30 Enclosure, 0.92 to 1.45 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Steel, Yellow, 3.19 x 1.09 x 5.44 in
HBL26418 Application
Indoor ApplicationsHBL26418 Item Features
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
- Insulated, color coded metallic housing enhances safety and abuse resistance
HBL26418 Standards
UL 498|CSA C22.2 No. 42SKU #18570Part Number #HBL26418UNSPSC39121421UPC00783585017310
