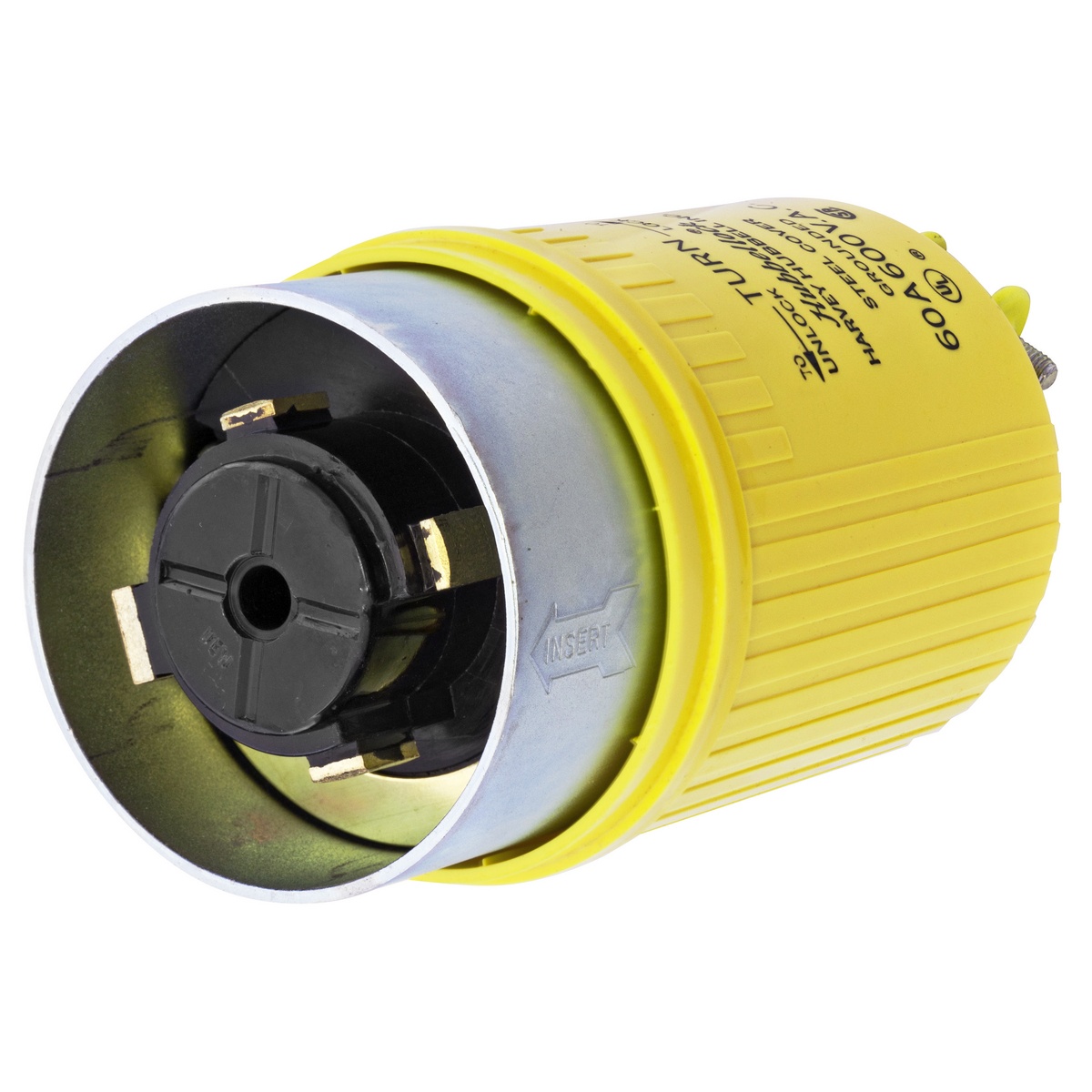

Hubbell HBL26419 Locking Plug
Hubbell HBL26419 Locking Plug
Part #:HBL26419
SKU #: 18571
Key Features
Part #:HBL26419
SKU #: 18571
Brand: Hubbell
Amperage Rating: 60 A
Cord Diameter: 0.875 to 1.48, 0.875 to 1.48 in
Dimensions: 3.03 in Dia x 4.81 in L, 3.03 x 3.03 x 5.9, 3.03 x 3.03 x 5.9 in
Enclosure: IP30
Number of Poles: 3
- Withstands 2000 VAC dielectric voltage
- Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
- Indoor dry unless protected by additional means
- Molded-in male contacts are resistant to damage and provide a consistently positive connection
- Insulated, color coded metallic housing enhances safety and abuse resistance
- Auto ejects improperly made connection
- Non-NEMA rating
- 8 to 4 AWG stranded copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498
- Black thermoset nylon blade holder and neoprene sleeve cord clamp
Hubbell HBL26419 Locking Plug
Wiring Device-Kellems Hubbellock Locking Plug, 3-Phase Heavy Duty Grounding Cord Mount, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP30 Enclosure, 0.875 to 1.48 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 3.03 x 3.03 x 5.9 in
Additional Description: HUBW-HBL26419 H/LOCK PLUG, 3P4W, 60A 600V PLUG
Catalog Description: Locking Devices, Hubbellock®, Industrial, Male Plug, 60A 600V, 3-Pole 4-Wire Grounding Hubbellock® Plug, Black phenolic interior with Yellow thermoplastic sleeve over steel housing, Non NEMA, Screw Terminal
