Specifications
Brand: Hubbell
Amperage Rating: 30 A
Dimensions: 3.28 in L x 1.7 in W x 1.468 in H
Enclosure: IP20
NEMA Rating: NEMA L14-30R
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Back Wire
Type: Single Flush
Voltage Rating: 125/250 VAC
Color: Black
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585788548

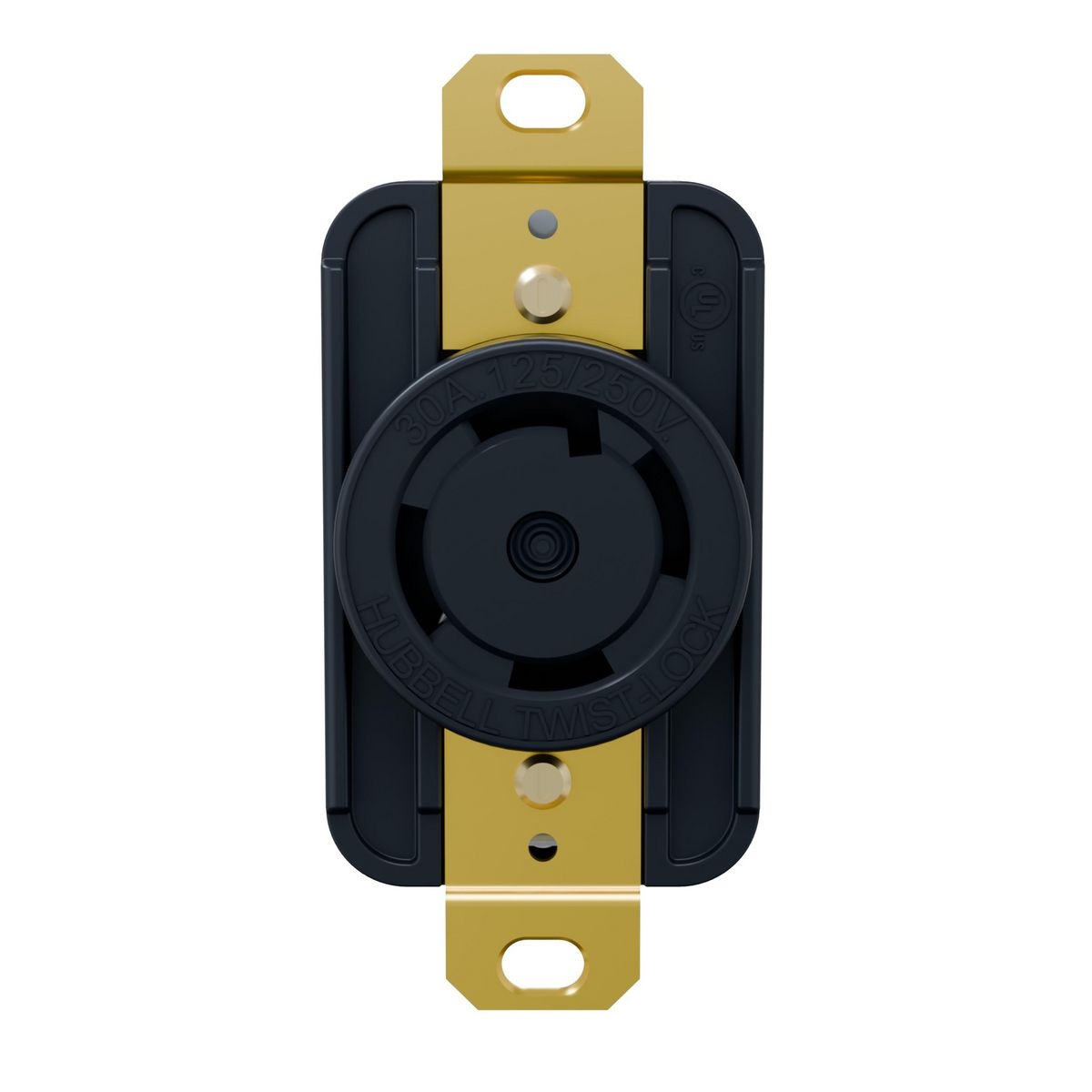

Hubbell HBL2710ST Twist-Lock Locking Receptacle
Wiring Device-Kellems Twist-Lock Locking Receptacle, Single Flush, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30R NEMA Rating, IP20 Enclosure, -40 to 75 deg C, Back Wire Terminal, Nylon, Black, 3.28 in L x 1.7 in W x 1.468 in H Dimensions
Additional Description: HUBW-HBL2710ST LKG RCPT, 30A 125/250V, L14-30R, BK, ST BK, SP
Catalog Description: EdgeConnect™ Twist-Lock® Receptacle, 30A 125/250V, L14-30R, BK, with Spring Termination
Item Features
Item FeaturesCSA C22.2 File No. 0.17|CSA C22.2 File No. 42|UL 498|UL 94
