HBL2720

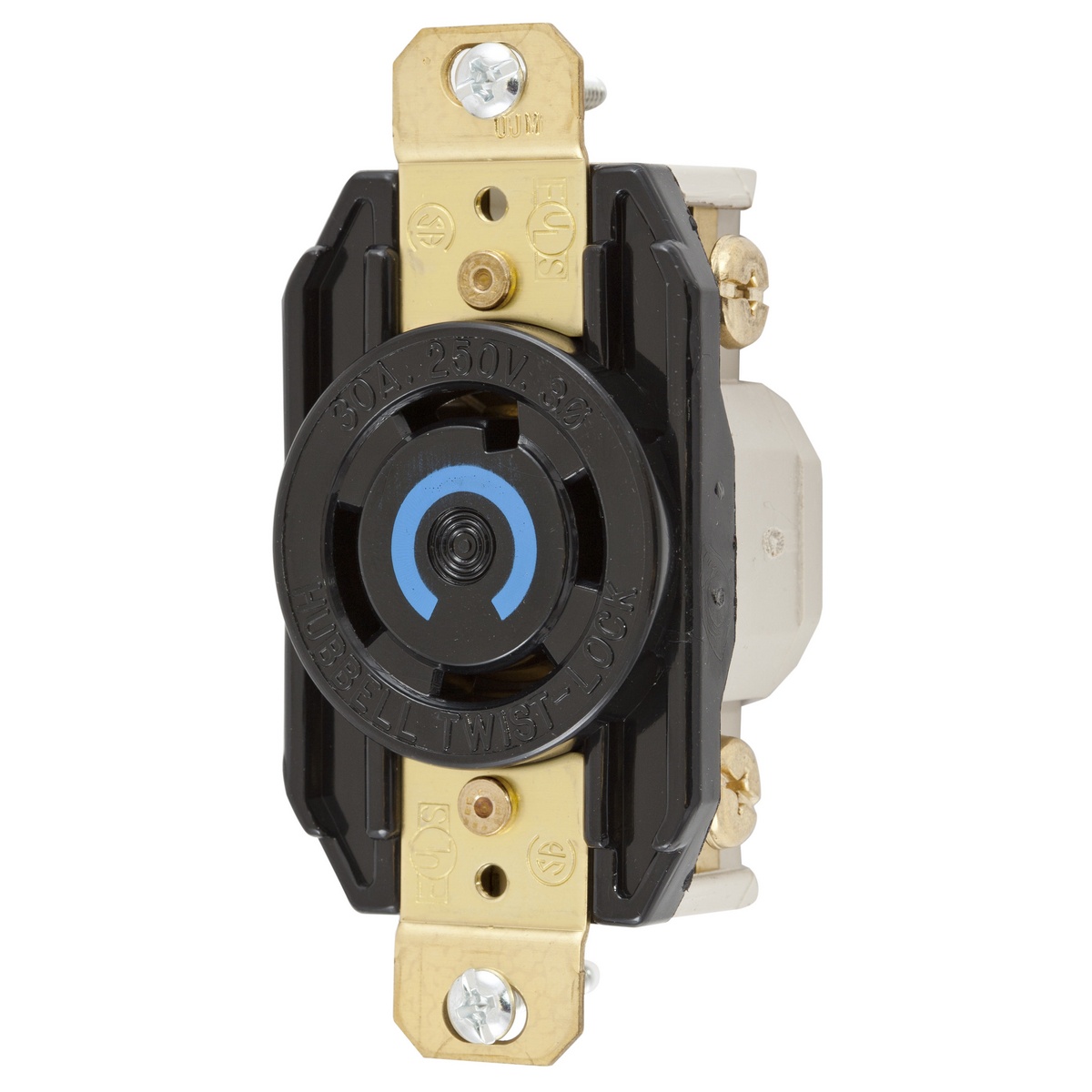

Hubbell HBL2720 Locking Receptacle
Part Number # HBL2720
SKU # 135843
$78.36 / Each
Typical price:$102.00 / Each
Hubbell HBL2720 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2720 |
| SKU #: | 135843 |
| Dimensions: | 3.28 x 1.7 x 1.31 in |
| Enclosure: | NEMA 4X/12/IP20 |
| NEMA Rating: | L15-30R |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | 3-Phase Flush Mount Grounding Heavy Duty Single Screw Mount |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585236131 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$78.36 / Each
Typical price:$102.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL2720, Locking Receptacle, 3-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, Series: HBL, 250 V AC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.31 in Dimensions
HBL2720 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2720 Standards
UL 498|Federal Specification W-C-596|NEMA WD1/WD5|RoHS Compliant|UL94 Flammability Rating|CSA C22.2 No. 42/0.6SKU #135843Part Number #HBL2720UNSPSC39121406UPC00783585236131
Image provided may only be a representation of final product and may include optional equipment
