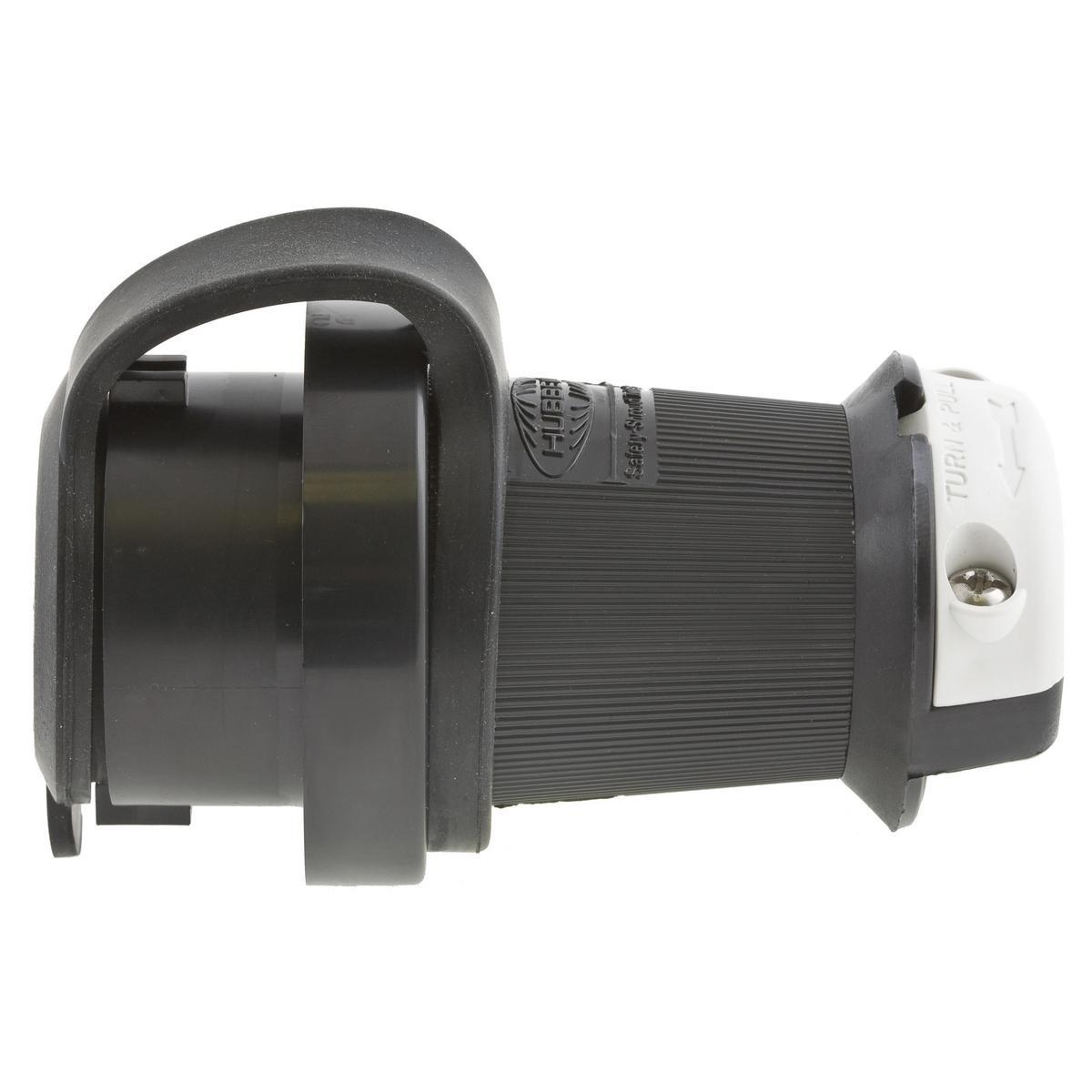

Hubbell HBL2731SW Locking Plug
Part Number # HBL2731SW
SKU # 18580
$164.29 / Each
Hubbell HBL2731SW Key Features
Brand: Hubbell
Part Number # HBL2731SW
SKU #18580
Amperage Rating: 30, 30 A
Cord Diameter: 0.35 to 1.15, 0.35 to 1.15 in
Dimensions: 2.94 in Dia x 4.4 in L, 2.94 x 2.94 x 4.40, 2.94 x 2.94 x 4.40 in
Enclosure: NEMA 4/4X/12/IP66
Horsepower: 10, 10 hp
NEMA Rating: L16-30P, NEMA L16-30R
Number of Poles: 3
Number of Wires: 4
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 3-Phase Grounding Male Standard Watertight, 3-Phase Grounding Male Standard Watertight Cord Mount
Voltage Rating: 480, 480 VAC
Color: Black/White
Country of origin: PR, US
Material: Brass/Clear Polycarbonate/Composite/Polybutylene Terephthalate, Composite
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585231921
$164.29 / Each
Hubbell HBL2731SW Locking Plug
Brand: Hubbell
Part Number: HBL2731SW
Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Plug, 3-Phase Grounding Male Standard Watertight Cord Mount, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30P NEMA Rating, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in
Additional Description: HUBW-HBL2731SW LKG WT S/SHRD PLG, 30A3P 480V, L16-30P
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30P, Screw Terminal, Black PBT housing, White PBT clamps.
HBL2731SW Application
Power Connection ApplicationsHBL2731SW Item Features
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2731SW Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 V-0 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5SKU #18580Part Number #HBL2731SWUNSPSC39121402UPC00783585231921
