Brand: Hubbell
HBL2733SW

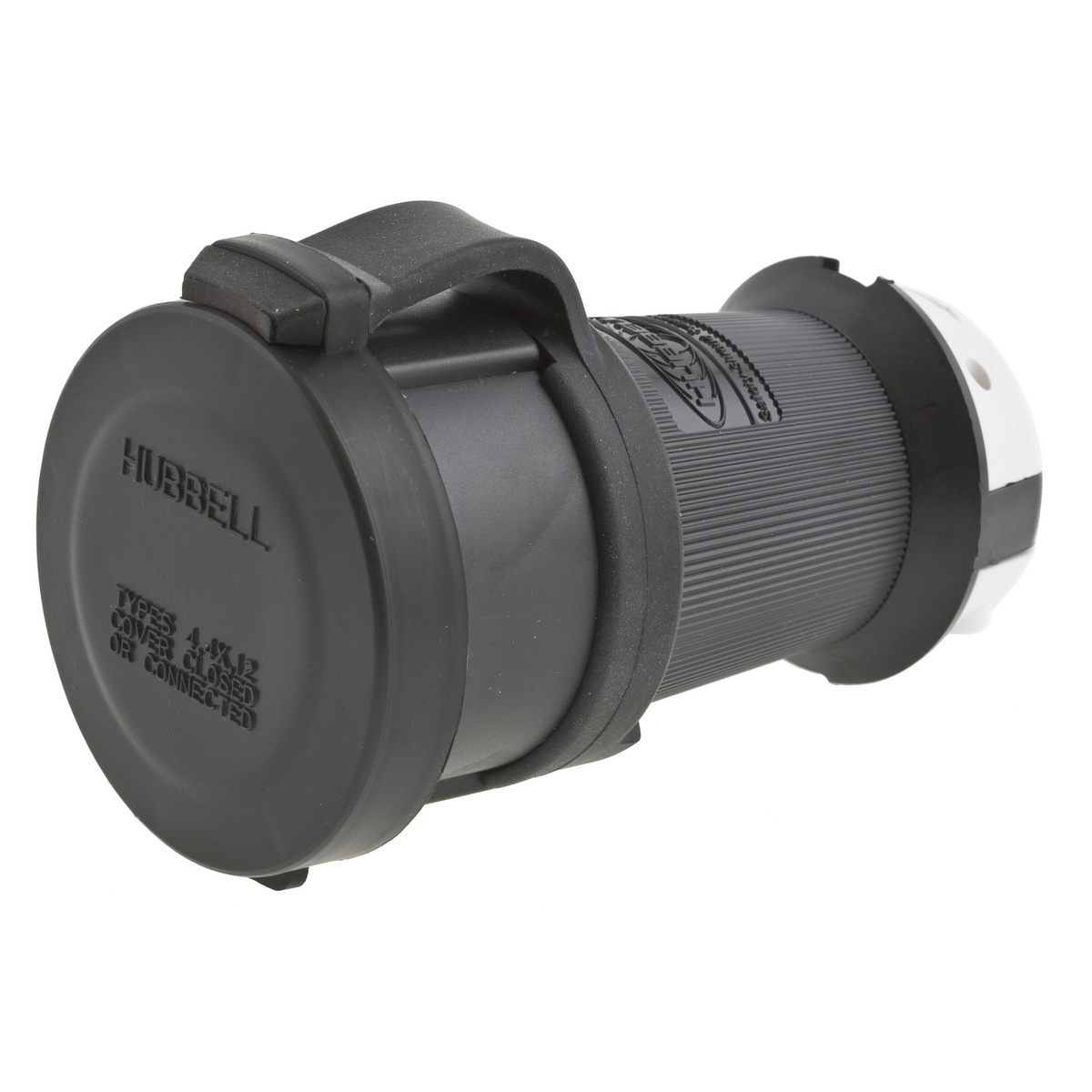

Hubbell HBL2733SW Connector
Part Number # HBL2733SW
SKU # 217622
$172.86 / Each
Typical price:$224.00 / Each
Hubbell HBL2733SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2733SW |
| SKU #: | 217622 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.75 in Dia x 4.4 in L, 2.75 x 2.75 x 4.4 in |
| Enclosure: | IP66 |
| Horsepower: | 10, 10 hp |
| NEMA Rating: | L16-30R, NEMA L16-30R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Grounding Standard Watertight, 3-Phase Grounding Standard Watertight Cord Mount |
| Color: | Black/White |
| Country of origin: | PR |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585231945 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$172.86 / Each
Typical price:$224.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Connector, 3-Phase Grounding Standard Watertight Cord Mount, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in
HBL2733SW Application
Heavy Duty Industrial ApplicationsHBL2733SW Item Features
- Superior cord grip design protects terminations from excess strain
- https://youtu.be/1DnPJu3QNw0
HBL2733SW Standards
RoHS Compliant|CSA C22.2 No. 42/0.6|Federal Specification W-C-596|NEMA WD1/WD5|UL 498SKU #217622Part Number #HBL2733SWUNSPSC39121421UPC00783585231945
