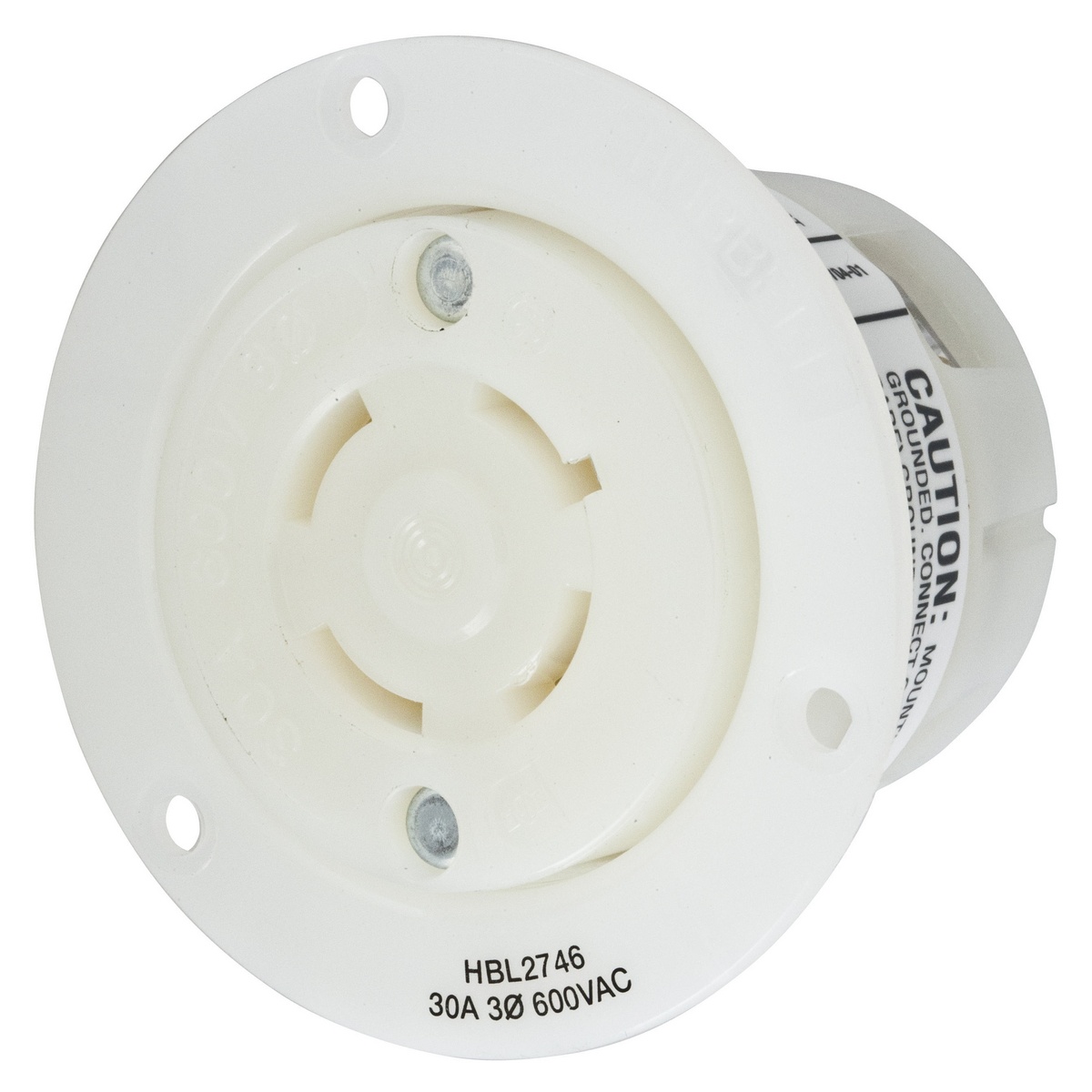

Hubbell HBL2746 Locking Receptacle
Hubbell HBL2746 Locking Receptacle
Part #:HBL2746
SKU #: 251293
Key Features
Part #:HBL2746
SKU #: 251293
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.06 in Dia x 2.27 in L, 3.06 x 3.06 x 2.27 in
Enclosure: NEMA 4X/12/IP20
Horsepower: 10, 10 hp
NEMA Rating: L17-30R, NEMA L17-30R
- Withstands 2000 VAC minimum dielectric voltage
- Clear polycarbonate terminal retainer
- Brass blade, terminal screw and ground screw
- 0.08 in steel nickel plated terminal clamp
- Natural white nylon body contact carrier, flanged casing
- 12 to 8 AWG wire size
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- 10 AWG terminal accommodation
- Impact resistant thermoplastic construction
- Back wired terminations for ease of installation
- #10-32 multiple drive terminal screw (Phillips/slotted/Robertson)
- https://youtu.be/1DnPJu3QNw0
Hubbell HBL2746 Locking Receptacle
Wiring Device-Kellems Twist-Lock Insulgrip Locking Receptacle, 3-Phase Flanged Grounding Single Screw Mount, 600 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, L17-30R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 3.06 x 3.06 x 2.27 in
Additional Description: HUBW-HBL2746 LKG FLG-RCPT, 30A 3P 600V, L17-30R, WH L17-30R
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, White
