Part #:HBL2760
SKU #: 2288214
$75.57/EA
Key Features
Part #:HBL2760
SKU #: 2288214
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 1.313 in W, 3.28 in L x 1.7 in W x 1.34 in H
Enclosure: IP20, NEMA 4X/12/IP20
Horsepower: 10, 10 hp
NEMA Rating: NEMA L19-20R, NEMA L19-30R
$75.57/EA
- High impact, abuse resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- 4-wire non-grounding
- Stainless steel auto ground clip
- 0.04 in brass back plate
- Black nylon top cover
- 0.05 in brass bridge mounting strap
- Brass rivet
- Nylon polyester base
- 0.04 in brass ground contact
- Zinc plated steel mounting screws
- 3-phase, star connection 277/480 VAC
- 0.04 in brass contact spring material
- 20 A 12 AWG terminal accommodation
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- https://youtu.be/1DnPJu3QNw0
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 1.313 in W, 3.28 in L x 1.7 in W x 1.34 in H
Enclosure: IP20, NEMA 4X/12/IP20
Horsepower: 10, 10 hp
NEMA Rating: NEMA L19-20R, NEMA L19-30R
Number of Poles: 4
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back/Side Wired/Screw, Screw
Type: 3-Phase Flush Mount Heavy Duty Non-Grounding Standard Single, Flush Mount Standard Single
Voltage Rating: 277/480, 277/480 VAC, 277Y/480 VAC
Color: Black
Material: Composite/Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585236216

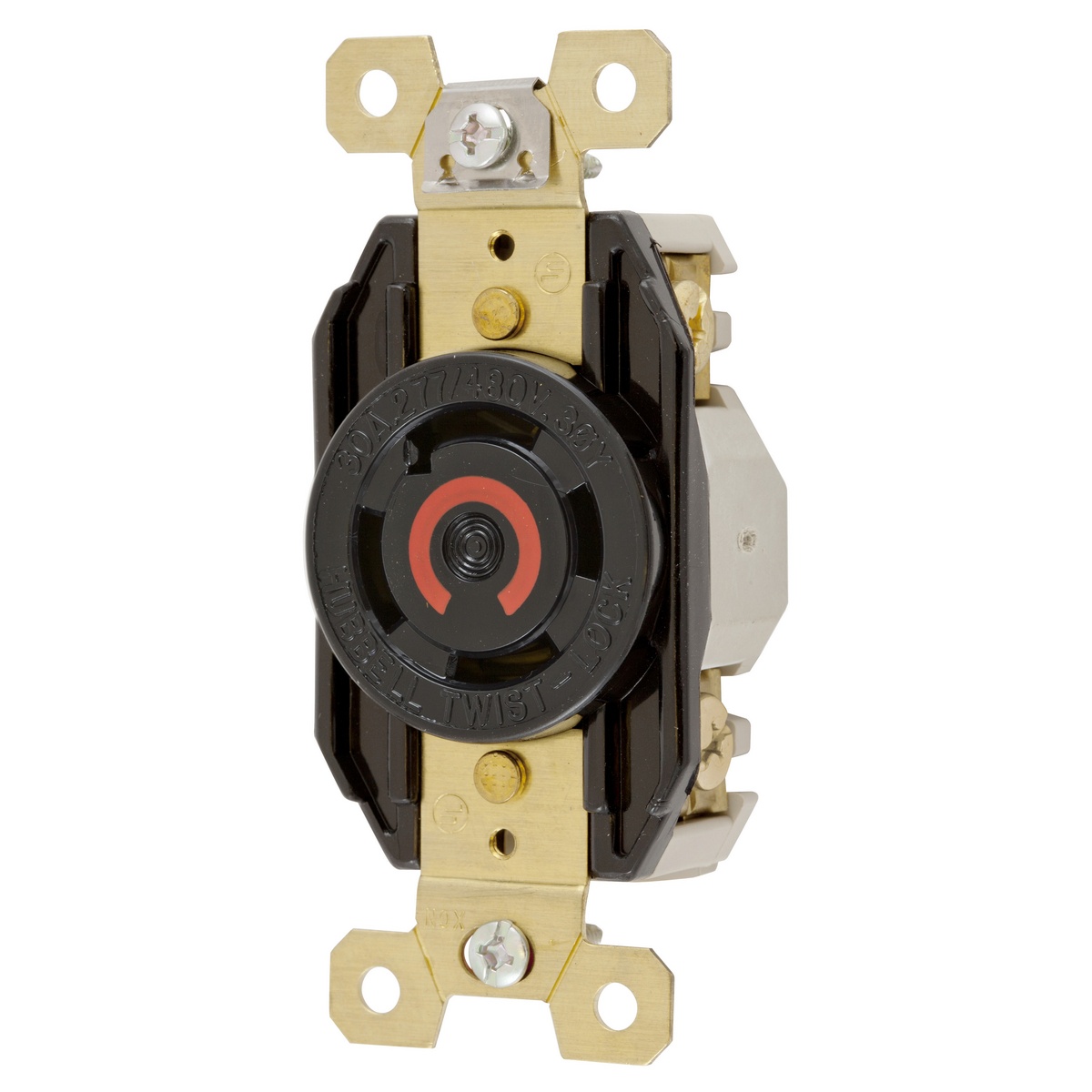

Hubbell HBL2760 Locking Receptacle
Hubbell Twist-Lock Locking Receptacle, Flush Mount Standard Single, 277/480 VAC, 30 A, 10 hp, 4 Poles, 4 Wires, NEMA L19-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Black, 1.313 in W
Additional Description: HUBW-HBL2760 LKG RCPT, 30A 3PH 277/480V, L19-30R, BK
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non- Grounding, L19-20R, Screw Terminal, Black.
Item Features
Item FeaturesCSA C22.2 No. 42|Federal Specification W-C-596, UL 498
