Part Number # HBL2800
SKU # 2346761
Image provided may only be a representation of
final product and may include optional equipment
HBL2800

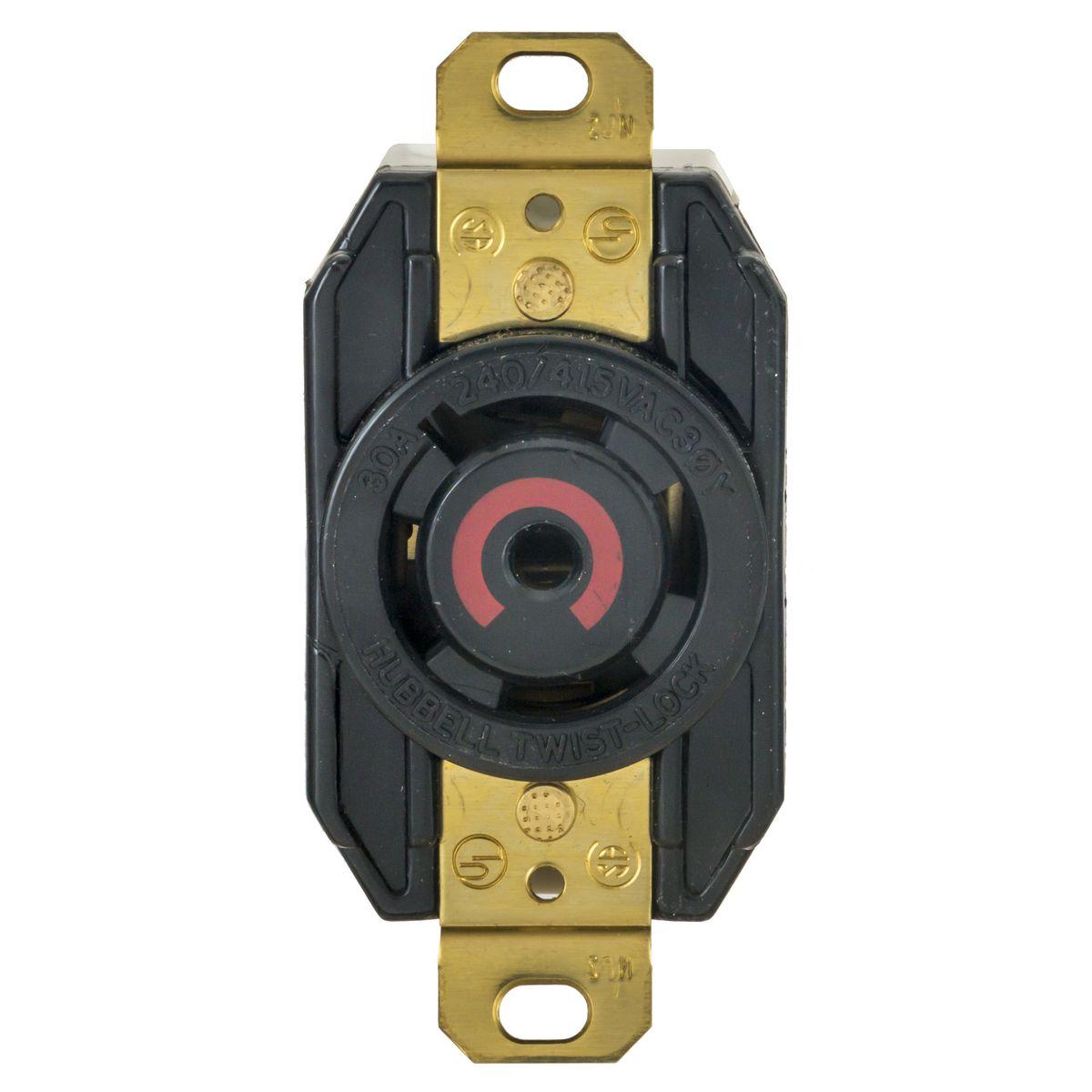

Hubbell HBL2800 Single Receptacle
Part Number # HBL2800
SKU # 2346761
Hubbell HBL2800 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2800 |
| SKU #: | 2346761 |
| Amperage Rating: | 30, 30 A |
| Enclosure: | IP20 |
| NEMA Rating: | L26-30R, NEMA L65-30R |
| Number of Poles: | 2, 4 |
| Number of Wires: | 3, 5 |
| Terminal Type: | Screw |
| Type: | 3-Phase Flush Grounding, 3-Phase Flush Grounding Screw Mount |
| Country of origin: | PR, US |
| Material: | Nylon, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585580357 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2800 Single Receptacle
Brand: Hubbell
Part Number: HBL2800
Wiring Device-Kellems Twist-Lock Single Receptacle, 3-Phase Flush Grounding Screw Mount, 240/415 VAC, 30 A, 4 Pole, 5 Wires, L26-30R NEMA Rating, IP20 Enclosure, Screw Terminal, Thermoplastic/Composite, Black
Additional Description: HUBW-HBL2800 (N) LKG RCPT, 30A 240/415 3PH, L26-30R, BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Locking Devices, Twist-Lock®,Single Flush Receptacle, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30R, Black Nylon
HBL2800 Item Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion
- https://youtu.be/1DnPJu3QNw0
HBL2800 Standards
PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2346761Part Number #HBL2800UNSPSC39121406UPC00783585580357
