Part Number # HBL2801
SKU # 2346759
Image Disclaimers Message
HBL2801

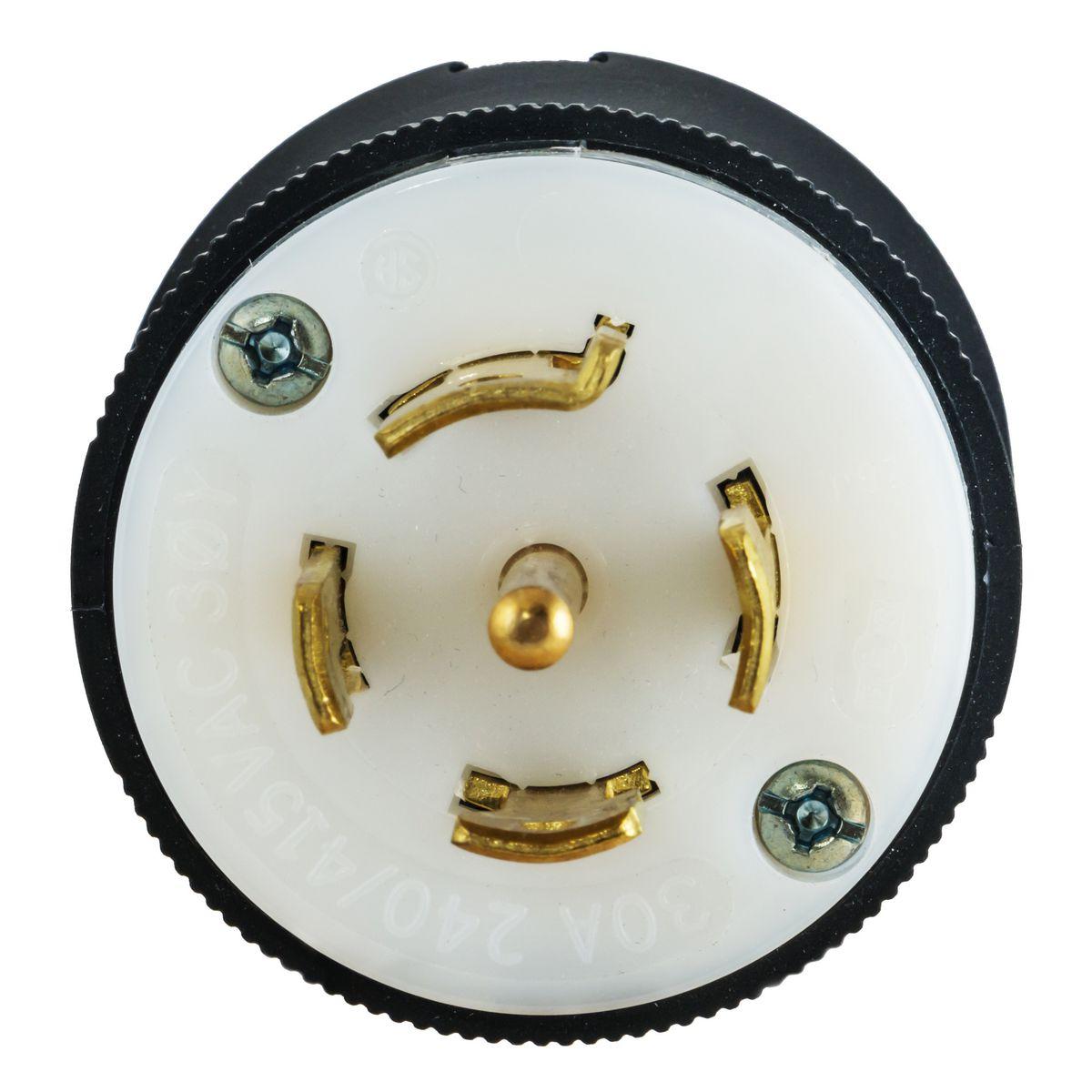

Hubbell HBL2801 Locking Plug
Part Number # HBL2801
SKU # 2346759
$60.14 / Each
Typical price:$77.70 / Each
Hubbell HBL2801 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2801 |
| SKU #: | 2346759 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.21 x 2.21 x 2.75 in, 2.75 in L x 2.21 in W |
| Enclosure: | IP20 |
| NEMA Rating: | L26-30R, NEMA L26-30R |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Extra Heavy Duty Grounding Male Portable Standard, 3-Phase Extra Heavy Duty Grounding Male Portable Standard Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585580326 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$60.14 / Each
Typical price:$77.70 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Safety-Shroud Insulgrip Locking Plug, 3-Phase Extra Heavy Duty Grounding Male Portable Standard Cord Mount, 240/415 V AC, 30 A, 4 Pole, 5 Wires, L26-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.21 x 2.21 x 2.75 in
HBL2801 Application
Indoor EnvironmentHBL2801 Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral, dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2801 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5SKU #2346759Part Number #HBL2801UNSPSC39121402UPC00783585580326
