Brand: Hubbell

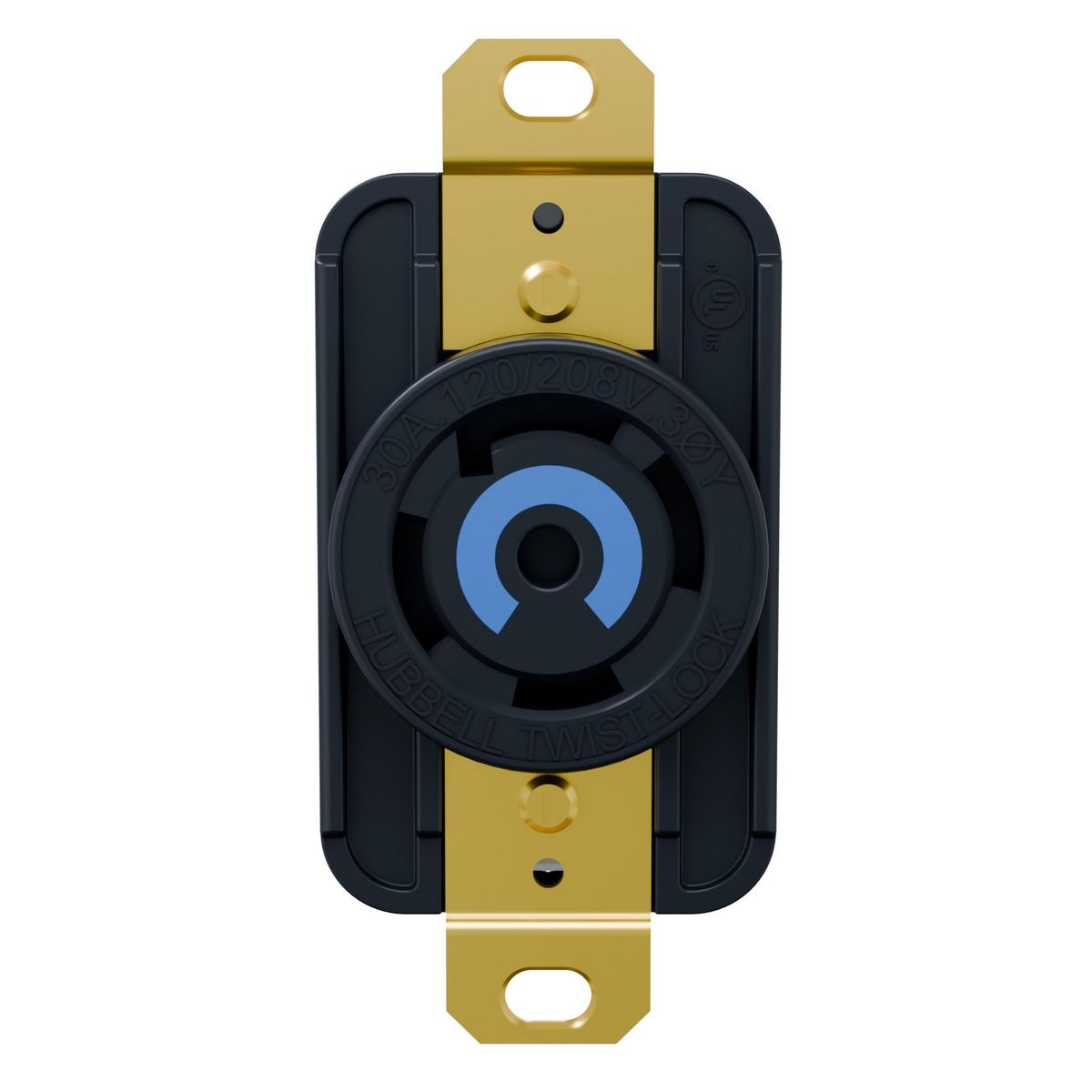

Hubbell HBL2810ST Wiring Device-Kellems Twist-Lock Locking Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL2810ST Wiring Device-Kellems Twist-Lock Locking Receptacle
Brand: Hubbell
Hubbell HBL2810ST Wiring Device-Kellems Twist-Lock Locking Receptacle
Part #:HBL2810ST
SKU #: 2412836
$40.90/EA
Key Features
Part #:HBL2810ST
SKU #: 2412836
Brand: Hubbell
Amperage Rating: 30 A
Dimensions: 3.28 in L x 1.7 in W x 1.468 in H
Enclosure: IP20
NEMA Rating: NEMA L21-30R
Number of Poles: 4
$40.90/EA
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6312863964112
Specifications
Brand: Hubbell
Amperage Rating: 30 A
Dimensions: 3.28 in L x 1.7 in W x 1.468 in H
Enclosure: IP20
NEMA Rating: NEMA L21-30R
Number of Poles: 4
Number of Wires: 5
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Back Wire
Type: 3-Phase Single Flush
Voltage Rating: 120/208Y VAC
Color: Black
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585788524
Hubbell HBL2810ST Wiring Device-Kellems Twist-Lock Locking Receptacle
Additional Description: HUBW-HBL2810ST LKG RCPT, 30A 3P 120/208V, L21-30R, BK,
Catalog Description: EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination
Item Features
Item FeaturesCSA C22.2 File No. 0.17|CSA C22.2 File No. 42|UL 498|UL 94
