Part Number # HBL2820
SKU # 130805

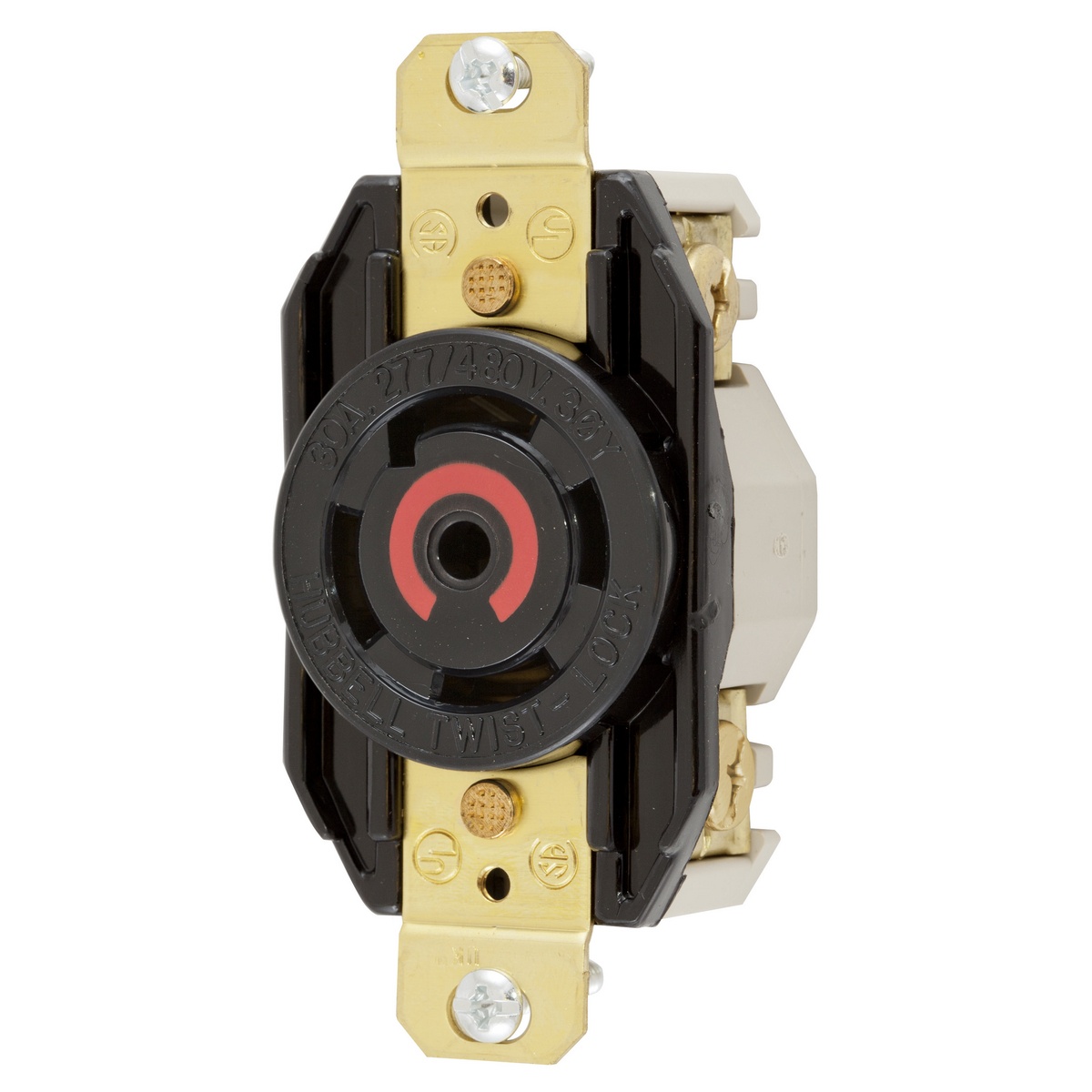

Image provided may only be a representation of
final product and may include optional equipment
HBL2820
Hubbell HBL2820 Locking Receptacle
Part Number # HBL2820
SKU # 130805
Hubbell HBL2820 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2820 |
| SKU #: | 130805 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.28 in H x 1.7 in W x 1.23 in D, 3.28 x 1.7 x 1.23, 3.28 x 1.7 x 1.23 in |
| Horsepower: | 10, 10 hp |
| NEMA Rating: | L22-30R, NEMA L22-30R |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Heavy Duty Single Screw Mount, Grounding Heavy Duty Single |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585236261 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2820 Locking Receptacle
Brand: Hubbell
Part Number: HBL2820
Wiring Device-Kellems Twist-Lock Locking Receptacle, 3-Phase Grounding Heavy Duty Single Screw Mount, 277/480Y VAC, 30 A, 10 hp, 4 Pole, 5 Wires, L22-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Gray/White, 3.28 x 1.7 x 1.23 in
Additional Description: HUBW-HBL2820 LKG RCPT, 30A 3P 277/480V, L22-30R, BK
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-30R, Screw Terminal, Black
HBL2820 Item Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2820 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #130805Part Number #HBL2820UNSPSC39121406UPC00783585236261
