Part Number # HBL2831
SKU # 2307030
Image Disclaimers Message
HBL2831

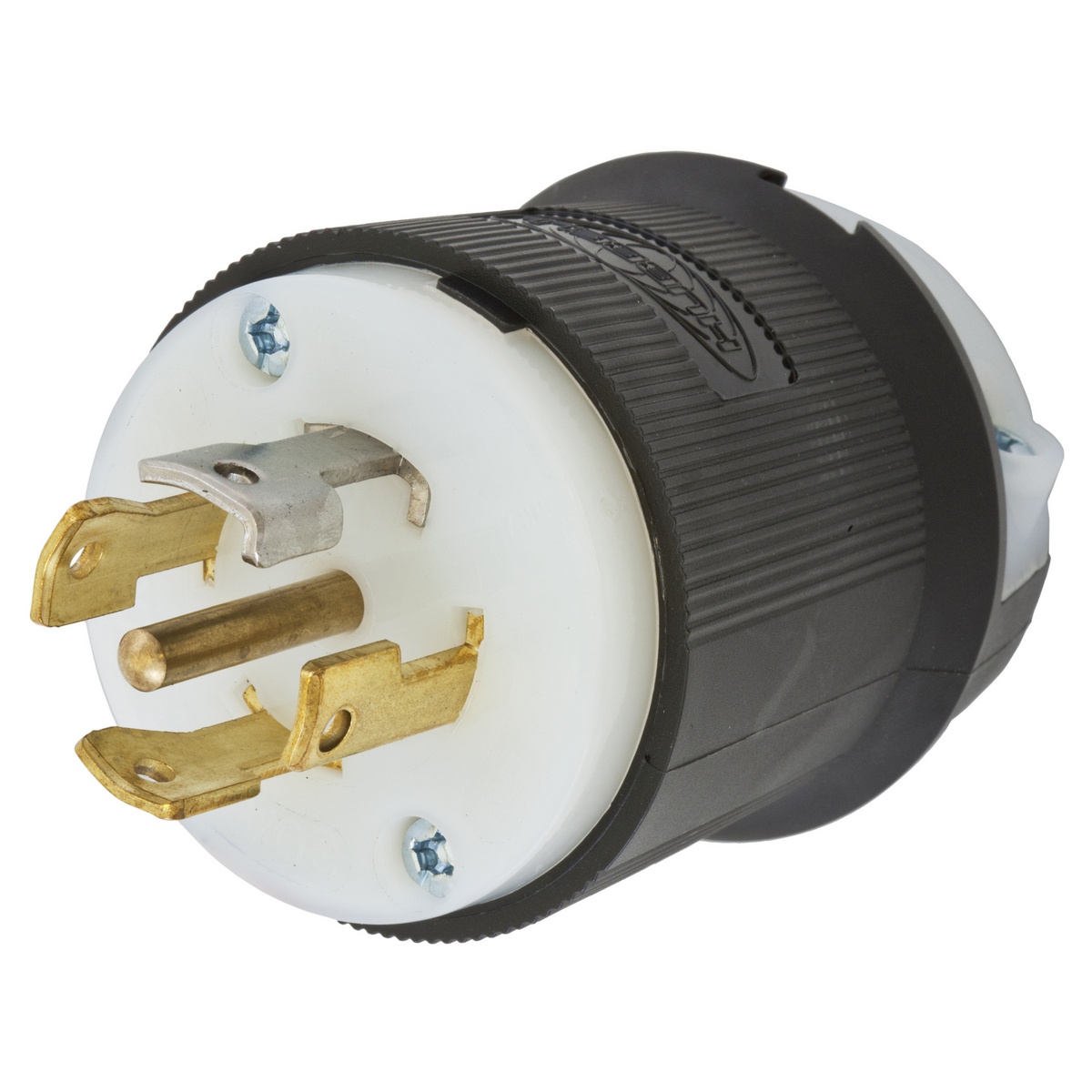

Hubbell HBL2831 Locking Plug
Part Number # HBL2831
SKU # 2307030
$63.86 / Each
Typical price:$122.00 / Each
Hubbell HBL2831 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2831 |
| SKU #: | 2307030 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.33 in Dia x 2.75 in L, 2.33 x 2.33 x 2.75 in |
| Enclosure: | IP20 |
| NEMA Rating: | L23-30P, NEMA L23-30P |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Cord Mount, Grounding |
| Color: | Black/White |
| Country of origin: | PR, US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585039732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.86 / Each
Typical price:$122.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Plug, 3-Phase Grounding Cord Mount, 347/600 V AC, 30 A, 4 Pole, 5 Wires, L23-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 2.75 in
HBL2831 Application
Power Connection ApplicationsHBL2831 Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2831 Standards
UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS CompliantSKU #2307030Part Number #HBL2831UNSPSC39121402UPC00783585039732
