Part Number # HBL28W48
SKU # 2359363
Image Disclaimers Message
Brand: Hubbell
HBL28W48

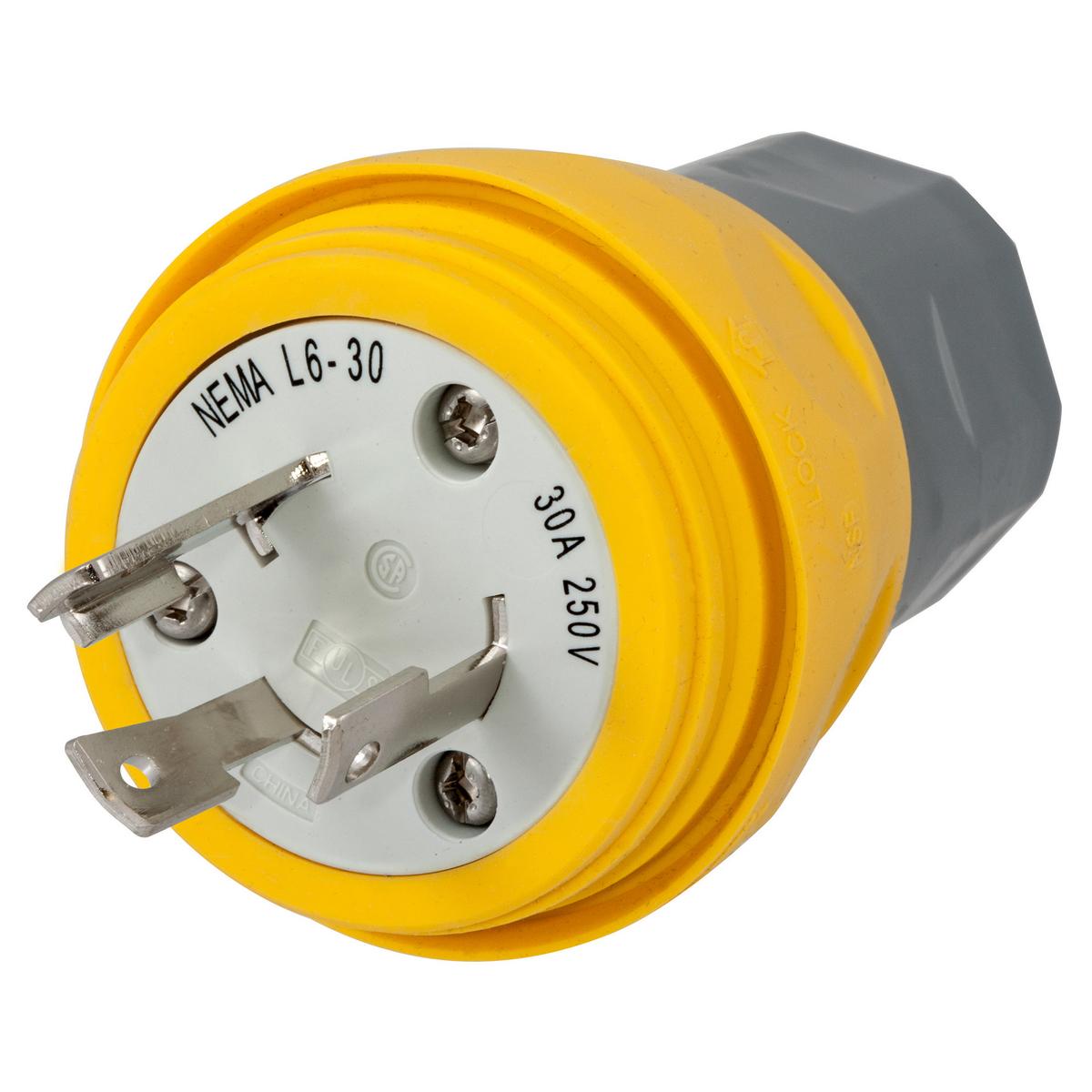

Hubbell HBL28W48 Locking Plug
Part Number # HBL28W48
SKU # 2359363
$79.14 / Each
Typical price:$103.00 / Each
Hubbell HBL28W48 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL28W48 |
| SKU #: | 2359363 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 3/8 to 1, 3/8 to 1 in |
| Dimensions: | 2.77 in Dia x 3.94 in L, 2.77 x 2.77 x 3.94 in |
| Enclosure: | NEMA 4/4X/12/6/6P, NEMA 4/4X/6/6P/12 |
| NEMA Rating: | L6-30P, NEMA L6-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Portable Water/Dust Tight Standard Sized Cord Mount Watertight, Grounding Male Portable Water/Dust Tight Standard Sized |
| Color: | Yellow |
| Country of origin: | CN |
| Material: | Elastomer/Composite, Thermoplastic Elastomer |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585131443 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.14 / Each
Typical price:$103.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL28W48, Locking Plug, 1-Phase Grounding Male Portable Water/Dust Tight Standard Sized Cord Mount Watertight, 250 V AC, 30 A, 2 Pole, 3 Wires, L6-30P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 3.94 in Dimensions
HBL28W48 Item Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
- https://youtu.be/a9HxdV3I_20
HBL28W48 Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42|ANSI Approved|NEMA WD1/WD6|ANSI Specified|NSF Certified|UL94 V-2 Flammability RatingSKU #2359363Part Number #HBL28W48UNSPSC39121402UPC00783585131443
