Part Number # HBL303SS
SKU # 356242
Image Disclaimers Message
Brand: Hubbell
HBL303SS

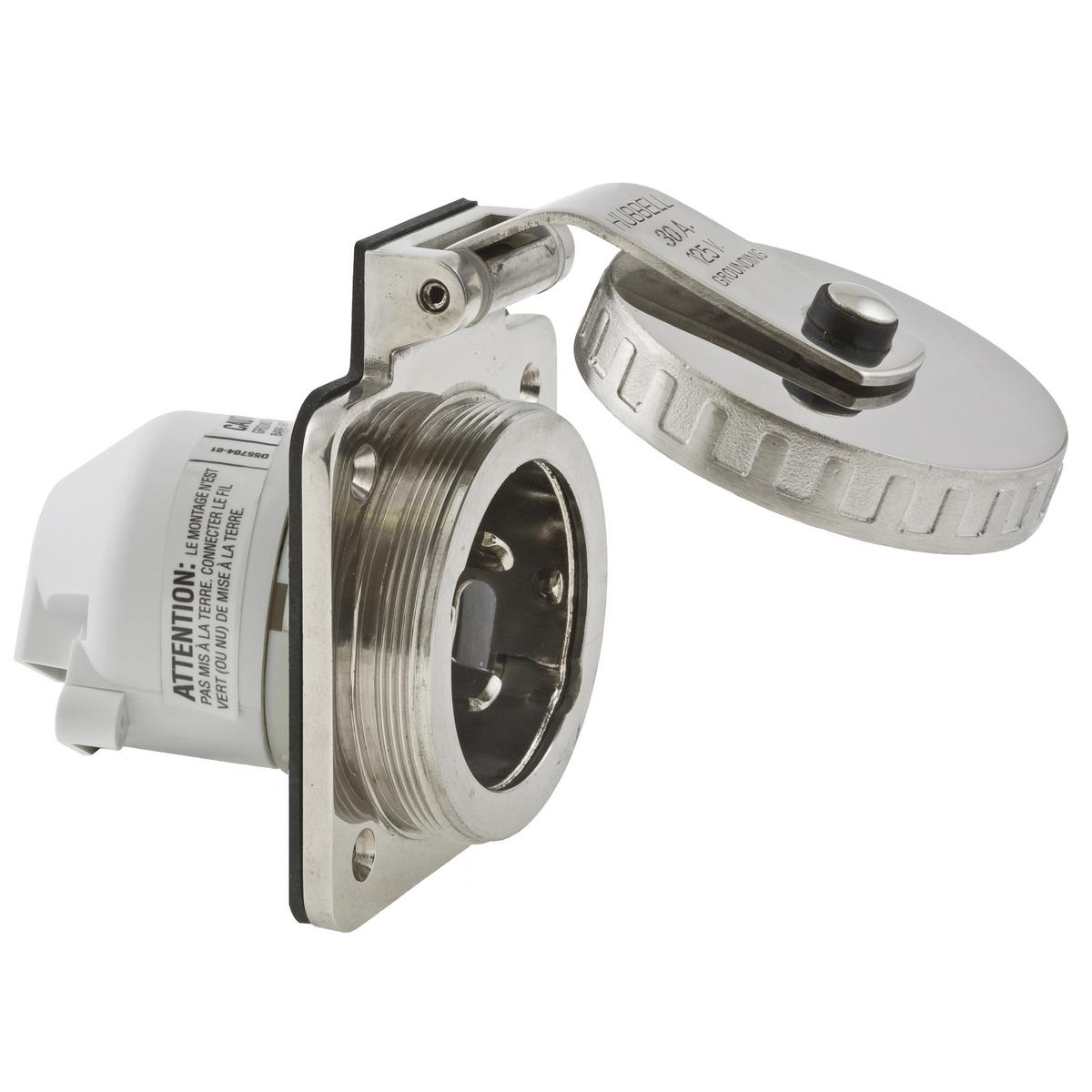

Hubbell HBL303SS Hull Inlet
Part Number # HBL303SS
SKU # 356242
$192.86 / Each
Typical price:$366.00 / Each
Hubbell HBL303SS Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL303SS |
| SKU #: | 356242 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.28 in W x 4.08 in H, 4.08 in H x 3.28 in W |
| Enclosure: | IP56 |
| NEMA Rating: | L5-30P, NEMA L5-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Grounding, 1-Phase Grounding Screw Mount Watertight |
| Color: | Stainless Steel |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585040523 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$192.86 / Each
Typical price:$366.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL303SS, Grounding Screw Mount Watertight Hull Inlet, Series: HBL, 125 V AC, 30 A, 2 Pole, 3 Wires, L5-30P NEMA Rating, Marine Grade, IP56 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Stainless Steel, 3.28 in W x 4.08 in H Dimensions
HBL303SS Application
Marine Wiring Device ApplicationsHBL303SS Includes
Mounting Screw, GasketHBL303SS Item Features
- New quick connect with backwards compatibility
- Self-closing Cover
- Corrossion Resistant Base and Cover
- Threaded Base for making a watertight seal
- https://youtu.be/6vsZAR79ASo
HBL303SS Standards
UL 498 Listed|NEMA WD1/WD5|RoHS CompliantHBL303SS Warranty
LimitedSKU #356242Part Number #HBL303SSUNSPSC39121406UPC00783585040523
