Part Number # HBL3100B6W
SKU # 2306964
Image Disclaimers Message
HBL3100B6W

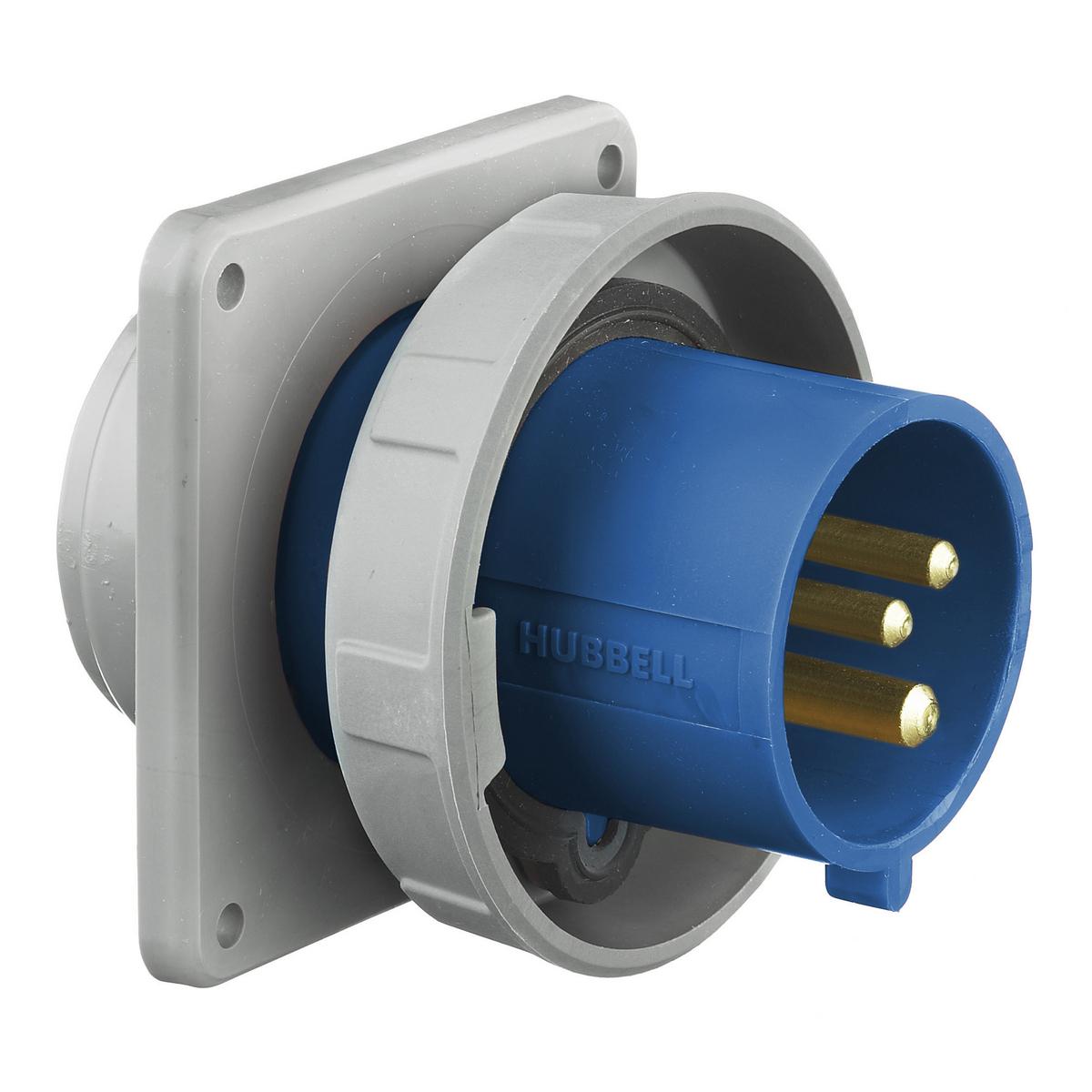

Hubbell HBL3100B6W Pin and Sleeve Inlet
Part Number # HBL3100B6W
SKU # 2306964
$785.71 / Each
Typical price:$1199.00 / Each
Hubbell HBL3100B6W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL3100B6W |
| SKU #: | 2306964 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5-1/2 in H x 5-1/2 in W, 5-1/2 in W x 5-1/2 in H |
| Enclosure: | IP67 |
| Horsepower: | 15, 15 hp |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Flanged Male Single Standard Watertight Screw Mount, Flanged Male Single Standard Watertight |
| Color: | Blue |
| Country of origin: | PR |
| Material: | Nylon, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585403014 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$785.71 / Each
Typical price:$1199.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL3100B6W, Pin and Sleeve Inlet, 1-Phase Flanged Male Single Standard Watertight Screw Mount, 250 V AC, 100 A, 15 hp, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 5-1/2 in W x 5-1/2 in H Dimensions
HBL3100B6W Application
High Ampacity Watertight Connection ApplicationsHBL3100B6W Item Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
HBL3100B6W Standards
RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498 File No. E146032SKU #2306964Part Number #HBL3100B6WUNSPSC39121406UPC00783585403014
