- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Amperage/voltage rating and catalog number molded in housing for easy identification
- Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
- Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
- Super tough plug shroud protects pins from deforming from physical abuse
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Molded thermoset polyester provides high resistance to electrical tracking
- Withstands higher temperatures which may result from overload or arcing
- Thermoset properties provide dimensional stability for this critical assembly
- Feature large hex head stainless steel screws which provide higher torque levels for secure terminations
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
Specifications
Brand: Hubbell
Amperage Rating: 100, 100 A
Dimensions: 5-1/2 in L x 5-1/2 in W
Enclosure: IP67
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw, Screw
Type: 1-Phase Grounding Single Flanged Standard Screw Mount Watertight, Grounding Single Flanged Standard
Voltage Rating: 125, 125 VAC
Color: Yellow
Country of origin: PR
Material: Nylon, Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585403113

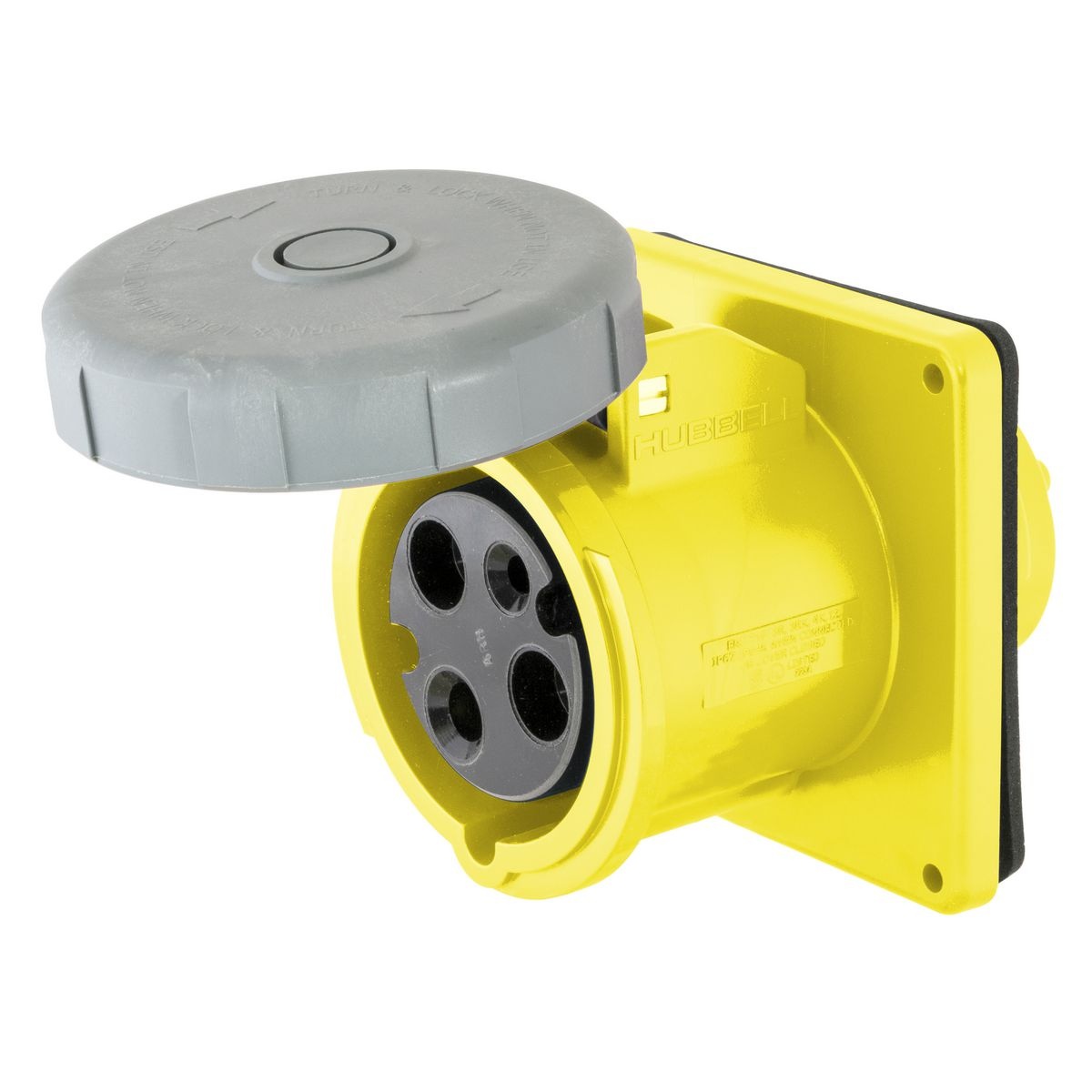

Hubbell HBL3100R4W Pin and Sleeve Receptacle
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 1-Phase Grounding Single Flanged Standard Screw Mount Watertight, 125 VAC, 100 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Yellow, 5-1/2 in L x 5-1/2 in W
Additional Description: HUBW-HBL3100R4W (N) PS, IEC, RECP, 2P3W, 100A 125V,4X/69K NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Female Receptacle, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Item FeaturesHigh Ampacity Watertight Connection Applications
Item Features
Item FeaturesRoHS Compliant|CSA C22.2 No. 182.1|IEC 309-1/309-2|UL 498|UL 1682|UL File No. E146032
