Part Number # HBL3100R7W
SKU # 2198920
HBL3100R7W

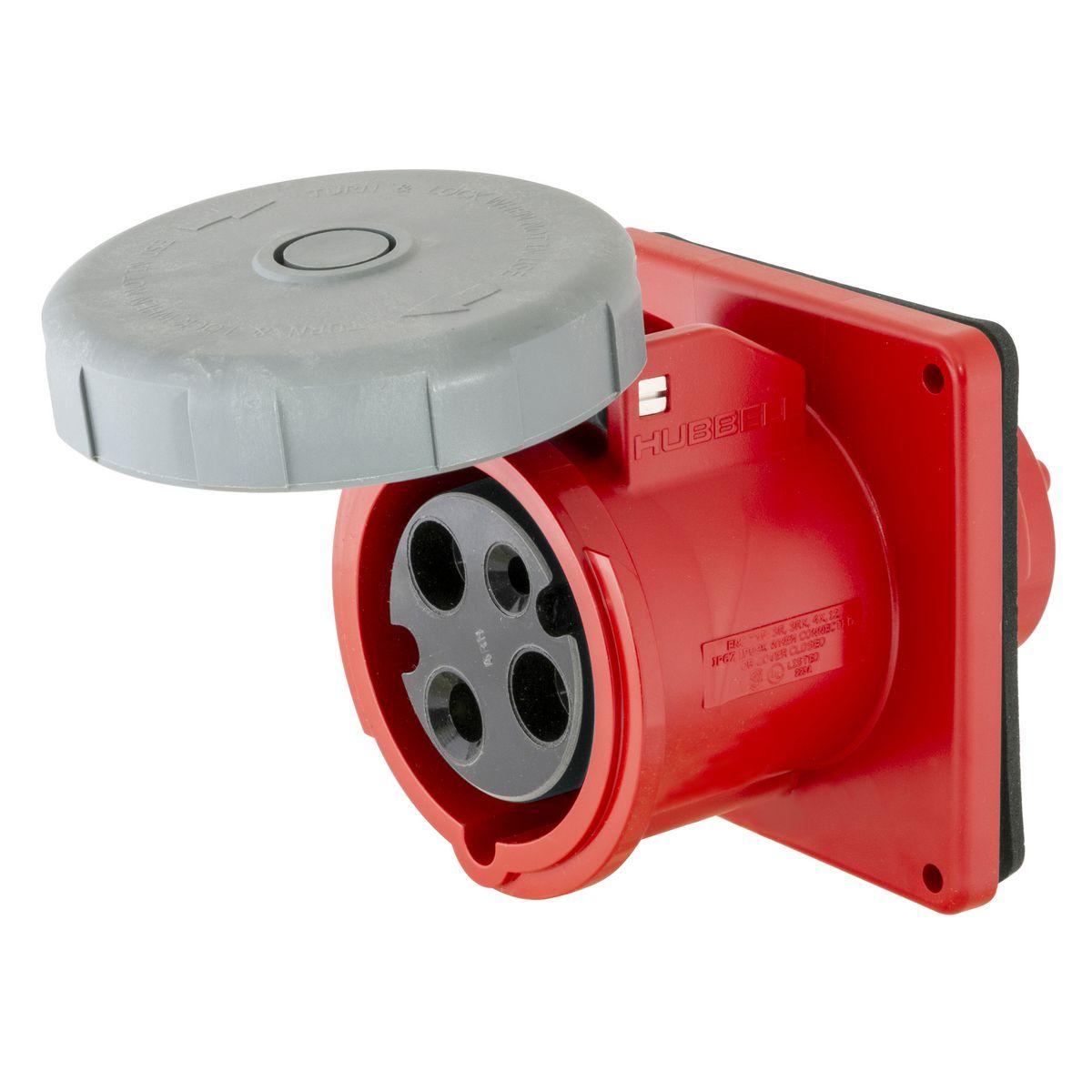

Hubbell HBL3100R7W Pin and Sleeve Receptacle
Part Number # HBL3100R7W
SKU # 2198920
Hubbell HBL3100R7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL3100R7W |
| SKU #: | 2198920 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5.71 in H |
| Enclosure: | IP67 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw, Pressure Terminal Screw |
| Type: | 1-Phase Female Single Flanged Watertight Screw Mount, Female Single Flanged Watertight |
| Country of origin: | PR, US |
| Material: | Thermoplastic, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585403137 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL3100R7W Pin and Sleeve Receptacle
Brand: Hubbell
Part Number: HBL3100R7W
Wiring Device-Kellems Pin and Sleeve Receptacle, 1-Phase Female Single Flanged Watertight Screw Mount, 480 VAC, 100 A, 2 Pole, 3 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5.71 in H
Additional Description: HUBW-HBL3100R7W (N) PS, IEC, RECP, 2P3W, 100A 480V,4X/69K NON-CANCELABLE, NON-RETURNABLE RECEPTACLE
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Female Receptacle, 100A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
HBL3100R7W Application
For high ampacity watertight connectionsHBL3100R7W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL3100R7W Standards
RoHS Compliant|IEC 309-1/309-2|CSA C22.2 No. 182.1|UL 498/1682/1686C2 File No. E146032/E146033|CSA File No. LR280CSKU #2198920Part Number #HBL3100R7WUNSPSC39121406UPC00783585403137
Image provided may only be a representation of final product and may include optional equipment
