Part Number # HBL316P4W
SKU # 2238215

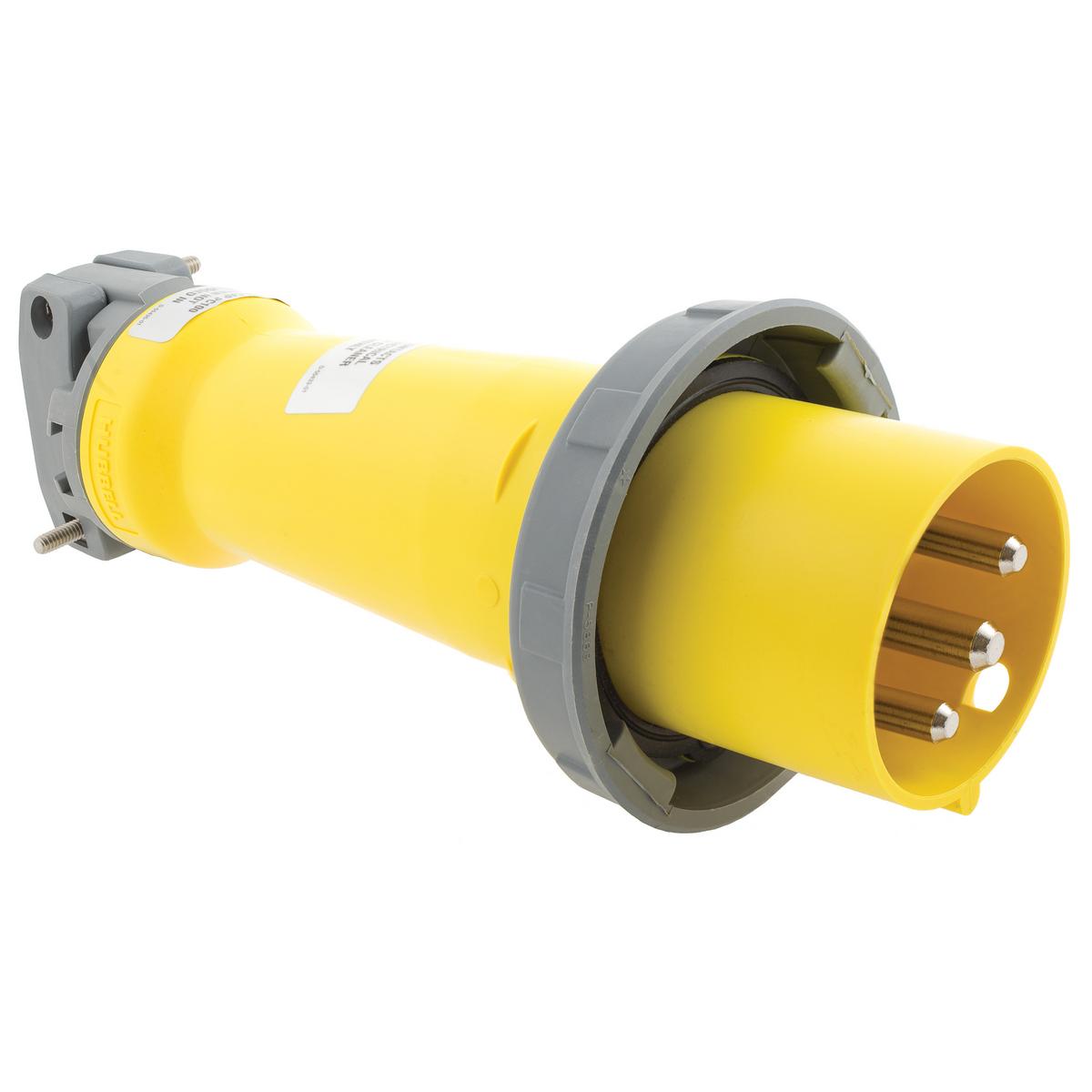

Image provided may only be a representation of
final product and may include optional equipment
HBL316P4W
Hubbell HBL316P4W Pin and Sleeve Plug
Part Number # HBL316P4W
SKU # 2238215
Hubbell HBL316P4W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL316P4W |
| SKU #: | 2238215 |
| Amperage Rating: | 16, 16 A |
| Dimensions: | 2.87 in Dia x 6.61 in L |
| Enclosure: | IP67 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw, Pressure Terminal Screw |
| Type: | 1-Phase Male Watertight Standard, 1-Phase Male Watertight Standard Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585403229 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL316P4W Pin and Sleeve Plug
Brand: Hubbell
Part Number: HBL316P4W
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Male Watertight Standard Cord Mount, 100 to 130 VAC, 16 A, 2 Pole, 3 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 2.87 in Dia x 6.61 in L
Additional Description: HUBW-HBL316P4W PS, IEC, PLUG, 2P3W, 16A 100-130V,4X/69K W/T
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Male Plug, 16A 100-130V, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
HBL316P4W Application
High Ampacity Connection ApplicationsHBL316P4W Item Features
- Solid one-piece pins machined from solid brass
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
HBL316P4W Standards
RoHS Compliant|CSA File No. LR280C|IEC 60309-1 IEC 60309-2|UL 498/1682/1686C2 File No. E146032/E146033|CSA C22.2 182.1SKU #2238215Part Number #HBL316P4WUNSPSC39121402UPC00783585403229
