Part Number # HBL320P4W
SKU # 250510
HBL320P4W

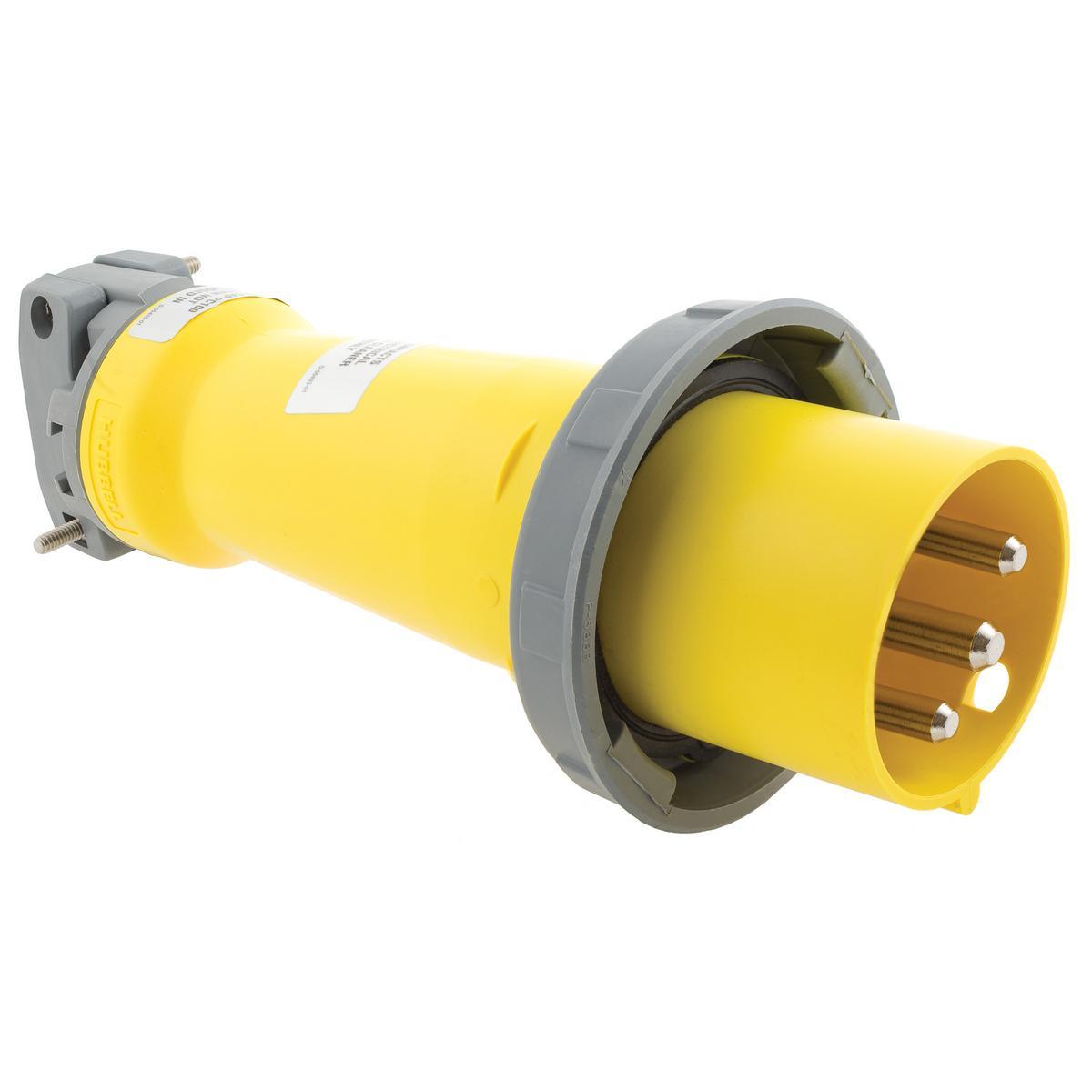

Hubbell HBL320P4W Pin & Sleeve Plug
Part Number # HBL320P4W
SKU # 250510
Hubbell HBL320P4W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL320P4W |
| SKU #: | 250510 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 2.87 in Dia x 6.61 in L |
| Enclosure: | IP67 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Grounding Male Watertight Cord Mount, Grounding Male Watertight |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585403366 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL320P4W Pin & Sleeve Plug
Brand: Hubbell
Part Number: HBL320P4W
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Grounding Male Watertight Cord Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 2.87 in Dia x 6.61 in L
Additional Description: HUBW-HBL320P4W PS, IEC, PLUG, 2P3W, 20A 125V,4X/69K
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Yellow , Watertight
HBL320P4W Application
High Ampacity ConnectionsHBL320P4W Item Features
- Solid one-piece pins machined from solid brass
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
HBL320P4W Standards
UL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C|RoHS CompliantSKU #250510Part Number #HBL320P4WUNSPSC39121402UPC00783585403366
Image provided may only be a representation of final product and may include optional equipment
