Brand: Hubbell

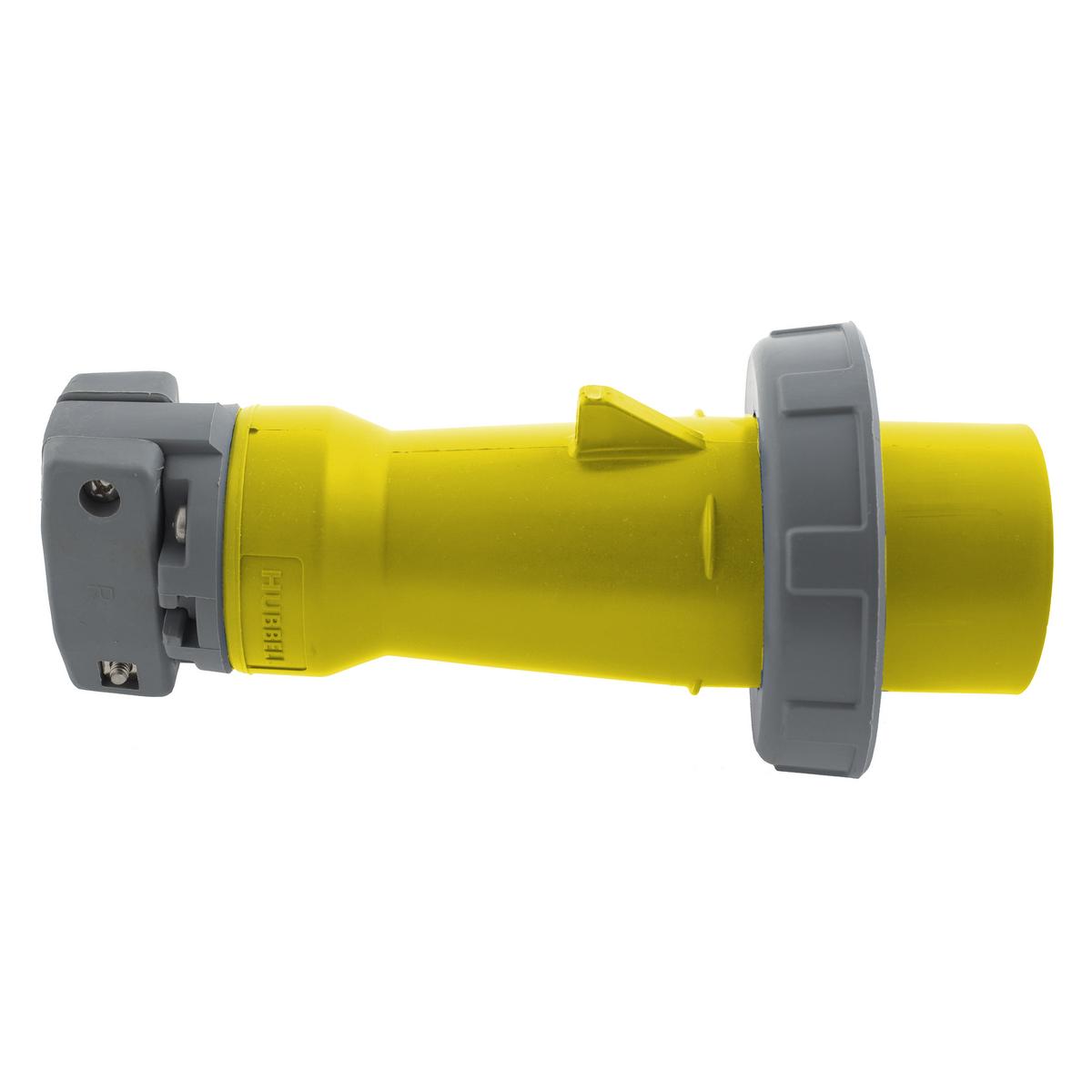

Hubbell HBL330P4W Pin & Sleeve Plug
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL330P4W Pin & Sleeve Plug
Brand: Hubbell
Hubbell HBL330P4W Pin & Sleeve Plug
Part #:HBL330P4W
SKU #: 2307021
$327.14/EA
Key Features
Part #:HBL330P4W
SKU #: 2307021
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.74 in Dia x 8.05 in L
Enclosure: IP67
Horsepower: 2, 2 hp
Number of Poles: 2
$327.14/EA
- Solid 1-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- Heavy duty external cord grips for maximum cord retention
- Zytel ST801 nylon housing, reinforced thermoplastic polyester locking ring, solid neoprene sealing gasket, high impact thermoset retainer, stainless steel terminal screws
- All portable cord
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.74 in Dia x 8.05 in L
Enclosure: IP67
Horsepower: 2, 2 hp
Number of Poles: 2
Number of Wires: 3
Series: HBL
Temperature Rating (Degrees F): -40, -40 deg C
Terminal Type: Pressure Screw
Type: 1-Phase Heavy Duty Male Standard Watertight Cord Mount, Heavy Duty Male Standard Watertight
Voltage Rating: 125, 125 VAC
Color: Yellow
Country of origin: PR, US
Material: Composite, Composite/Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585403557
Hubbell HBL330P4W Pin & Sleeve Plug
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Heavy Duty Male Standard Watertight Cord Mount, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 deg C, Pressure Screw Terminal, Composite, Yellow, 3.74 in Dia x 8.05 in L
Additional Description: HUBW-HBL330P4W PS, IEC, PLUG, 2P3W, 30A 125V,4X/69K
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Male Plug 30A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Item FeaturesHigh Ampacity Connection Applications
Item Features
Item FeaturesRoHS Compliant|CSA Certified|IEC 309-1/309-2|UL 498/1682/1686C2 File No. E146032/E146033|CSA File No. LR280C|CSA C22.2 182.1
