Part Number # HBL330PS2W
SKU # 2354912
HBL330PS2W

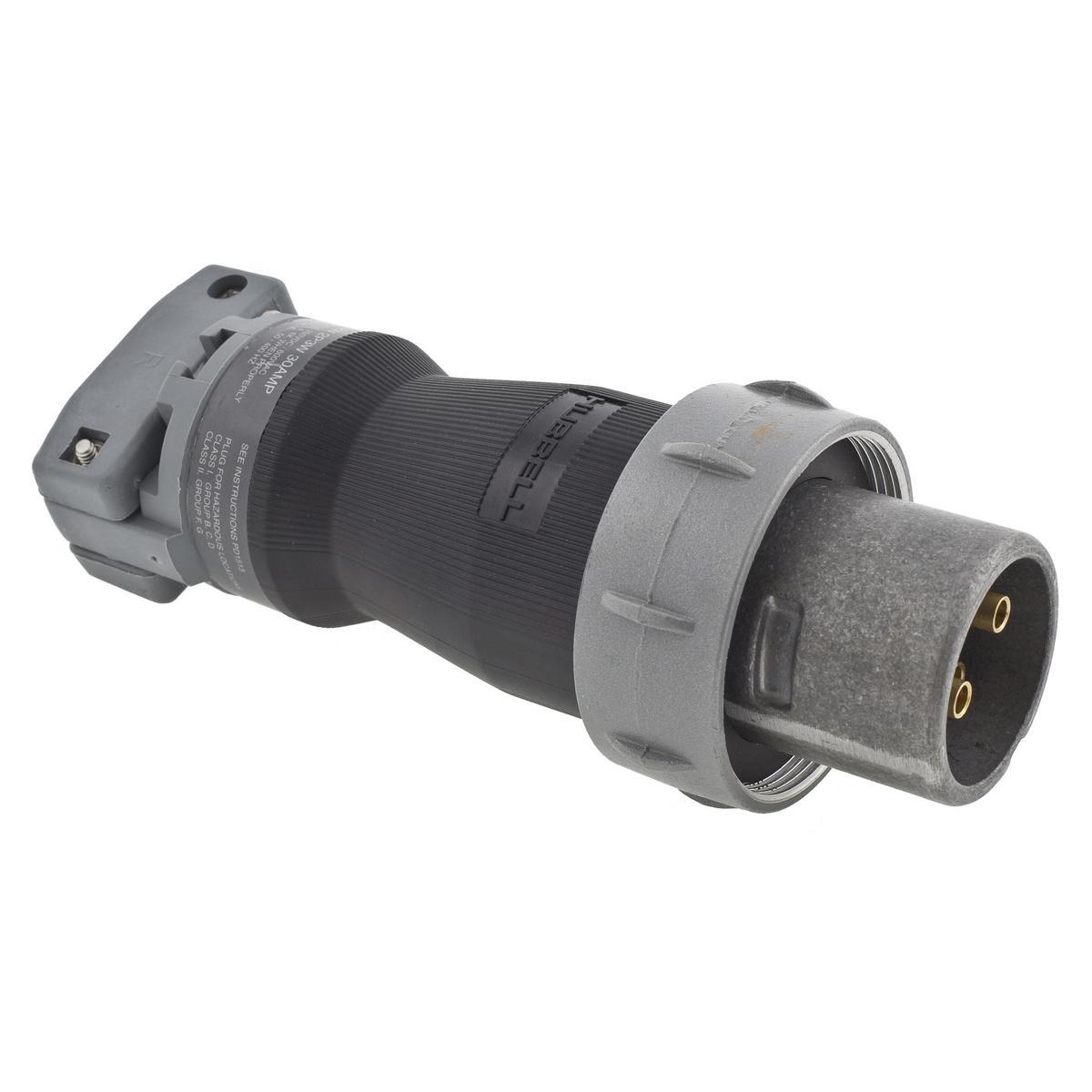

Hubbell HBL330PS2W Insulgrip Pin And Sleeve Plug
Part Number # HBL330PS2W
SKU # 2354912
$3671.40 / 10Each
Typical price:$4750.00 / Each
Hubbell HBL330PS2W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL330PS2W |
| SKU #: | 2354912 |
| Amperage Rating: | 30 A |
| Dimensions: | 7.54 in L |
| Frequency Rating: | 50/400 Hz |
| NEMA Rating: | 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Heavy Duty Male Standard Watertight Cord Mount |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585010069 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3671.40 / 10Each
Typical price:$4750.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Insulgrip, HBL330PS2W, Pin and Sleeve Plug, Heavy Duty Male Standard Watertight Cord Mount, Series: HBL, 600 V AC/250 V DC, 30 A, 50/400 Hz Frequency, 2 Pole, 3 Wires, 4X NEMA Rating, Industrial Grade, -40 deg C, Pressure Screw Terminal, Composite, Black/Gray, 7.54 in L Dimensions
HBL330PS2W Application
High Ampacity Connection ApplicationsHBL330PS2W Item Features
- Locking ring provides watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- https://youtu.be/1DnPJu3QNw0
HBL330PS2W Standards
UL1686|CSA Certified|CSA C22.2 No. 182.1|CSA 94/159|UL 50/498/1682/1686/1010|UL94 Flammability RatingSKU #2354912Part Number #HBL330PS2WUNSPSC39121402UPC00783585010069
Image provided may only be a representation of final product and may include optional equipment
