Part Number # HBL360PS1W
SKU # 144490
Image provided may only be a representation of
final product and may include optional equipment
HBL360PS1W

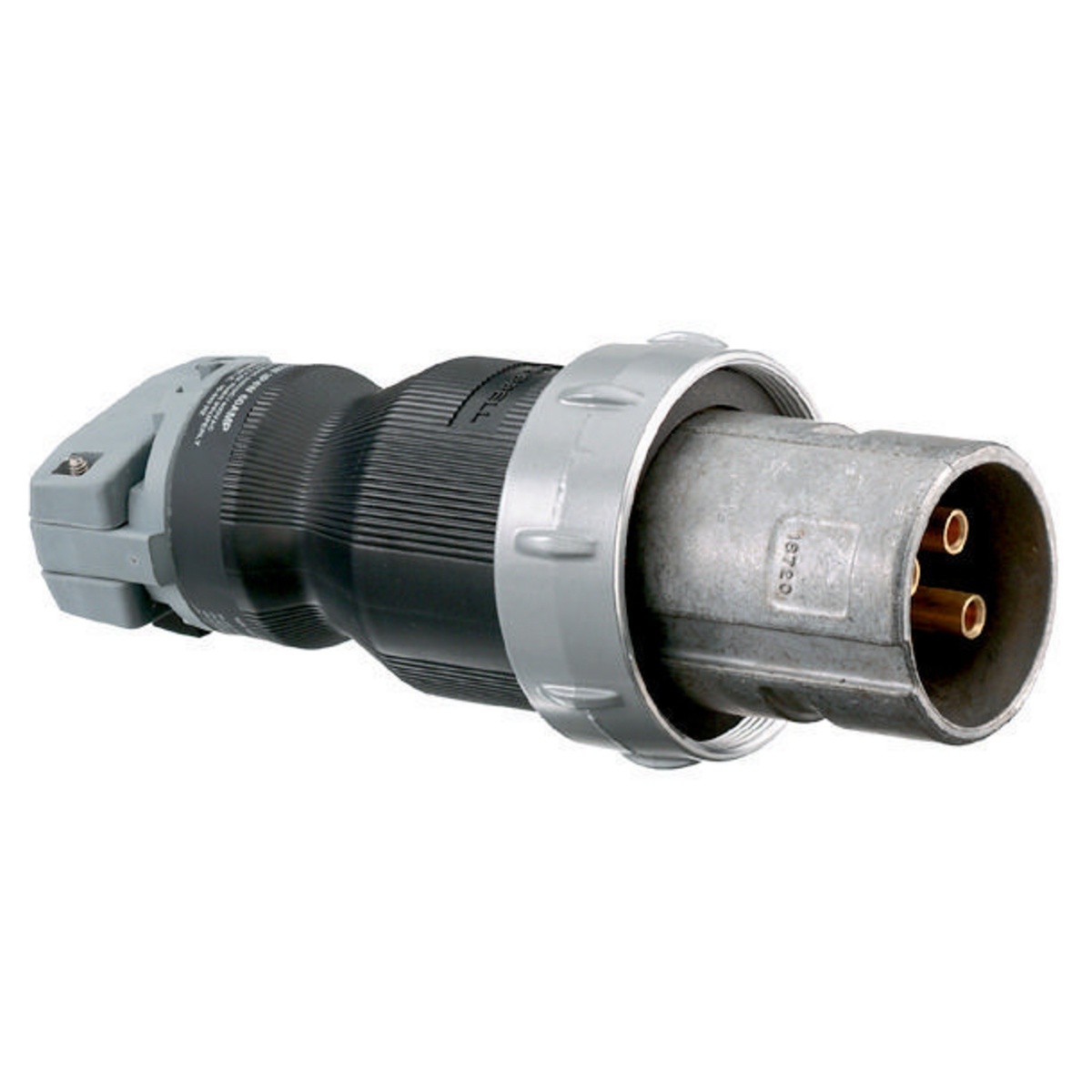

Hubbell HBL360PS1W Pin and Sleeve Plug
Part Number # HBL360PS1W
SKU # 144490
Hubbell HBL360PS1W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL360PS1W |
| SKU #: | 144490 |
| Amperage Rating: | 60 A |
| Dimensions: | 3.4 in Dia x 9.4 in L |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | 4X, NEMA 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40, -40 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Heavy Duty Male Standard Watertight, Heavy Duty Male Standard Watertight Cord Mount |
| Country of origin: | PR |
| Material: | Composite, Composite/Thermoplastic Polyester |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585010427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL360PS1W Pin and Sleeve Plug
Brand: Hubbell
Part Number: HBL360PS1W
Wiring Device-Kellems Insulgrip Pin and Sleeve Plug, Heavy Duty Male Standard Watertight Cord Mount, 600 VAC/250 VDC, 60 A, 50/400 Hz Frequency, 2 Pole, 3 Wires, 4X NEMA Rating, Industrial Grade, -40 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.4 in Dia x 9.4 in L
Additional Description: HUBW-HBL360PS1W (N) PS, INS, PLUG, 2P3W, 60A 600V, S1 1 PLUG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, 2-Pole 3-Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight
HBL360PS1W Application
High Ampacity Connection ApplicationsHBL360PS1W Item Features
- Locking ring provides watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- https://youtu.be/1DnPJu3QNw0
HBL360PS1W Standards
UL 498|UL1686|CSA CertifiedSKU #144490Part Number #HBL360PS1WUNSPSC39121402UPC00783585010427
