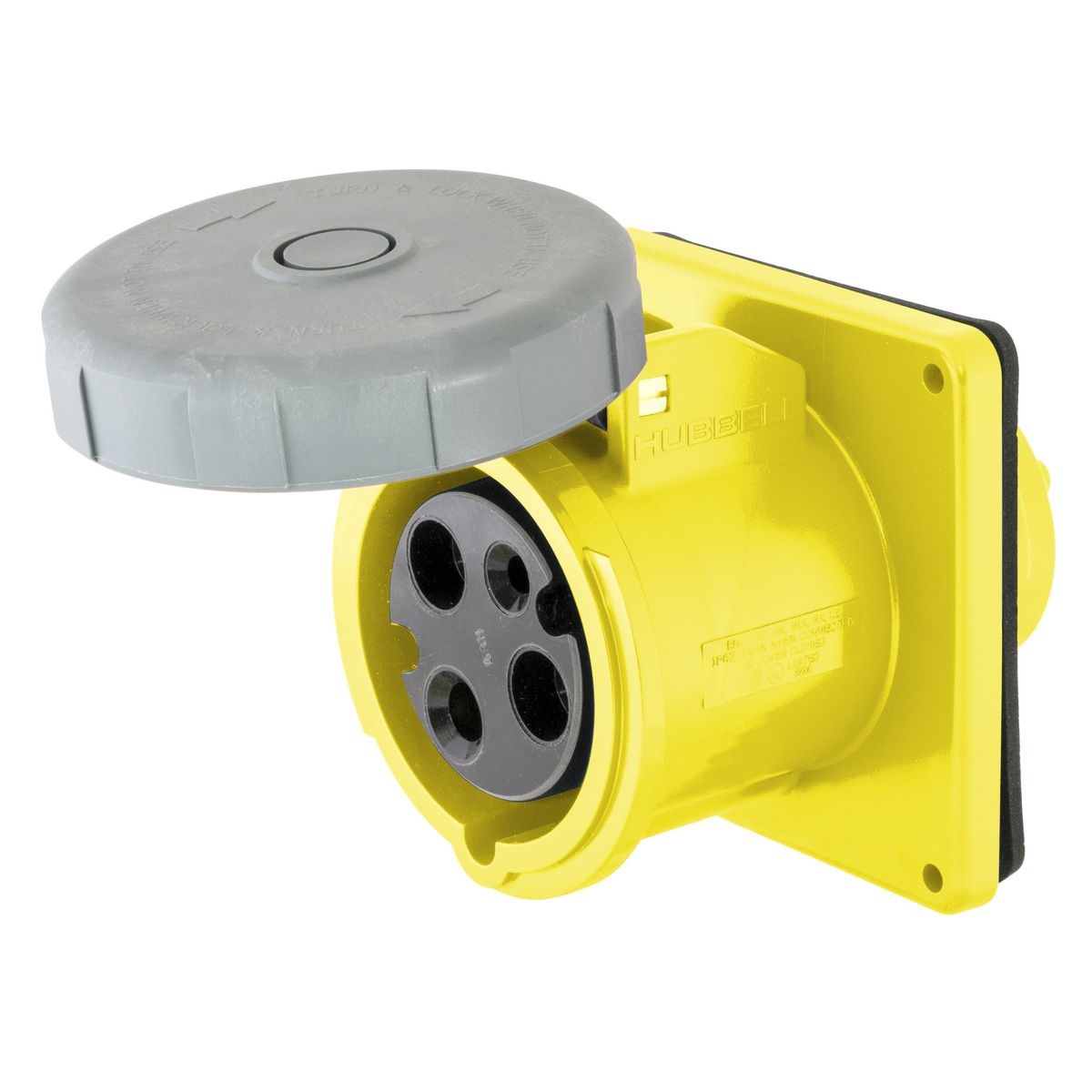

Hubbell HBL360R4W Pin and Sleeve Receptacle
Image Disclaimers Message
Hubbell HBL360R4W Pin and Sleeve Receptacle
Hubbell HBL360R4W Pin and Sleeve Receptacle
Part #:HBL360R4W
SKU #: 2288170
Key Features
Part #:HBL360R4W
SKU #: 2288170
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 4-1/2 in L x 4-1/2 in W
Enclosure: IP67
Number of Poles: 2
Number of Wires: 3
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Thermoset properties provide dimensional stability for this critical assembly
- Feature large hex head stainless steel screws which provide higher torque levels for secure terminations
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Amperage/voltage rating and catalog number molded in housing for easy identification
- High impact thermoset contact carrier and retainer
- Withstands 3000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- Zytel 101 nylon housing and mounting flange, reinforced thermoplastic polyester cover, solid neoprene gaskets, nickel plated brass cover screw
- 8 to 2 AWG wire
- Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
- Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
- Super tough plug shroud protects pins from deforming from physical abuse
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Molded thermoset polyester provides high resistance to electrical tracking
Hubbell HBL360R4W Pin and Sleeve Receptacle
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 1-Phase Grounding Single Flanged Standard Screw Mount Watertight, 125 VAC, 60 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Yellow, 4-1/2 in L x 4-1/2 in W
Additional Description: HUBW-HBL360R4W PS, IEC, RECP, 2P3W, 60A 125V,4X/69K
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Female Receptacle, 60A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
