Part Number # HBL3763C
SKU # 219246
Image Disclaimers Message
HBL3763C

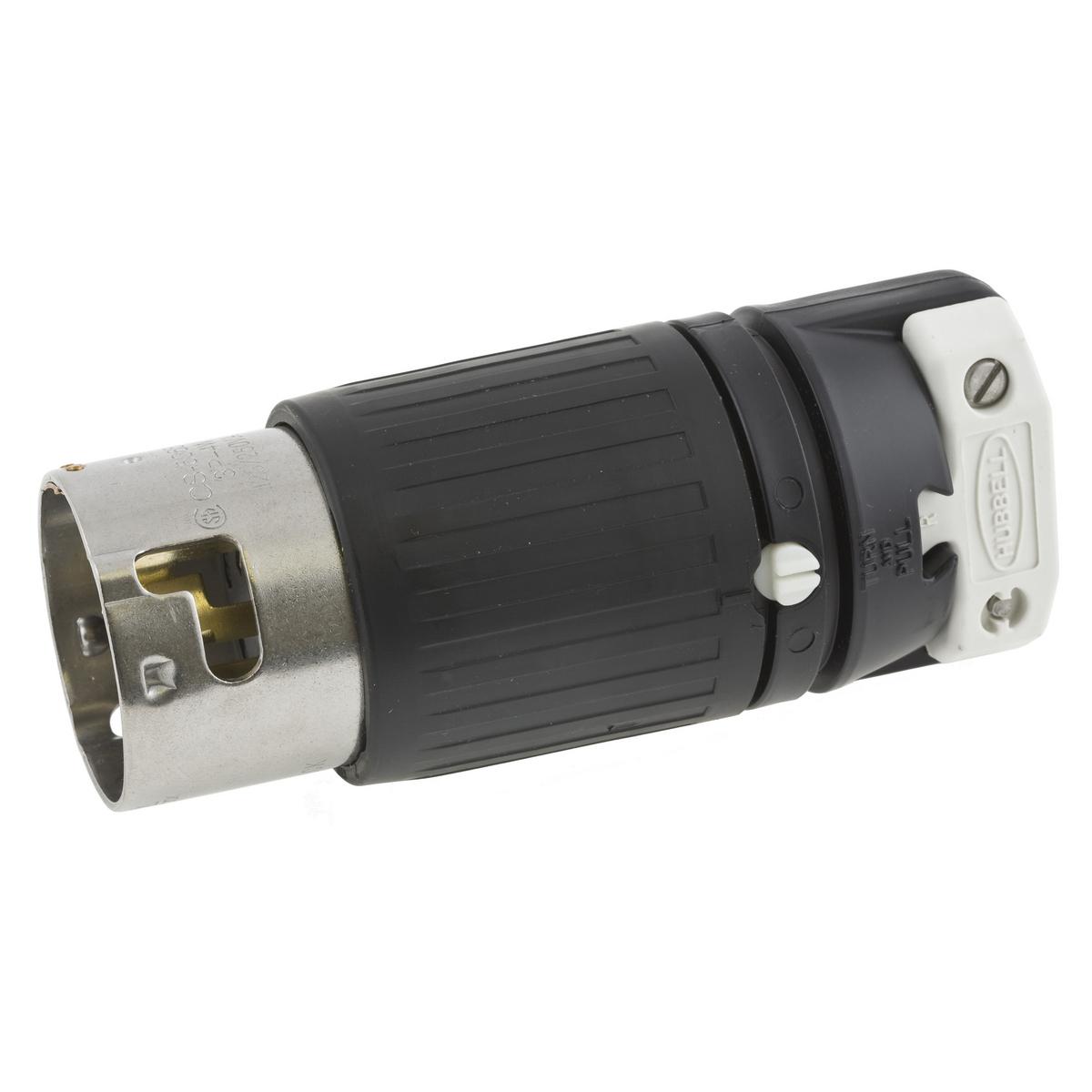

Hubbell HBL3763C Locking Plug
Part Number # HBL3763C
SKU # 219246
$172.86 / Each
Typical price:$328.00 / Each
Hubbell HBL3763C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL3763C |
| SKU #: | 219246 |
| Amperage Rating: | 50, 50 A |
| Cord Diameter: | 0.83 to 1.25, 0.83 to 1.25 in |
| Dimensions: | 2.56 in L x 2.56 in W x 6.37 in H, 2.56 x 2.56 x 6.37 in |
| Enclosure: | IP20 |
| Number of Poles: | 2, 3 |
| Number of Wires: | 3, 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Extra Heavy Duty Grounding Standard, 1-Phase Extra Heavy Duty Grounding Standard Cord Mount |
| Color: | Black/White |
| Country of origin: | PR |
| Material: | Brass/Composite/Nylon/Polyester, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121403 |
| UPC: | 00783585235615 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$172.86 / Each
Typical price:$328.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Plug, 1-Phase Extra Heavy Duty Grounding Standard Cord Mount, 600 V AC/250 V DC, 50 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, 0.83 to 1.25 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.56 x 2.56 x 6.37 in
HBL3763C Application
Dry Locations and Indoor ApplicationsHBL3763C Item Features
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- https://youtu.be/1DnPJu3QNw0
HBL3763C Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42SKU #219246Part Number #HBL3763CUNSPSC39121403UPC00783585235615
