Part Number # HBL3769
SKU # 136631
HBL3769

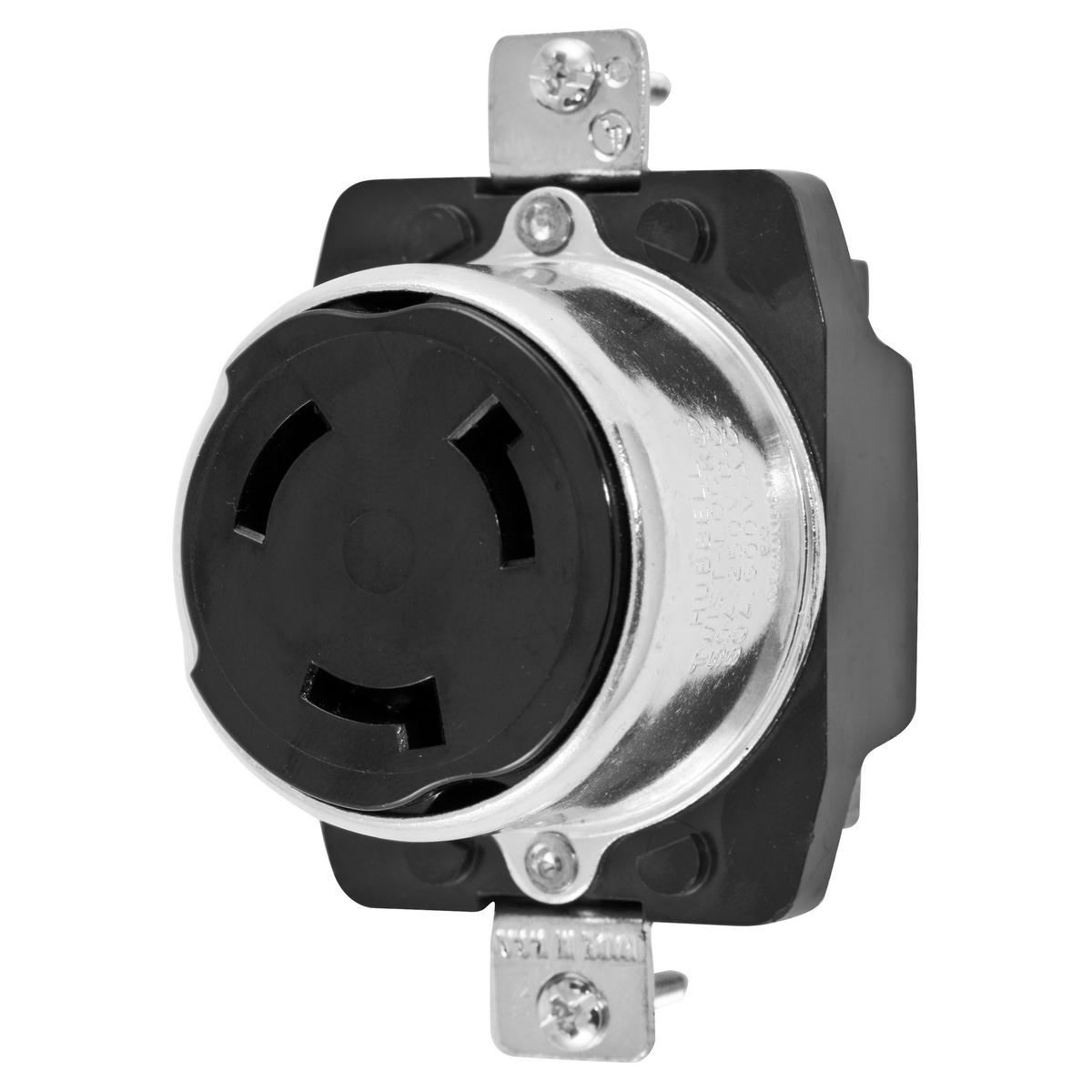

Hubbell HBL3769 Locking Receptacle
Part Number # HBL3769
SKU # 136631
$1842.90 / 10Each
Typical price:$2820.00 / Each
Hubbell HBL3769 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL3769 |
| SKU #: | 136631 |
| Amperage Rating: | 50 A |
| Dimensions: | 3.28 x 2.12 x 2.36 in |
| Enclosure: | NEMA 4X/12/IP20 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Multi-Phase Heavy Duty Grounding Standard Single Screw Mount |
| Country of origin: | US |
| Material: | Phenolic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585236469 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1842.90 / 10Each
Typical price:$2820.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock, HBL3769, Locking Receptacle, Multi-Phase Heavy Duty Grounding Standard Single Screw Mount, Series: HBL, 250 V AC/600 V DC, 50 A, 3 Pole, 4 Wires, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Phenolic, Black, 3.28 x 2.12 x 2.36 in Dimensions
HBL3769 Application
Dry Locations and Indoor ApplicationsHBL3769 Item Features
- Armored housing provides superior impact resistance
- Thermoset construction offers high heat resistance
- One piece contacts provide low operating temperatures
- https://youtu.be/1DnPJu3QNw0
HBL3769 Standards
CSA C22.2 No. 42/0.17|RoHS Compliant|UL 94|UL 498|UL94 V-2 Flammability Rating|NEMA WD1/WD5SKU #136631Part Number #HBL3769UNSPSC39121406UPC00783585236469
Image provided may only be a representation of final product and may include optional equipment
