HBL4100B7W

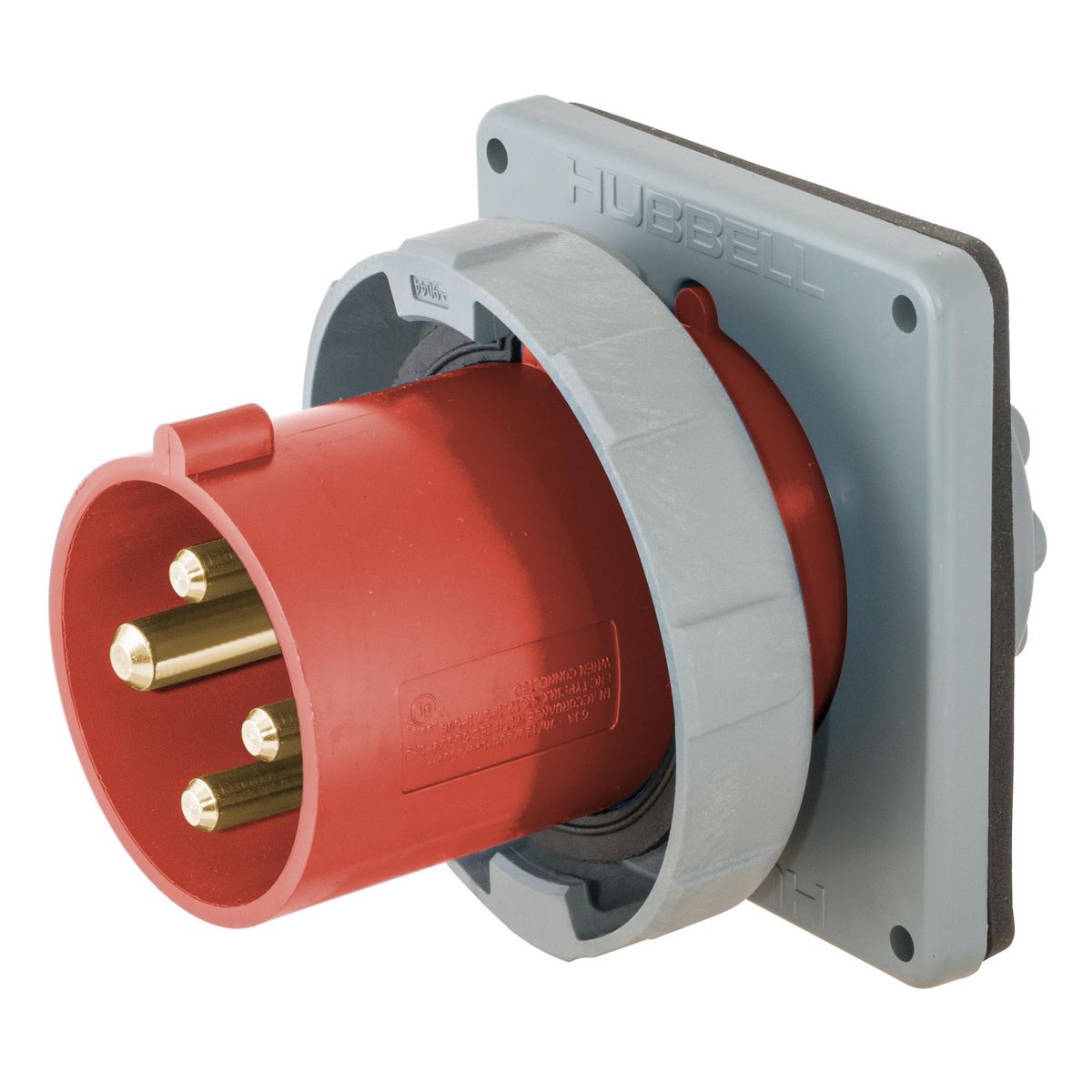

Hubbell HBL4100B7W Pin and Sleeve Inlet
Part Number # HBL4100B7W
SKU # 2291546
$815.71 / Each
Typical price:$1245.00 / Each
Hubbell HBL4100B7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100B7W |
| SKU #: | 2291546 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5-1/2 in H x 5-1/2 in W, 5-1/2 in W x 5-1/2 in H |
| Enclosure: | IP67 |
| Horsepower: | 30, 30 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Flanged Male Single Standard Watertight Screw Mount, Flanged Male Single Standard Watertight |
| Color: | Red |
| Country of origin: | PR |
| Material: | Nylon, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585403946 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$815.71 / Each
Typical price:$1245.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Pin and Sleeve Inlet, 3-Phase Flanged Male Single Standard Watertight Screw Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5-1/2 in W x 5-1/2 in H
HBL4100B7W Application
High Ampacity Watertight Connection ApplicationsHBL4100B7W Item Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
HBL4100B7W Standards
RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498SKU #2291546Part Number #HBL4100B7WUNSPSC39121406UPC00783585403946
