Part Number # HBL4100C12W
SKU # 248023
Image Disclaimers Message
Brand: Hubbell
HBL4100C12W

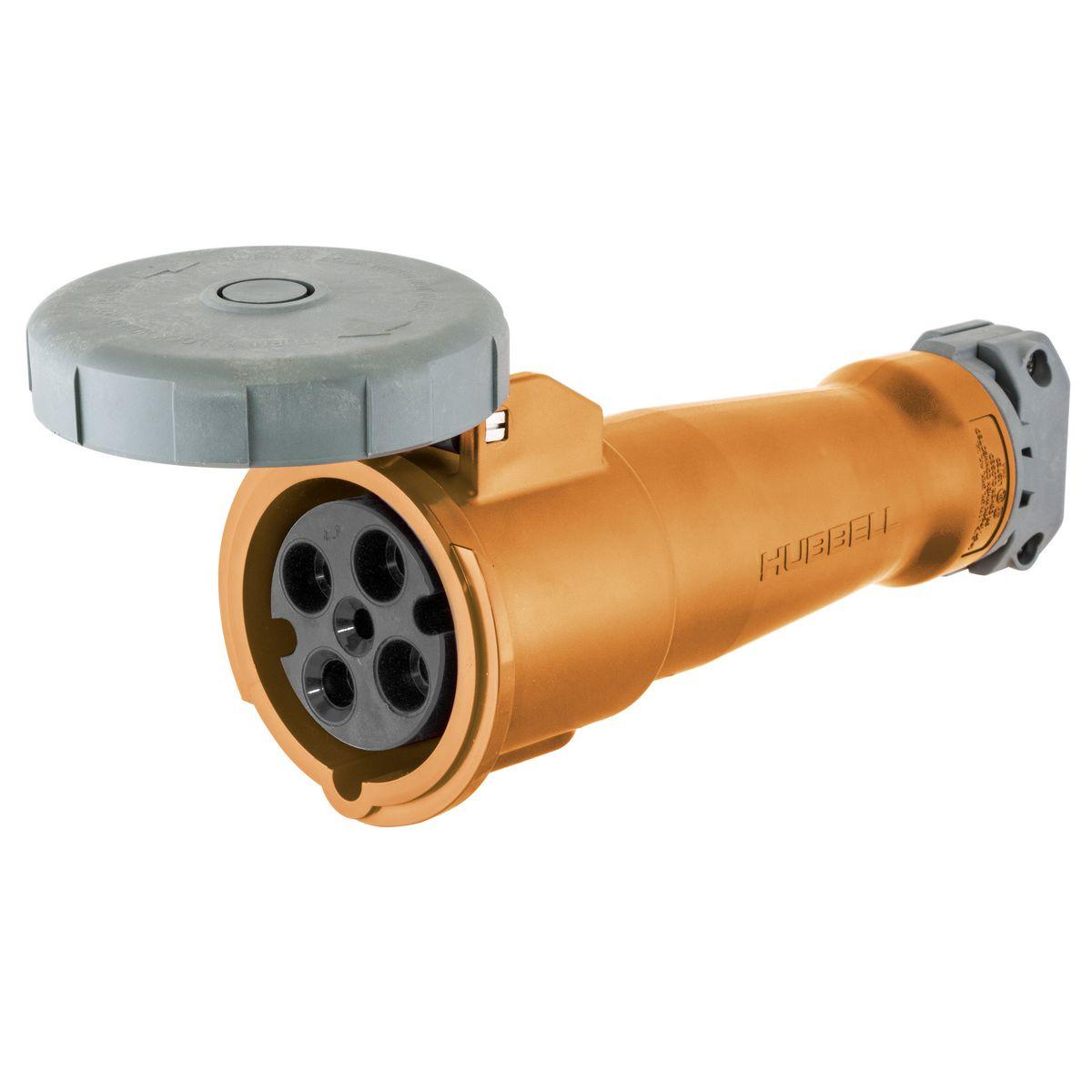

Hubbell HBL4100C12W Pin and Sleeve Connector
Part Number # HBL4100C12W
SKU # 248023
$877.14 / Each
Typical price:$1133.00 / Each
Hubbell HBL4100C12W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100C12W |
| SKU #: | 248023 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 13.57 in H x 5.71 in W, 5.71 in W x 13.57 in H |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | Advantage |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Heavy Duty Standard Watertight, Female Heavy Duty Standard Watertight Cord Mount |
| Color: | Orange |
| Country of origin: | PR |
| Material: | Composite, Composite/Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585403977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$877.14 / Each
Typical price:$1133.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL4100C12W, Pin and Sleeve Connector, Female Heavy Duty Standard Watertight Cord Mount, 125/250 V AC, 100 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 5.71 in W x 13.57 in H Dimensions
HBL4100C12W Application
High Ampacity Connection ApplicationsHBL4100C12W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL4100C12W Standards
RoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-2/60309-1/60309-2|CSA C22.2 No. 182.2SKU #248023Part Number #HBL4100C12WUNSPSC39121421UPC00783585403977
