Part Number # HBL4100C9W
SKU # 2131964
Image provided may only be a representation of
final product and may include optional equipment
HBL4100C9W

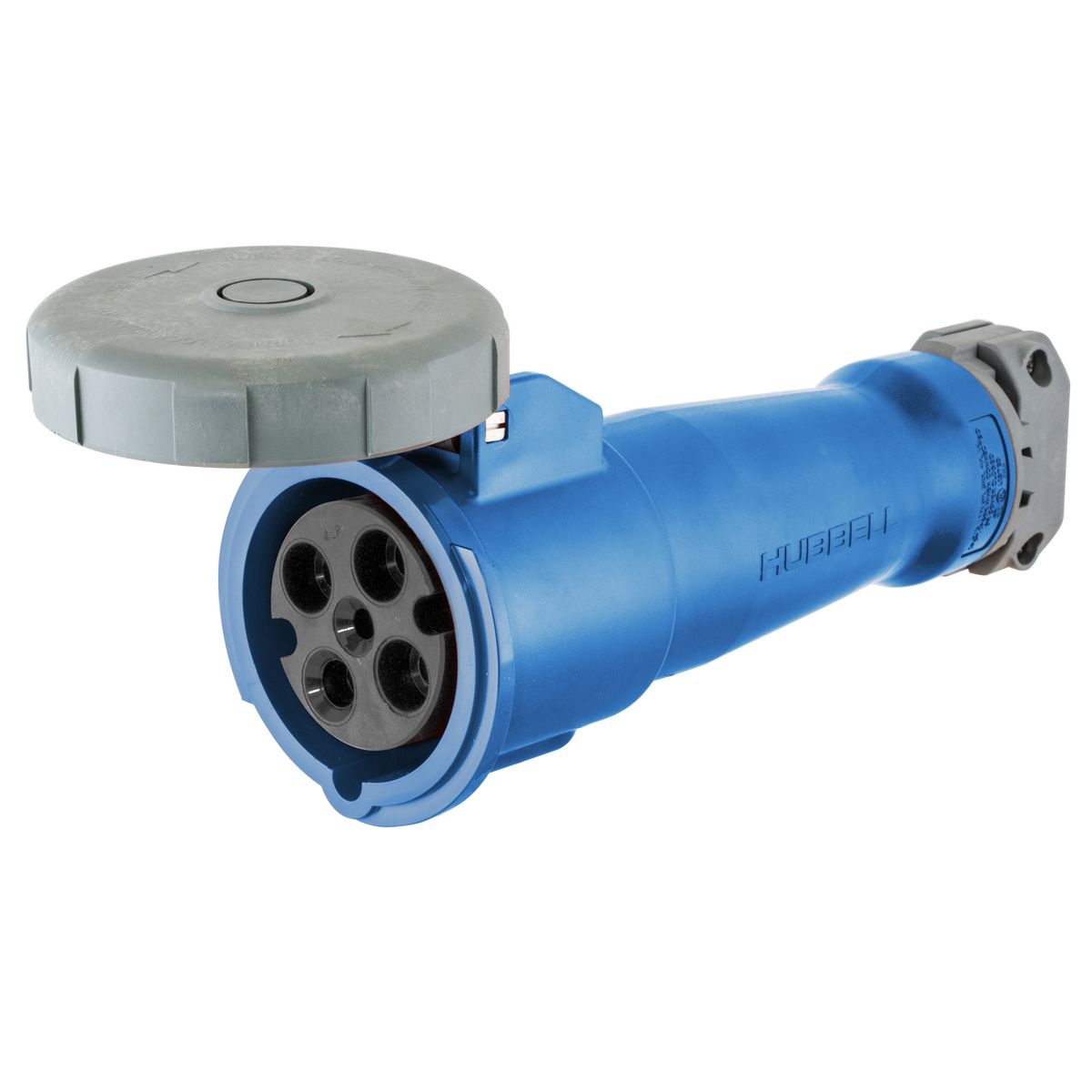

Hubbell HBL4100C9W Pin and Sleeve Connector
Part Number # HBL4100C9W
SKU # 2131964
Hubbell HBL4100C9W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100C9W |
| SKU #: | 2131964 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5.71 in Dia x 13.57 in L |
| Enclosure: | IP67 |
| Horsepower: | 10, 10 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw, Screw |
| Type: | 3-Phase Watertight, 3-Phase Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585404004 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL4100C9W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL4100C9W
Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase Watertight Cord Mount, 250 VAC, 100 A, 10 hp, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 5.71 in Dia x 13.57 in L
Additional Description: HUBW-HBL4100C9W IEC, CONN,3P4W, 100/125A 200-250V,4X/69K W/T
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Watertight
HBL4100C9W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL4100C9W Standards
UL 498|CSA C22.2 No. 182.2, IEC 309-1, IEC 309-2|RoHS CompliantSKU #2131964Part Number #HBL4100C9WUNSPSC39121421UPC00783585404004
