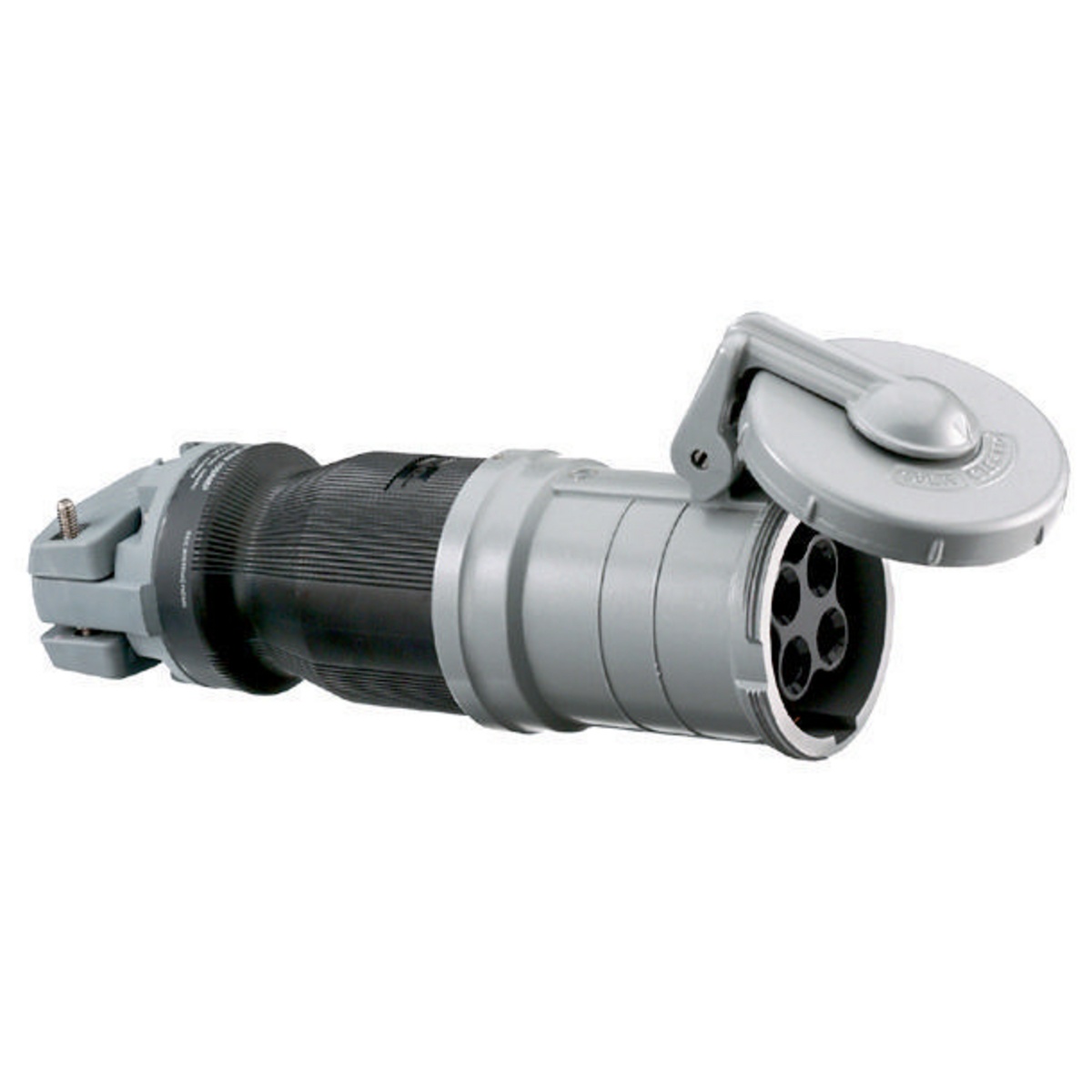

Hubbell HBL4100CS1W Pin and Sleeve Connector
Part Number # HBL4100CS1W
SKU # 140364
$780.00 / Each
Typical price:$1008.00 / Each
Hubbell HBL4100CS1W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100CS1W |
| SKU #: | 140364 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 11.7 in L x 4.5 in W |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Female Heavy Duty Standard Watertight, 3-Phase Female Heavy Duty Standard Watertight Cord Mount |
| Color: | Black/Gray |
| Country of origin: | PR, US |
| Material: | Aluminum/Composite, Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585011042 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$780.00 / Each
Typical price:$1008.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL4100CS1W, Pin and Sleeve Connector, 3-Phase Female Heavy Duty Standard Watertight Cord Mount, 600 V AC/250 V DC, 100 A, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 11.7 in L x 4.5 in W Dimensions
HBL4100CS1W Application
High Ampacity Connection ApplicationsHBL4100CS1W Item Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- https://youtu.be/1DnPJu3QNw0
HBL4100CS1W Standards
UL1686|UL 1682/1686/50/1010/498|CSA C22.2 No. 182.1/94/159SKU #140364Part Number #HBL4100CS1WUNSPSC39121421UPC00783585011042
