Part Number # HBL4100CS2W
SKU # 2155122

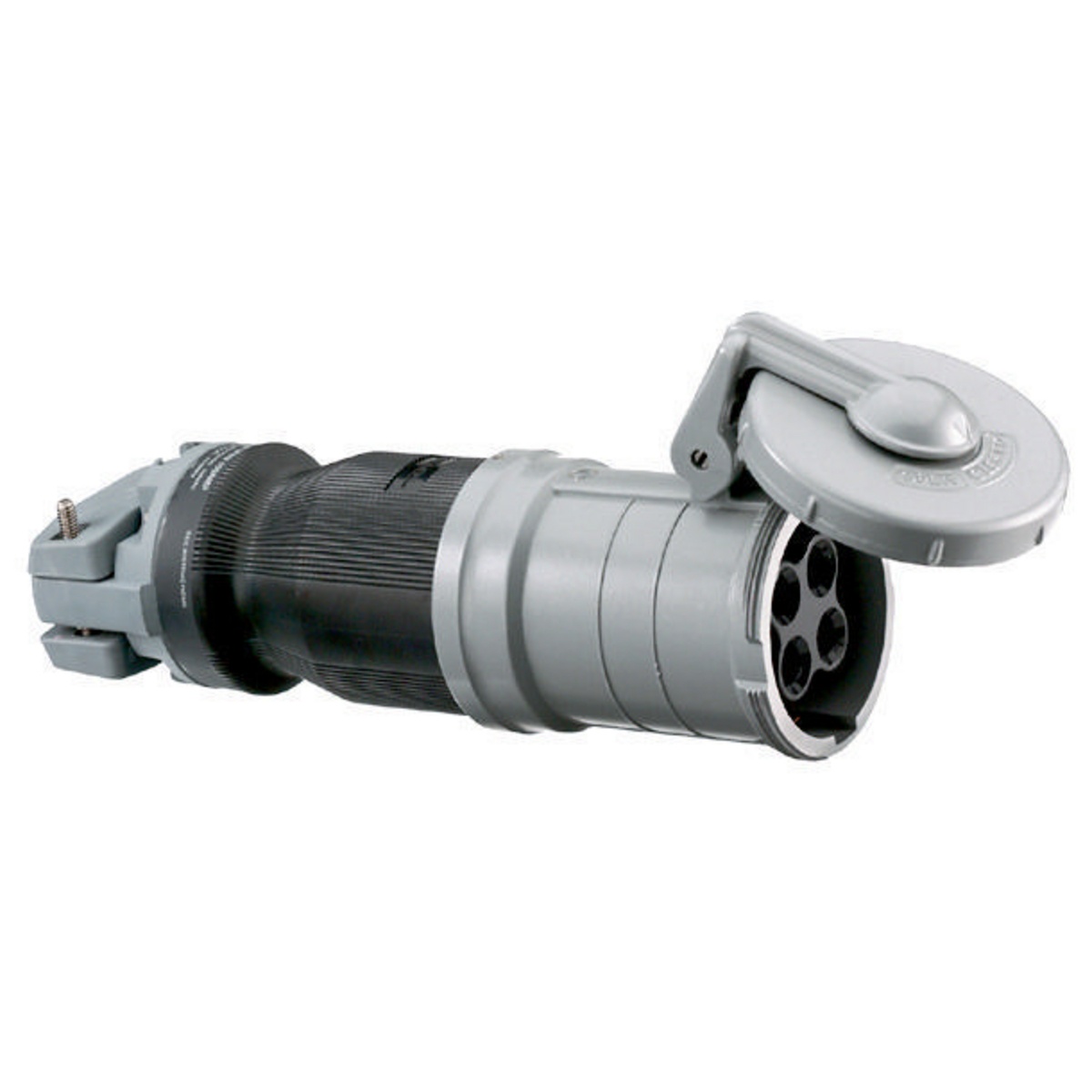

Image provided may only be a representation of
final product and may include optional equipment
HBL4100CS2W
Hubbell HBL4100CS2W Pin and Sleeve Connector
Part Number # HBL4100CS2W
SKU # 2155122
Hubbell HBL4100CS2W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100CS2W |
| SKU #: | 2155122 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 11.7 in L x 4.7 in W |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Female Heavy Duty Standard Watertight, 3-Phase Female Heavy Duty Standard Watertight Cord Mount |
| Country of origin: | PR |
| Material: | Aluminum/Composite, Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585011103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL4100CS2W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL4100CS2W
Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase Female Heavy Duty Standard Watertight Cord Mount, 600 VAC/250 VDC, 100 A, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 11.7 in L x 4.7 in W
Additional Description: HUBW-HBL4100CS2W PS, INS, CONN, 3P4W, 100A 600V, S2 2
Catalog Description: Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 600V AC, 3-Pole 4-Wire Grounding Style 2, Terminal Screws Gray and Black
HBL4100CS2W Application
High Ampacity Connection ApplicationsHBL4100CS2W Item Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- https://youtu.be/1DnPJu3QNw0
HBL4100CS2W Standards
UL 498|UL1686|UL 1682|CSA C22.2 File No. 182.1SKU #2155122Part Number #HBL4100CS2WUNSPSC39121421UPC00783585011103
