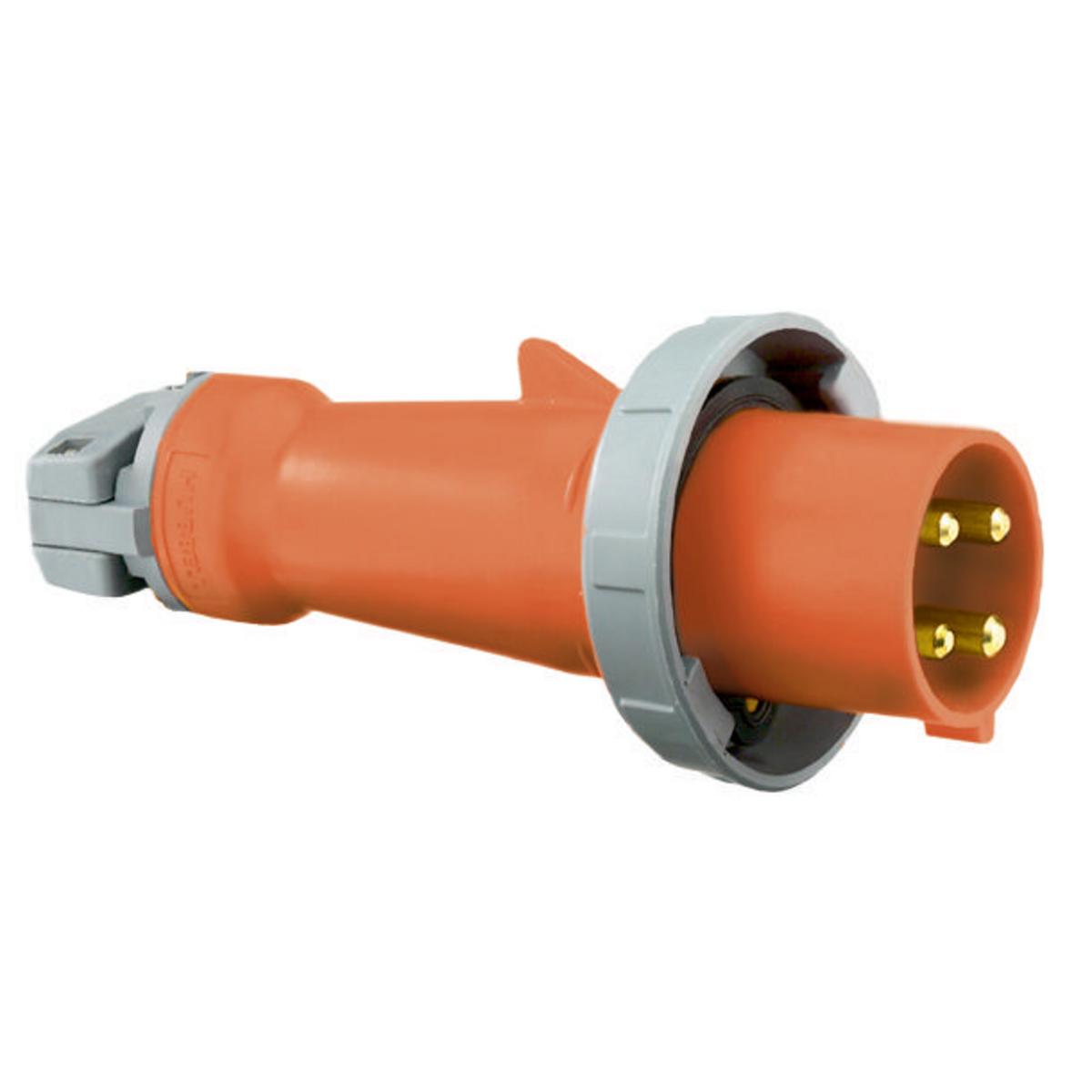

Hubbell HBL4100P12W Pin and Sleeve Plug
Image Disclaimers Message
Hubbell HBL4100P12W Pin and Sleeve Plug
Hubbell HBL4100P12W Pin and Sleeve Plug
Part #:HBL4100P12W
SKU #: 2242692
Key Features
Part #:HBL4100P12W
SKU #: 2242692
Brand: Hubbell
Amperage Rating: 100, 100 A
Dimensions: 4.92 in Dia x 12.63 in L
Enclosure: IP67
Horsepower: 15, 15 hp
Number of Poles: 3
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- All portable cord
- 3 to 1/0 AWG wire size
- Cord mounted
- Non-NEMA rating
- Solid 1-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
- Nickel plated brass clamp nut
- Stainless steel terminal screws, assembly screws, cord clamp screws
- High impact thermoset contact carrier and retainer
- Rynite SST35 lock ring, cord clamps, gland cap
- Watertight per IEC 60309-1 moisture resistance
Hubbell HBL4100P12W Pin and Sleeve Plug
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount, 125/250 VAC, 100 A, 15 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 4.92 in Dia x 12.63 in L
Additional Description: HUBW-HBL4100P12W PS,IEC, PLUG, 3P4W, 100A 125/250V,4X/69K
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight
