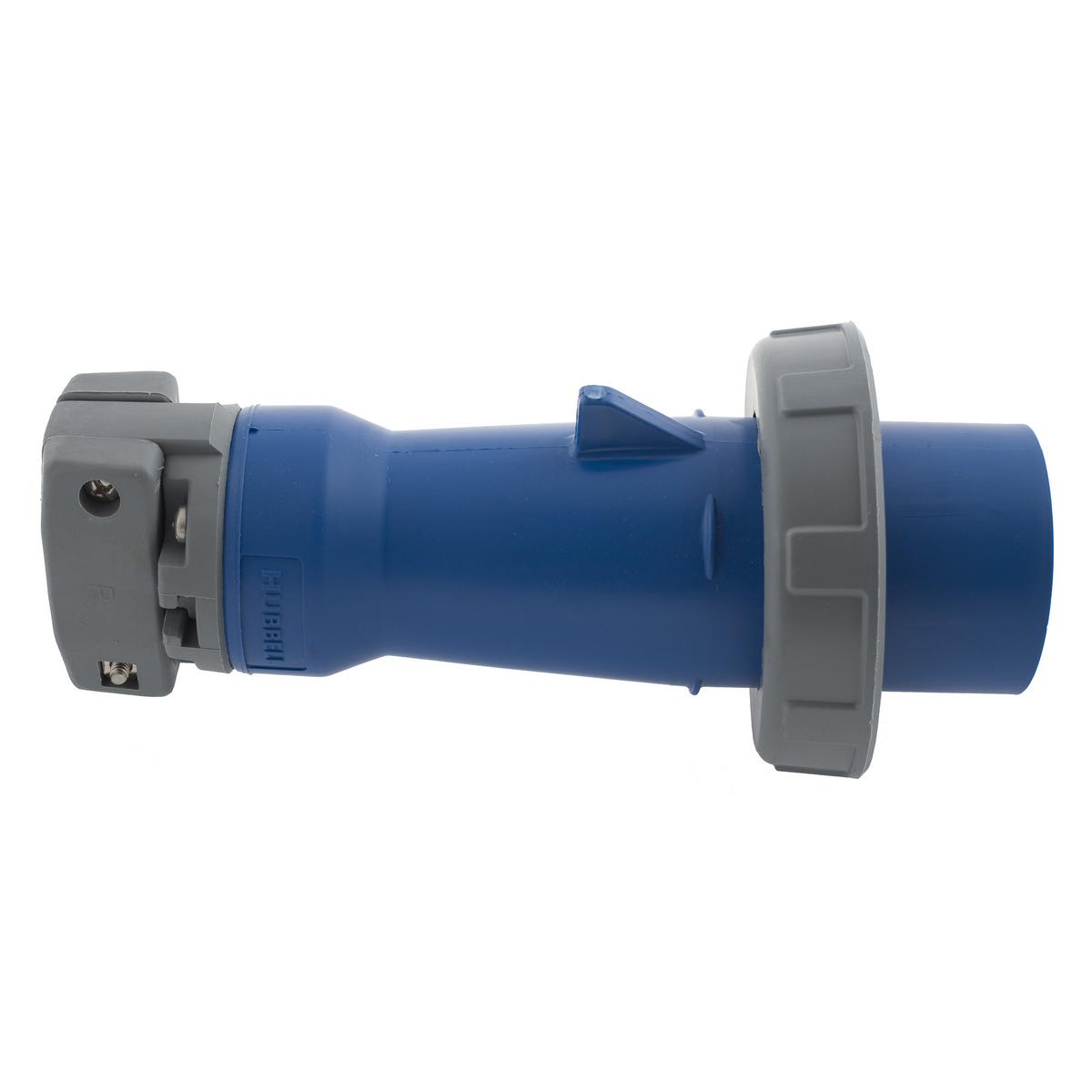

Hubbell HBL4100P9W Pin and Sleeve Plug
Hubbell HBL4100P9W Pin and Sleeve Plug
Part #:HBL4100P9W
SKU #: 44538
Key Features
Part #:HBL4100P9W
SKU #: 44538
Brand: Hubbell
Amperage Rating: 100, 100 A
Dimensions: 4.92 in Dia x 12.63 in L
Enclosure: IP67
Number of Poles: 3
Number of Wires: 4
- Non-metallic, watertight and abuse resistant
- 300 series stainless steel terminal assembly and cord clamp screws nickel plated brass clamp nut
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
- Watertight per IEC 60309-1 moisture resistance
- 3 to 1/0 AWG wire size
- Non-NEMA rating
- All portable cord
- Cord mounted, 4-wire grounding
- 1.065 to 1.94 in cord clamp range
- Zytel 801 nylon housing, Rynite SST35 cord clamps, gland cap and locking ring, high impact thermoset contact carrier and retainer and brass ground/phase pins
- Dielectric withstand voltage 3000 VAC minimum
Hubbell HBL4100P9W Pin and Sleeve Plug
Wiring Device-Kellems Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 250 VAC, 100 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 4.92 in Dia x 12.63 in L
Additional Description: HUBW-HBL4100P9W PS, PLUG,3P4W, 100/125A 200-250V,4X/69K 200-250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Delta 250V AC, 3- Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
