Part Number # HBL4100R5W
SKU # 2265251
Image Disclaimers Message
Brand: Hubbell
HBL4100R5W

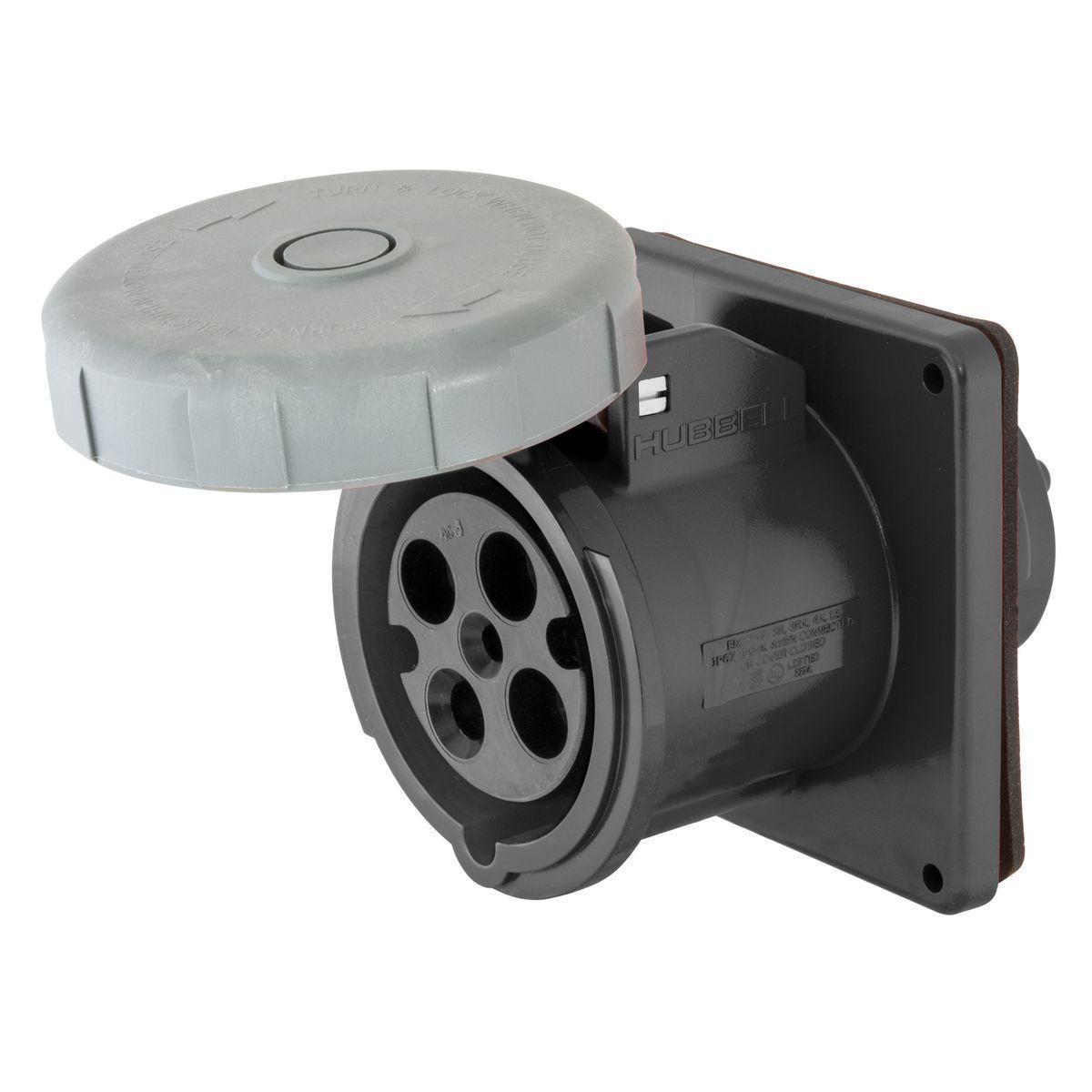

Hubbell HBL4100R5W Pin and Sleeve Receptacle
Part Number # HBL4100R5W
SKU # 2265251
$642.86 / Each
Typical price:$831.00 / Each
Hubbell HBL4100R5W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100R5W |
| SKU #: | 2265251 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5.5 in W x 4.23 in D x 5.71 in H, 5.71 in H x 5.5 in W x 4.23 in D |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight, 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount |
| Color: | Black |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404097 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$642.86 / Each
Typical price:$831.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount, 600 V AC, 100 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black, 5.5 in W x 4.23 in D x 5.71 in H
HBL4100R5W Application
High Ampacity Watertight Connection ApplicationsHBL4100R5W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL4100R5W Standards
UL 498|UL 1682|UL 1686C2 File No. E146032/E146033|IEC 309-1/309-2|CSA File No. LR280C, LR285C|CSA C22.2 File No. 182.2|RoHS CompliantSKU #2265251Part Number #HBL4100R5WUNSPSC39121406UPC00783585404097
