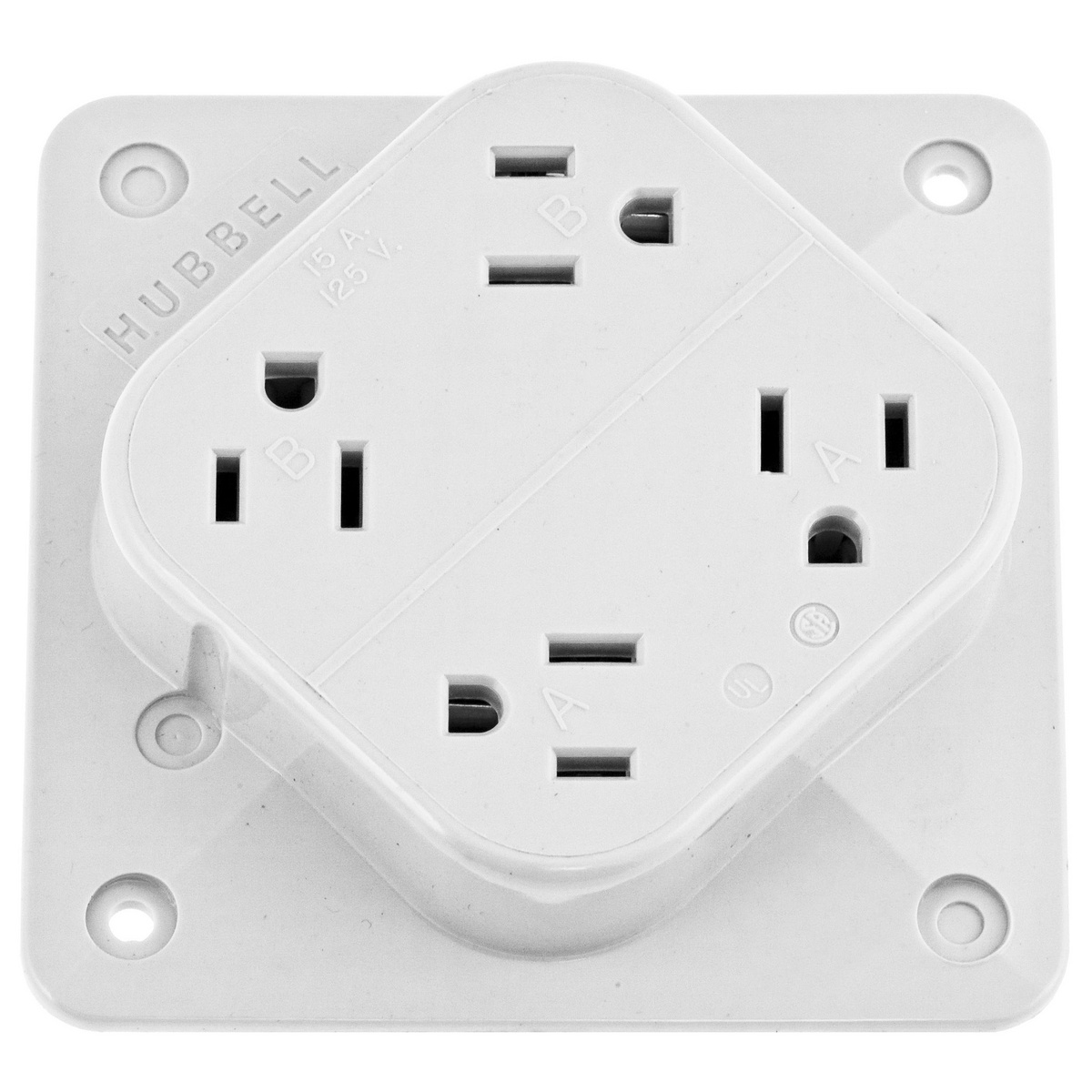

Hubbell HBL415W Wiring Device-Kellems 4-PLEX Straight Blade Receptacle
Part Number # HBL415W
SKU # 2400287
$31.36 / Each
Hubbell HBL415W Key Features
Brand: Hubbell
Part Number # HBL415W
SKU #2400287
Amperage Rating: 15 A
Dimensions: 4.3 in H, 4.3 x 0.92 x 4.3 in
Horsepower: 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screw
Type: 1-Phase 4-in-1 Grounding Standard Screw Mount, 1-Phase Grounding Standard
Voltage Rating: 125 VAC
Color: White
Country of origin: PR, US
Material: Composite/Thermoplastic, Polycarbonate
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585014517
$31.36 / Each
- Wiring Device-Kellems, HBL415W, Straight Blade Receptacle, 1-Phase 4-in-1 Grounding Standard Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Polycarbonate, White, 4.3 x 0.92 x 4.3 in Dimensions
HBL415W Application
Dry Location and Indoor ApplicationsHBL415W Item Features
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
HBL415W Standards
RoHS Compliant|CSA Certified|NEMA WD1/WD5|UL 94 V-2 Flammability Rating|UL 498 File No. E2186|CSA C22.2 No. 42 File No. 285SKU #2400287Part Number #HBL415WUNSPSC39121406UPC00783585014517
