- Self-closing gasketed cover
- Super tough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- Sequential contact engagement to prevent a momentary over-voltage
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Withstands 3000 VAC dielectric voltage
- Reinforced thermoplastic polyester covers and cord clamps
- Solid neoprene gaskets and glands
- 14 to 10 AWG copper terminal accommodation
Specifications
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3.66 in Dia x 7.9 in L
Enclosure: IP67
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: Female Grounding Watertight, Female Grounding Watertight Cord Mount
Voltage Rating: 600, 600 VAC
Color: Black
Country of origin: PR
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121421
UPC: 00783585404301

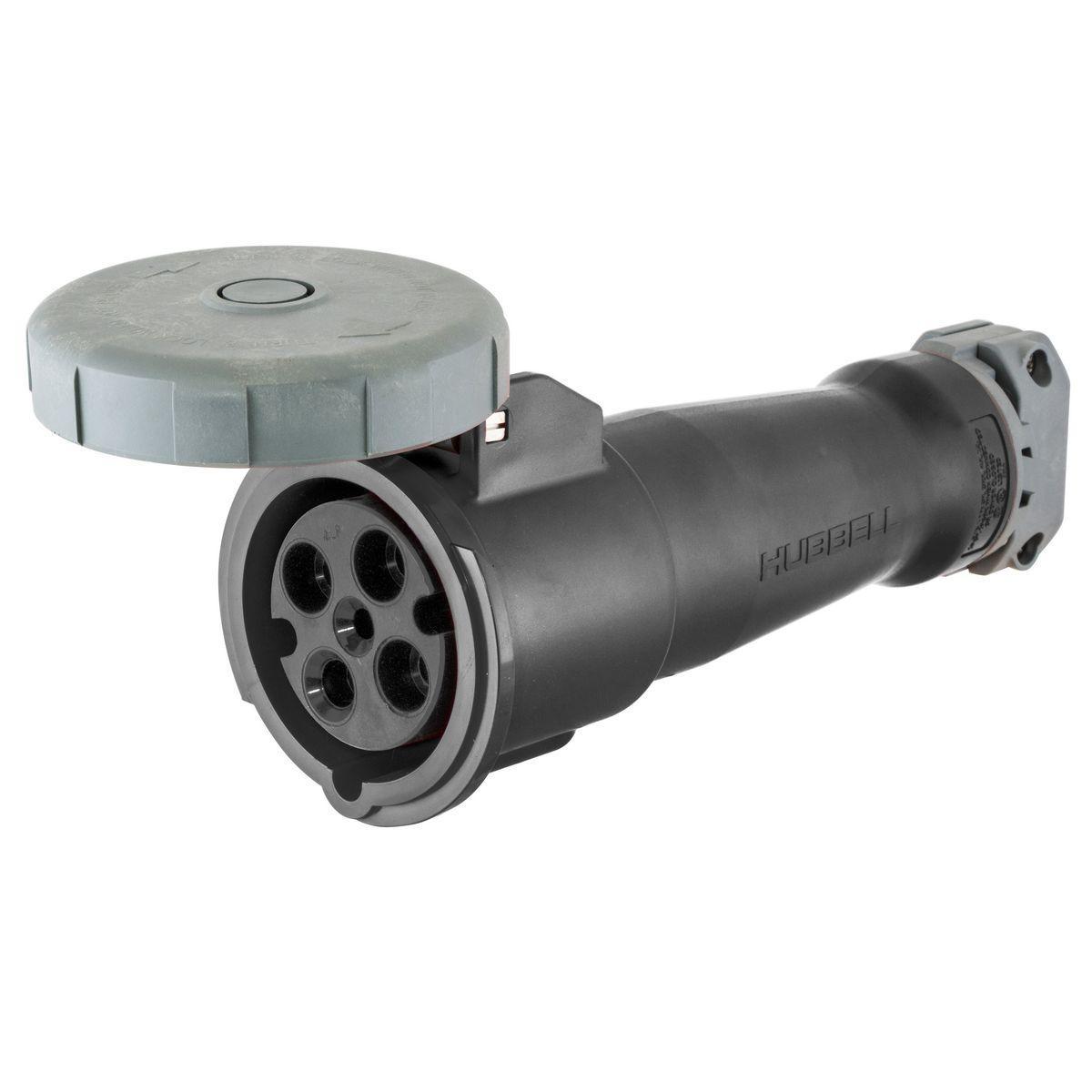

Hubbell HBL420C5W Pin and Sleeve Connector
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 600 VAC, 20 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 3.66 in Dia x 7.9 in L
Additional Description: HUBW-HBL420C5W PS, IEC, CONN, 3P4W, 20A 3P 600V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Item FeaturesHigh Ampacity Connections
Item Features
Item FeaturesUL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C|RoHS Compliant
