Part Number # HBL420HI
SKU # 2350573
HBL420HI

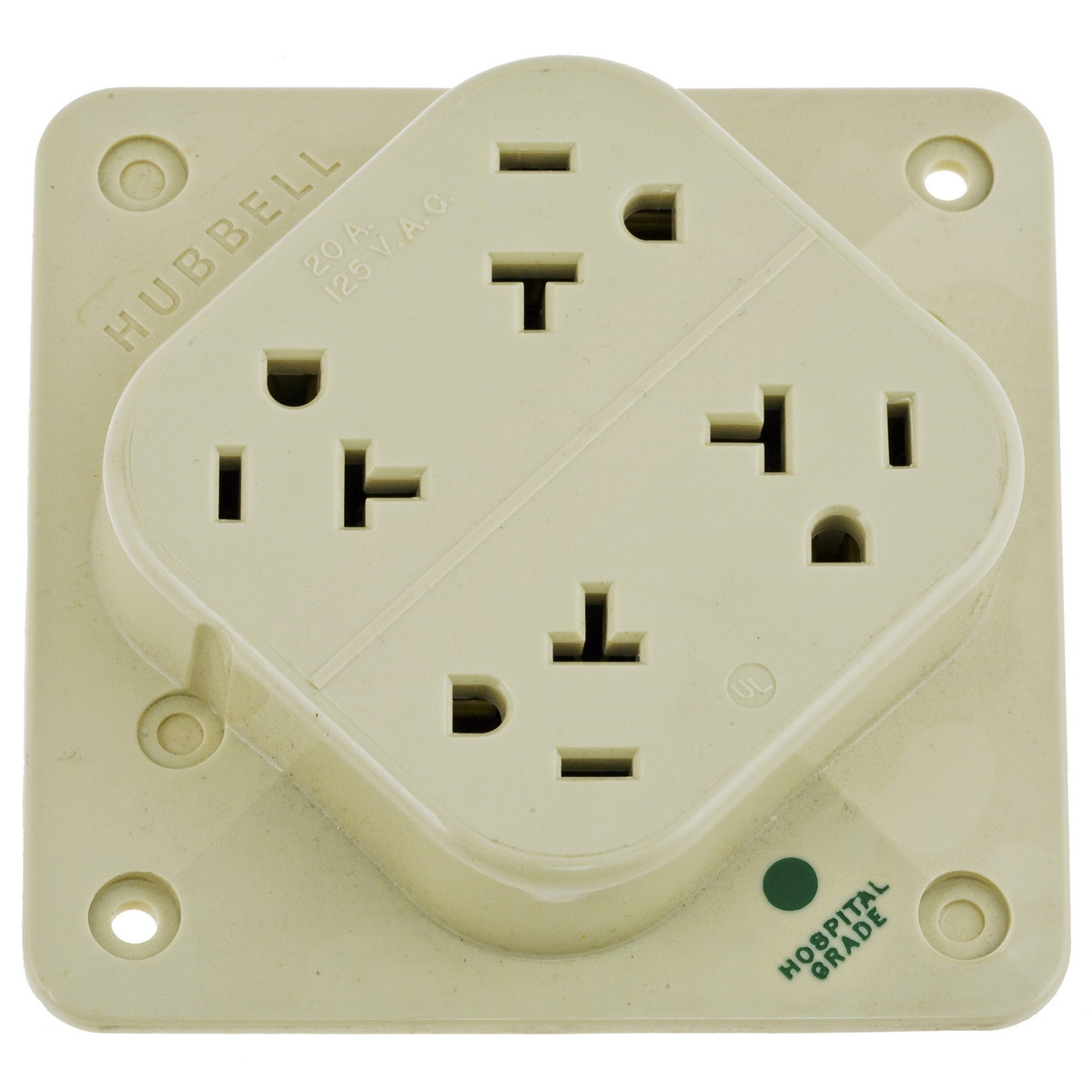

Hubbell HBL420HI Straight Blade Receptacle
Part Number # HBL420HI
SKU # 2350573
$218.55 / 5Each
Typical price:$282.50 / Each
Hubbell HBL420HI Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL420HI |
| SKU #: | 2350573 |
| Amperage Rating: | 20 A |
| Dimensions: | 4.3 x 4.3 x 0.92 in |
| Horsepower: | 1 hp |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back Wired/Screw |
| Type: | 1-Phase 4-in-1 Grounding Standard Screw Mount |
| Country of origin: | US |
| Material: | Polycarbonate |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585015774 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$218.55 / 5Each
Typical price:$282.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems 4-PLEX, HBL420HI, Straight Blade Receptacle, 1-Phase 4-in-1 Grounding Standard Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back Wired/Screw Terminal, Polycarbonate, Ivory, 4.3 x 4.3 x 0.92 in Dimensions
HBL420HI Application
Dry Location and Indoor ApplicationsHBL420HI Item Features
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
- Triple wipe contacts
- Anchor hole and loop feature secures solid wire for fast, easy terminations
HBL420HI Standards
UL 498 File No. E2186|CSA C22.2 No. 42 File No. 285|RoHS Compliant|CSA Certified|NEMA WD1/WD5|UL 94 V-2 Flammability RatingSKU #2350573Part Number #HBL420HIUNSPSC39121406UPC00783585015774
Image provided may only be a representation of final product and may include optional equipment
