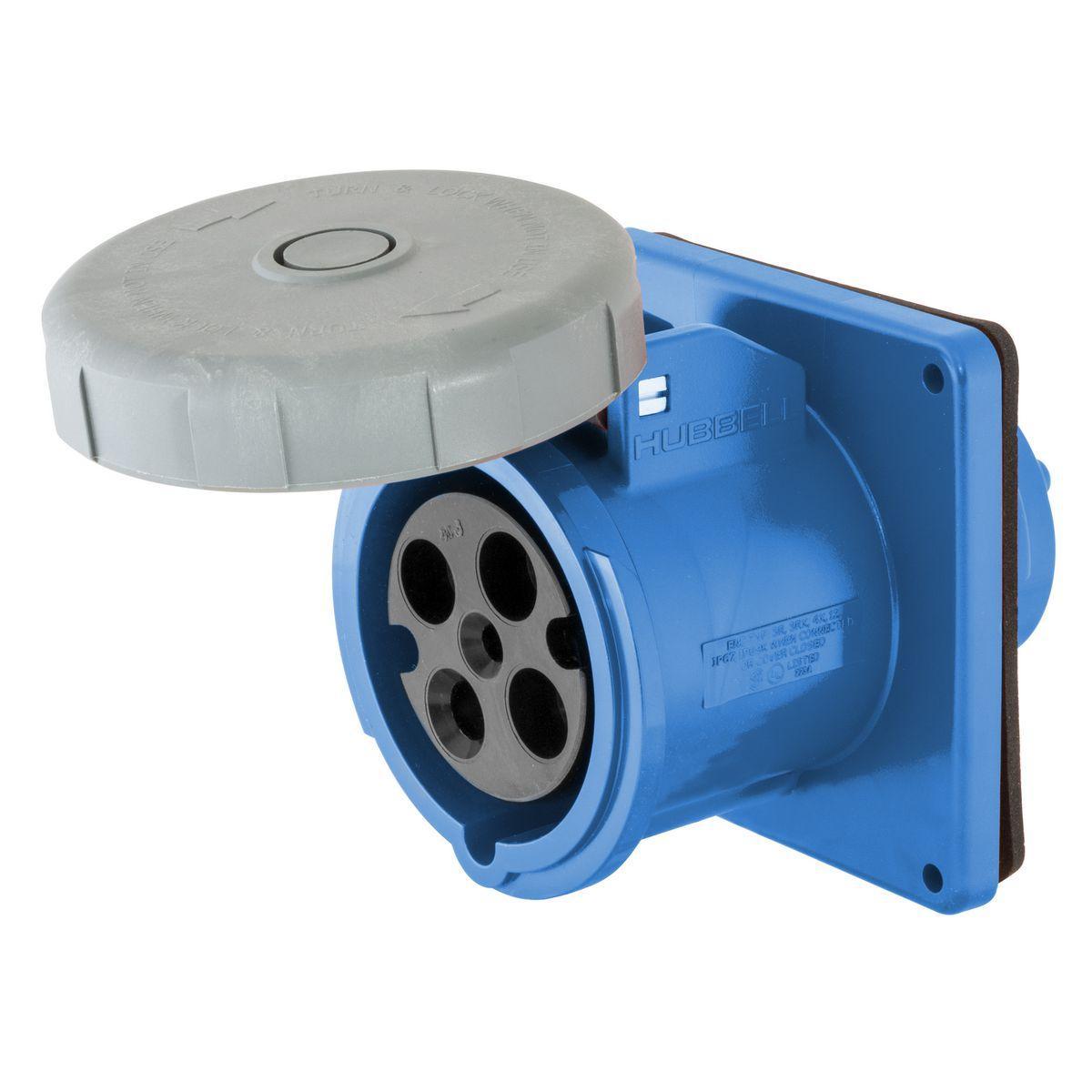

Hubbell HBL420R9W Pin and Sleeve Receptacle
Hubbell HBL420R9W Pin and Sleeve Receptacle
Part #:HBL420R9W
SKU #: 2150329
Key Features
Part #:HBL420R9W
SKU #: 2150329
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3-3/4 in L x 3-3/4 in W
Enclosure: IP67
Number of Poles: 3
Number of Wires: 4
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Amperage/voltage rating and catalog number molded-in housing for easy identification
- Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
- Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
- Super tough plug shroud protects pins from deforming from physical abuse
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Molded thermoset polyester provides high resistance to electrical tracking
- Withstands higher temperatures which may result from overload or arcing
- Thermoset properties provide dimensional stability for this critical assembly
- Feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
Hubbell HBL420R9W Pin and Sleeve Receptacle
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 250 VAC, 20 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 3-3/4 in L x 3-3/4 in W
Additional Description: HUBW-HBL420R9W PS, RCPT,3P4W, 16/20A 200-250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
