Part Number # HBL430B7W
SKU # 2291547
HBL430B7W

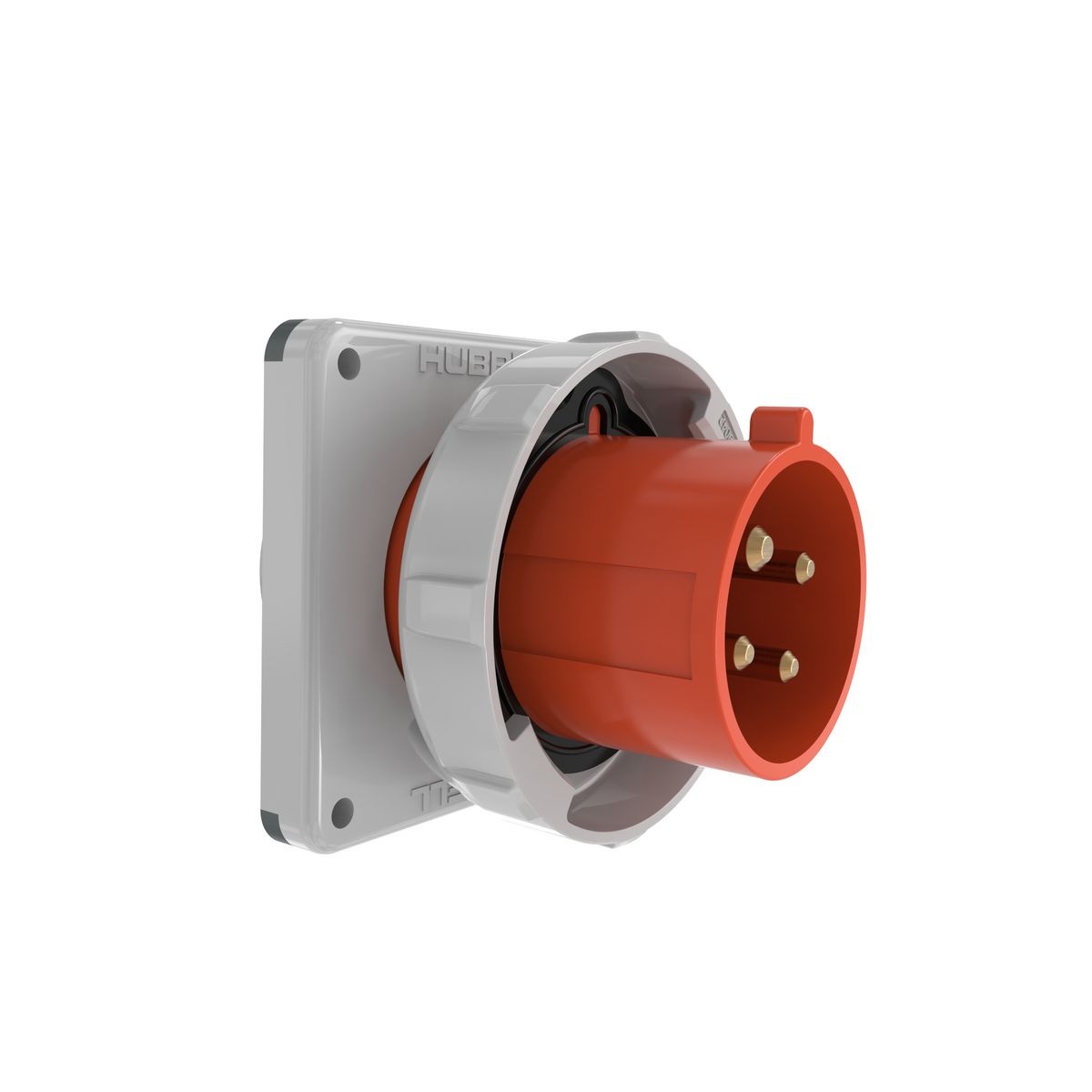

Hubbell HBL430B7W Pin and Sleeve Inlet
Part Number # HBL430B7W
SKU # 2291547
Hubbell HBL430B7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430B7W |
| SKU #: | 2291547 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3-3/4 in H x 3-3/4 in W, 3-3/4 in W x 3-3/4 in H |
| Enclosure: | IP67 |
| Horsepower: | 7-1/2, 7.5 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight, 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430B7W Pin and Sleeve Inlet
Brand: Hubbell
Part Number: HBL430B7W
Wiring Device-Kellems Pin and Sleeve Inlet, 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount, 480 VAC, 30 A, 7.5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 3-3/4 in W x 3-3/4 in H
Additional Description: HUBW-HBL430B7W PS, IEC, INLET, 3P4W, 30A 3P 480V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
HBL430B7W Application
High Ampacity Watertight Connection ApplicationsHBL430B7W Item Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- https://youtu.be/1UAS5Og-mD4
HBL430B7W Standards
RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498SKU #2291547Part Number #HBL430B7WUNSPSC39121406UPC00783585404479
Image provided may only be a representation of final product and may include optional equipment
