Part Number # HBL430C7W
SKU # 125293
Image Disclaimers Message
Brand: Hubbell
HBL430C7W

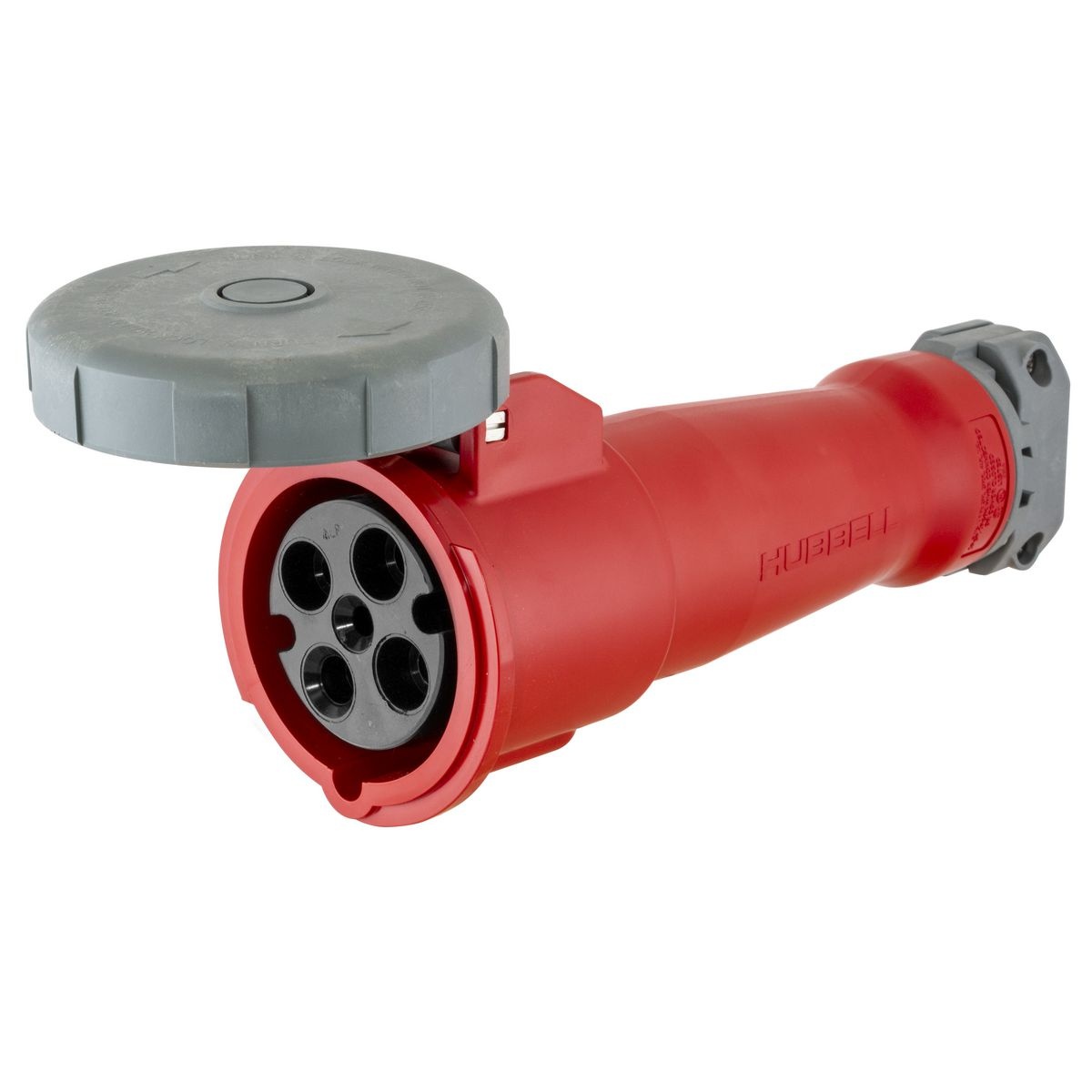

Hubbell HBL430C7W Pin and Sleeve Connector
Part Number # HBL430C7W
SKU # 125293
$372.86 / Each
Typical price:$482.00 / Each
Hubbell HBL430C7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430C7W |
| SKU #: | 125293 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 4.27 in Dia x 9.05 in L |
| Enclosure: | IP67 |
| Horsepower: | 7-1/2, 7.5, 7.5 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Insulated Watertight, Female Insulated Watertight Cord Mount |
| Color: | Red |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585404523 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$372.86 / Each
Typical price:$482.00 / Each
Quantity:
Hubbell HBL430C7W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL430C7W
Wiring Device-Kellems Pin and Sleeve Connector, Female Insulated Watertight Cord Mount, 30 A, 7.5 hp, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 4.27 in Dia x 9.05 in L
Additional Description: HUBW-HBL430C7W PS, IEC, CONN, 3P4W, 30A 3P 480V,4X/69K
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
HBL430C7W Application
High Ampacity ConnectionsHBL430C7W Item Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
HBL430C7W Standards
UL 498|IEC 309-1/309-2|RoHS CompliantSKU #125293Part Number #HBL430C7WUNSPSC39121421UPC00783585404523
