Part Number # HBL430MI5W
SKU # 2281117
Image provided may only be a representation of
final product and may include optional equipment
HBL430MI5W

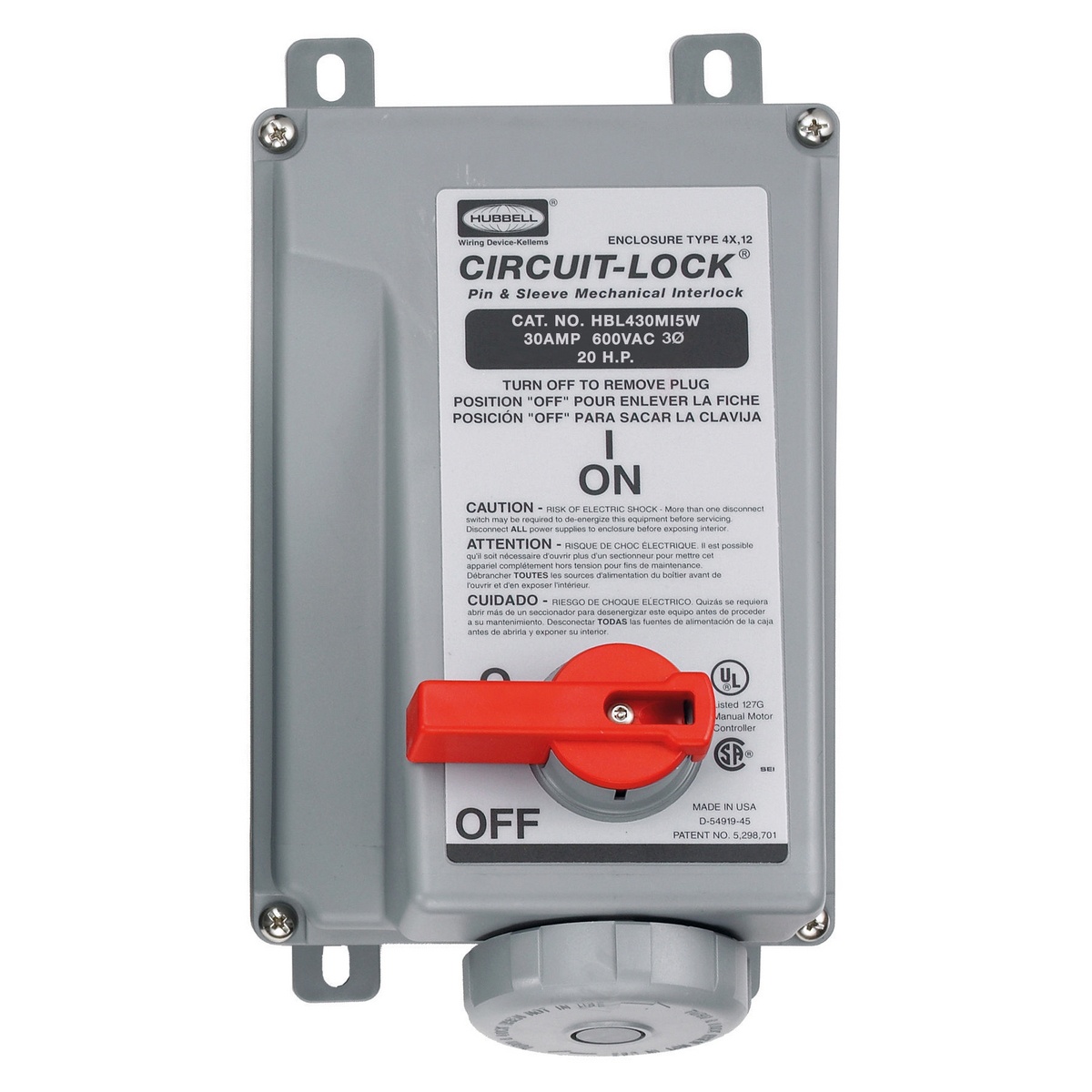

Hubbell HBL430MI5W Mechanical Interlock Device
Part Number # HBL430MI5W
SKU # 2281117
Hubbell HBL430MI5W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430MI5W |
| SKU #: | 2281117 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 11 in H x 8-3/4 in W, 8-3/4 in W x 11 in H |
| Enclosure: | NEMA 4X/12/IP67 |
| Hub Size: | 1 in |
| Mounting: | Threaded |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Type: | 3-Phase Female Grounding Non-NEMA Standard Watertight, 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal |
| Country of origin: | PR |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585405964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430MI5W Mechanical Interlock Device
Brand: Hubbell
Part Number: HBL430MI5W
Wiring Device-Kellems Mechanical Interlock Device, 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal, 600 VAC, 30 A, 18000 W Power, 3 Pole, 4 Wires, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Black, 8-3/4 in W x 11 in H
Additional Description: HUBW-HBL430MI5W PS, IEC, MECHINT, 3P4W, 30A 3P 600V, W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws
HBL430MI5W Application
High Ampacity Watertight Connection ApplicationsHBL430MI5W Item Features
- Large gears enclosed in a gear box
- Lockable handle
- Pre-wired IEC Pin and Sleeve receptacle
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL430MI5W Standards
UL 498|IEC 309-1/309-2|CSA CertifiedSKU #2281117Part Number #HBL430MI5WUNSPSC39121406UPC00783585405964
